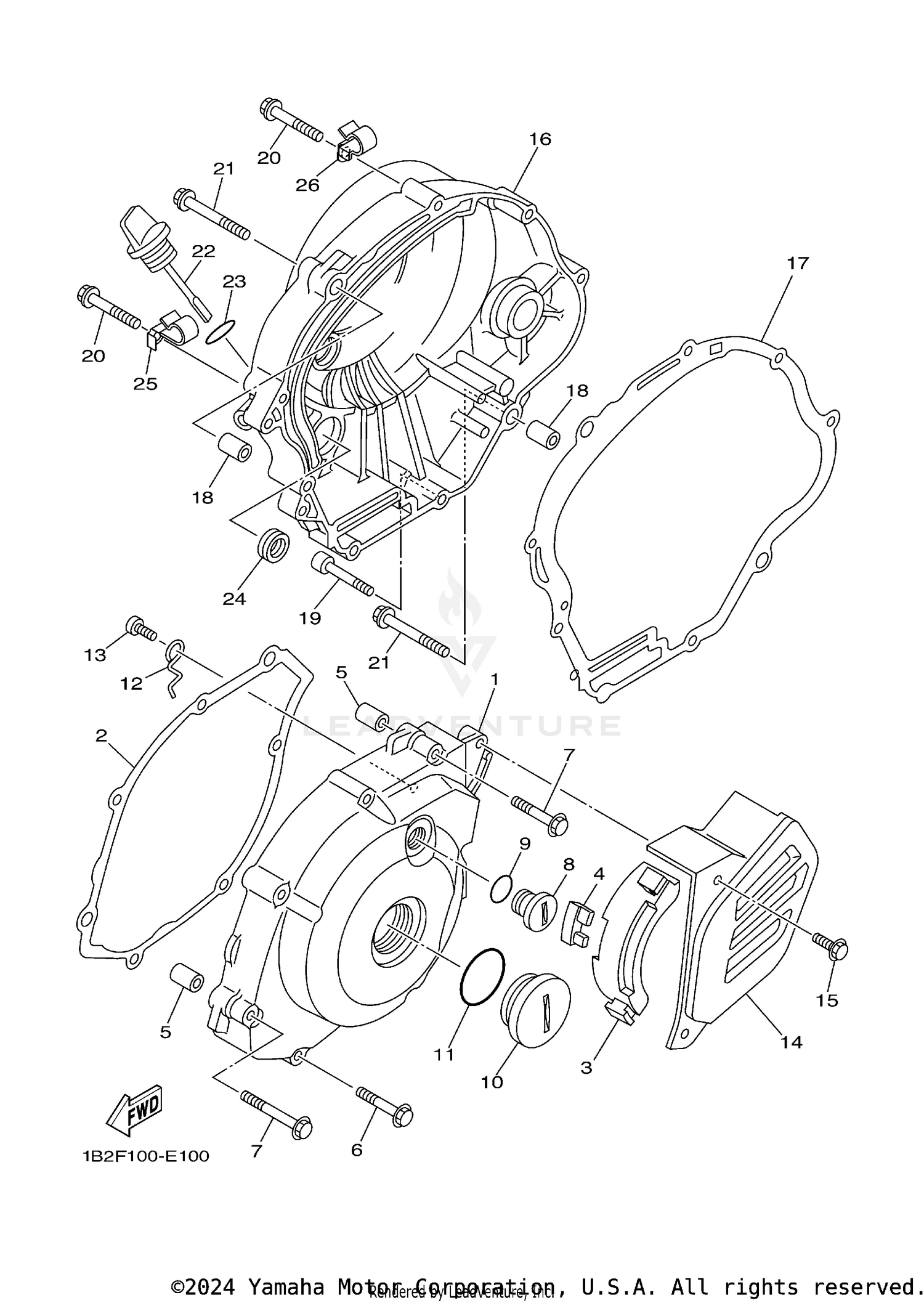

| Ref | Part Number | Description |
|---|
| 2 |
5HH-E5451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $4.30 |
| 3 |
1B2-E5377-00-00 |
GUIDE, INLET Price: $4.60 |
| 4 |
1B2-E5316-00-00 |
DAMPER 1 Price: $2.35 |
| 5 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 6 |
95027-06035-00 |
BOLT, FLANGE This part replaces 9502M-06035-00. Price: $2.40 |
| 7 |
95027-06045-00 |
BOLT, FLANGE This part replaces 9502M-06045-00. Price: $3.55 |
| 8 |
90340-14W06-00 |
PLUG, STRAIGHT SCREW Price: $10.49 |
| 9 |
93210-14369-00 |
O-RING This part replaces 93210-14800-00. Price: $8.49 |
| 10 |
90340-32123-00 |
PLUG, STRAIGHT SCREW This part replaces 90340-32W07-00. Price: $25.99 |
| 11 |
93210-32172-00 |
O-RING This part replaces 93210-32800-00. Price: $8.49 |
| 12 |
5HH-E5191-00-00 |
PLATE Price: $1.05 |
| 13 |
9851M-06010-00 |
SCREW, PAN HEAD Price: $1.85 |
| 15 |
95817-06016-00 |
BOLT, FLANGE This part replaces 9581M-06016-00. Price: $1.95 |
| 17 |
5HH-E5461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $8.49 |
| 18 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 19 |
91380-06035-00 |
BOLT Price: $4.05 |
| 20 |
95027-06035-00 |
BOLT, FLANGE This part replaces 9502M-06035-00. Price: $2.40 |
| 21 |
95027-06045-00 |
BOLT, FLANGE This part replaces 9502M-06045-00. Price: $3.55 |
| 22 |
5HH-E5362-00-00 |
PLUG, OIL LEVEL Price: $7.49 |
| 23 |
93210-19123-00 |
O-RING Price: $8.99 |
| 24 |
93101-10142-00 |
OIL SEAL This part replaces 93101-10800-00. Price: $9.49 |
| 25 |
90465-08043-00 |
CLAMP Price: $12.49 |
