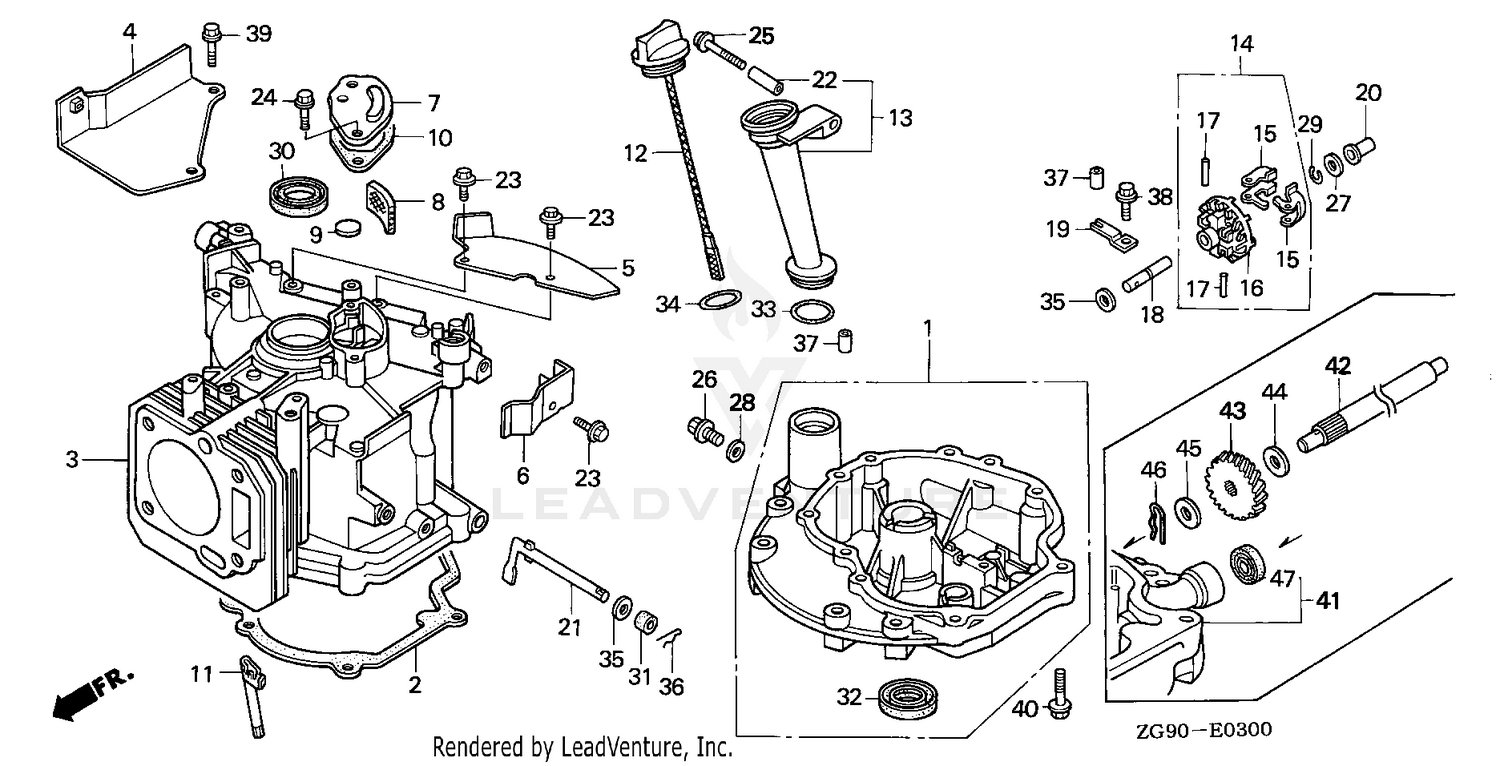

| Ref | Part Number | Description |
|---|
| 1 |
11300-ZG9-U70 |
PAN ASSY., OIL (KARCHER) Price: $104.64 |
| 2 |
11381-ZG9-T00 |
SEE PART DETAILS - PRI; GASKET, OIL PAN (HPE) (Honda Code 4224259). Price: $11.58 |
| 3 |
12100-ZG9-415 |
SEE PART DETAILS - PRI; CYLINDER Price: $179.94 |
| 4 |
12125-ZG9-000 |
PLATE, GUIDE Price: $10.52 |
| 5 |
12126-ZG9-M30 |
PLATE A, GUIDE Price: $1.36 |
| 7 |
12360-ZE6-000 |
CAP, BREATHER CHAMBER (Honda Code 1662535). Price: $9.20 |
| 8 |
12367-ZE6-010 |
SEE PART DETAILS - PRI; FILTER, BREATHER (Honda Code 2794402). Price: $3.24 |
| 9 |
12372-879-000 |
VALVE, BREATHER (Honda Code 0452151). Price: $2.52 |
| 10 |
12373-ZE6-000 |
GASKET, BREATHER CHAMBER (Honda Code 1452622). Price: $2.80 |
| 11 |
12385-ZE6-000 |
PIPE, OIL DEFENSE (Honda Code 1825702). Price: $5.48 |
| 12 |
15620-ZE6-810 |
SEE PART DETAILS - PRI; GAUGE, OIL LEVEL Use up to Engine SN 1257294. Price: $12.40 |
| 13 |
15630-ZE6-810 |
EXTENSION, OIL FILLER (106MM) (Honda Code 3337870). Price: $51.92 |
| 14 |
16510-ZE6-000 |
GOVERNOR ASSY. (Honda Code 3337904). Price: $24.66 |
| 15 |
16511-ZE1-000 |
WEIGHT, GOVERNOR (Honda Code 1427228). Price: $3.94 |
| 16 |
16512-ZE6-000 |
HOLDER, GOVERNOR WEIGHT (Honda Code 1452846). Price: $15.20 |
| 17 |
16513-ZE1-000 |
PIN, GOVERNOR WEIGHT (Honda Code 1427244). Price: $2.22 |
| 18 |
16515-ZE6-010 |
SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER (Honda Code 7338890). Price: $7.16 |
| 19 |
16525-ZE6-010 |
SEE PART DETAILS - PRI; PLATE, GOVERNOR SHAFT HOLDER (Honda Code 3337912). Price: $6.90 |
| 20 |
16531-ZE1-000 |
SEE PART DETAILS - PRI; SLIDER, GOVERNOR Price: $3.54 |
| 21 |
16541-ZE7-000 |
SHAFT, GOVERNOR ARM (Honda Code 2289643). Price: $15.20 |
| 22 |
17240-ZE6-000 |
COLLAR, EXTENSION Use up to Engine SN 1257294. Price: $4.58 |
| 23 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 24 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 25 |
90017-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076). Price: $3.36 |
| 26 |
90131-ZE1-000 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG Price: $3.04 |
| 27 |
90451-ZE1-000 |
SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862). Price: $1.98 |
| 28 |
90601-ZE1-000 |
WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583). Price: $0.68 |
| 29 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 30 |
91202-ZE6-013 |
SEE PART DETAILS - PRI; OIL SEAL (22X35X6) (Honda Code 7387756). Price: $10.04 |
| 31 |
91231-891-003 |
OIL SEAL (6X11X4) (Honda Code 0801043). Price: $2.92 |
| 32 |
91201-ZG9-U71 |
SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073). Price: $4.72 |
| 33 |
91301-ZE9-003 |
SEE PART DETAILS - PRI; O-RING (22.5X2.2) Use from Engine SN 1257295. Price: $2.32 |
| 34 |
91301-805-000 |
SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185). Price: $5.00 |
| 35 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 36 |
94251-08000 |
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527). Price: $1.54 |
| 37 |
94301-08140 |
SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310). Price: $2.82 |
| 38 |
95701-06012-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984. Price: $2.04 |
| 39 |
95701-06020-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815). Price: $2.22 |
