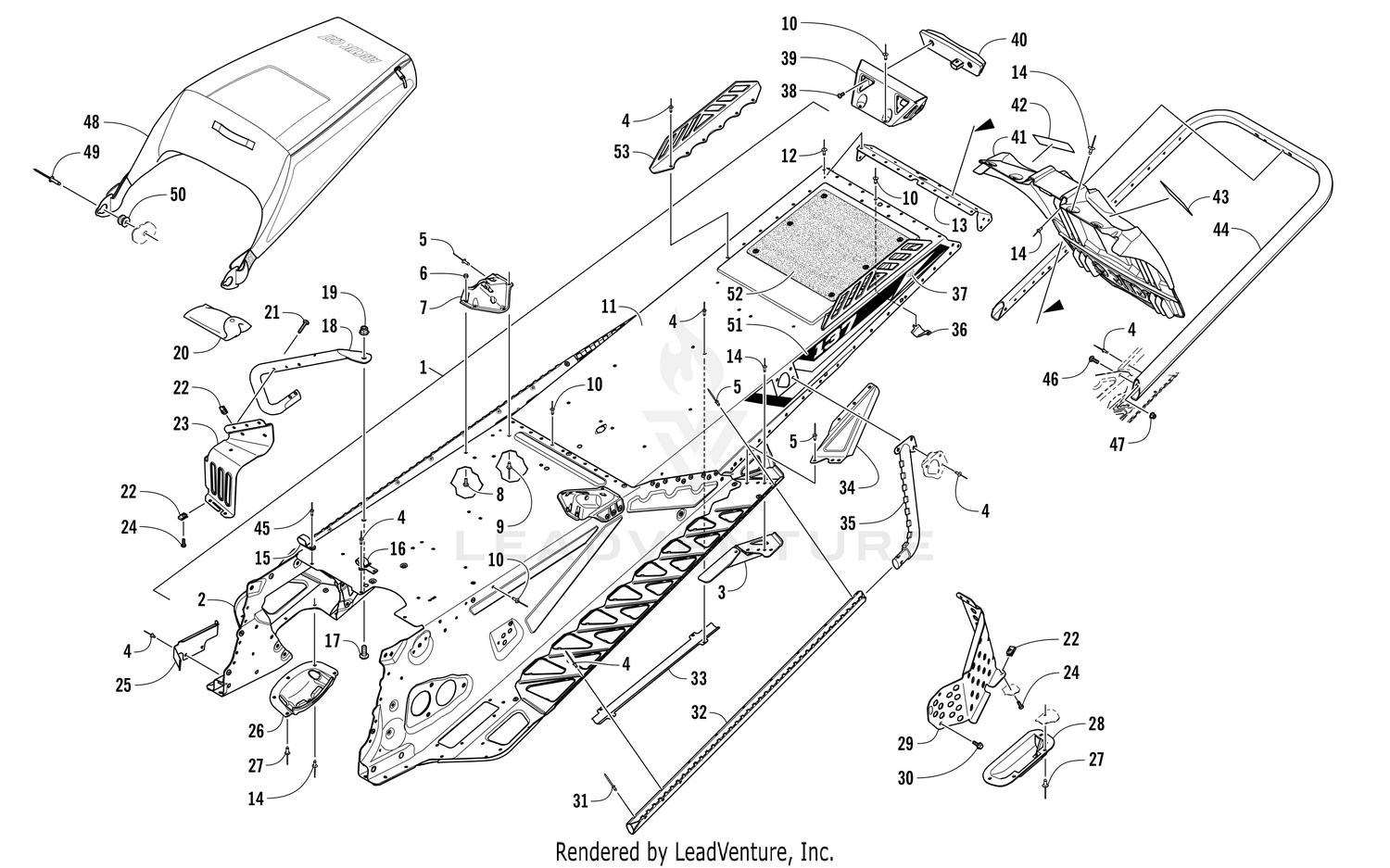

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [104053]

Parts (55)

Ref	Part Number	Description
3	2707-244	Bracket, Mounting - Suspension - Right - Black Price: $28.95
3	2707-245	Bracket, Mounting - Suspension - Left - Black Price: $28.95
4	8060-706	Rivet Price: $0.46
5	1623-206	Rivet Price: $2.30
6	8422-502	Nut, Lock Price: $0.48
7	1707-692	Bracket, Mounting - Rear Spar - Right - Black Price: $33.95
7	1707-693	Bracket, Mounting - Rear Spar - Left - Black Price: $41.95
8	8476-512	Screw, Machine Price: $1.45
9	1623-257	Rivet Price: $2.30
10	8060-702	Rivet - Black Price: $0.35
11	2707-925	Tunnel, Rear - Black Price: $184.63
12	8060-686	Rivet - Zinc Price: $0.46
13	1707-725	End Cap, Tunnel - Black Price: $41.95
14	8061-706	Rivet Price: $1.07
15	1623-762	Clamp, Routing Price: $8.43
16	0645-709	Clip, Routing Price: $13.28
17	8476-820	Screw, Machine Price: $1.08
18	1707-454	Support, Footrest - Right Price: $71.95
18	1707-455	Support, Footrest - Left Price: $71.95
19	8427-802	Nut, Lock Price: $0.58
20	0744-087	Kit, Tool Price: $90.14
21	8468-535	Screw, Machine Price: $1.07
22	1623-637	Clip, U-Nut Price: $2.61
23	1707-556	Footrest - Right - Black Price: $31.95
23	1707-557	Footrest - Left - Black Price: $31.95
24	8470-516	Screw, Machine Price: $0.35
25	0608-705	Bracket, Routing - Oil Line Price: $14.49
26	1607-109	Protector, Chain Case Price: $5.90
27	8061-706	Rivet Price: $1.07
28	0607-351	Protector, Brake Disc Price: $13.28
29	2707-044	Shield, Brake Disc - Black Price: $48.95
30	8408-613	Screw, Cap Price: $1.66
31	1623-130	Rivet Price: $1.80
32	1707-697	Roll, Tunnel - Black Price: $60.95
33	0630-309	Protector, Taillight Harness Price: $18.13
34	1707-698	Gusset, Running Board - Right - Black Price: $30.95
34	1707-699	Gusset, Running Board - Left - Black Price: $30.95
35	1707-700	Gusset, Tunnel Roll - Right - Black Price: $31.95
35	1707-701	Gusset, Tunnel Roll - Left - Black Price: $31.95
36	0630-292	Protector, Taillight Harness Price: $16.92
37	0621-990	Decal, Reflector - Red Price: $15.42
38	8470-512	Screw, Machine Price: $0.29
39	0730-227	Bracket, Mounting - Taillight - Black Price: $41.95
40	0609-898	Taillight, LED Price: $70.95
41	6606-394	Snowflap Price: $109.95
44	2707-780	Bumper, Rear - Green Price: $38.95
45	8061-686	Rivet Price: $1.08
46	8476-620	Screw, Machine Price: $0.48
47	8427-602	Nut, Hex Price: $0.23
48	6606-600	Saddlebag Price: $242.95
49	8060-630	Rivet Price: $1.32
50	1623-940	Mount, Saddlebag Price: $2.17
51	3621-492	Decal, Tunnel - Right - Green Price: $54.95
51	3621-493	Decal, Tunnel - Left - Green Price: $54.95
52	7606-373	Pad, Rear Rack Price: $42.95
