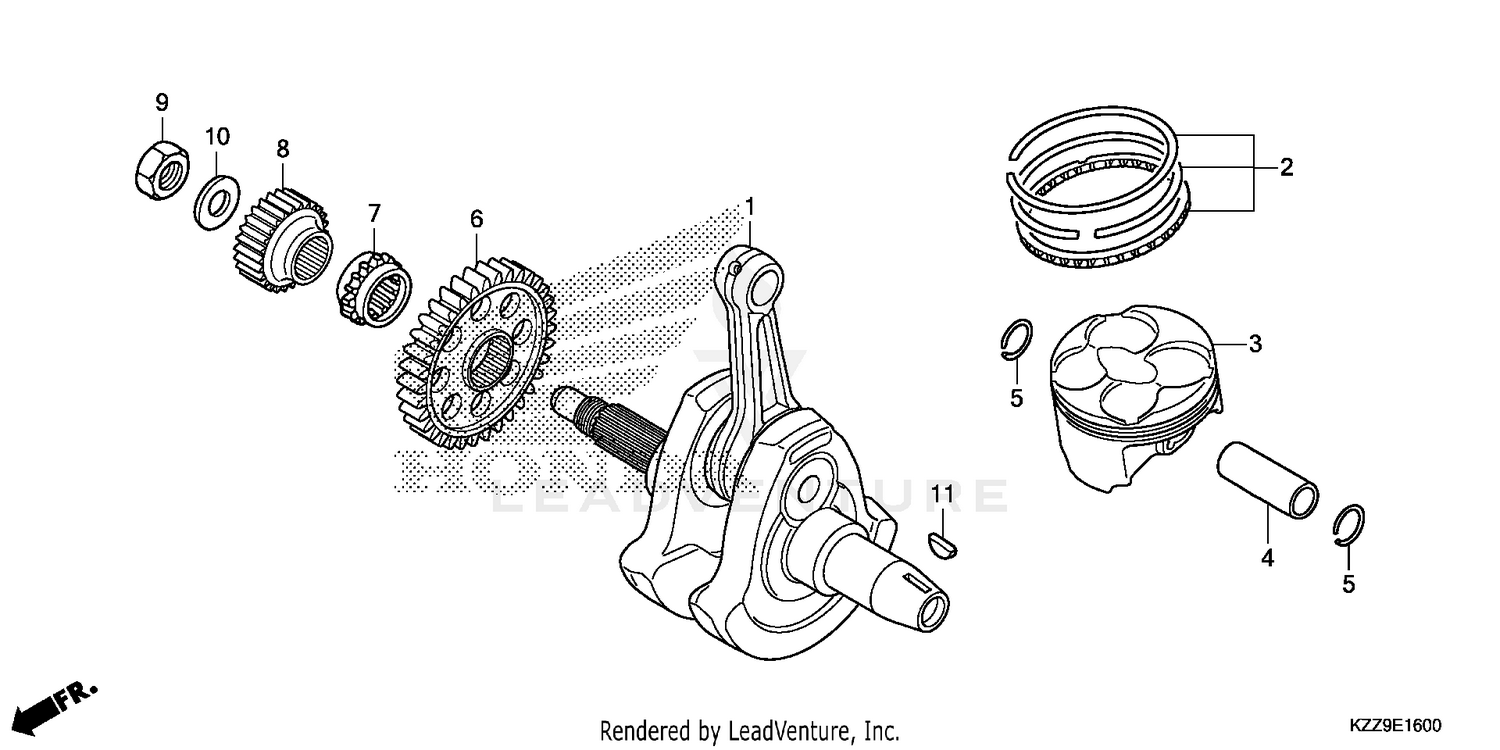

CRANKSHAFT@PISTON
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13000-K0A-RB0 | CRANK SHAFT COMP This part replaces 13000-KYJ-904. Price: $757.76 |
| 2 | 13011-KZZ-D20 | RING SET, PISTON (STD) Price: $32.36 |
| 3 | 13101-K33-J00 | PISTON Price: $81.29 |
| 4 | 13111-MEL-000 | PIN, PISTON Price: $91.00 |
| 5 | 13112-K33-D00 | CLIP, PISTON PIN (17MM) Price: $1.40 |
| 6 | 13417-K33-D00 | GEAR, BALANCER DRIVE (35T) Price: $41.73 |
| 7 | 14311-KYJ-900 | SPROCKET, TIMING (17T) Price: $11.33 |
| 8 | 23121-K33-D01 | GEAR, PRIMARY DRIVE (26T) Price: $31.61 |
| 9 | 90235-KYJ-900 | NUT, LOCK (16MM) Price: $6.27 |
| 10 | 90434-KPS-900 | WASHER (16MM) Price: $2.27 |
