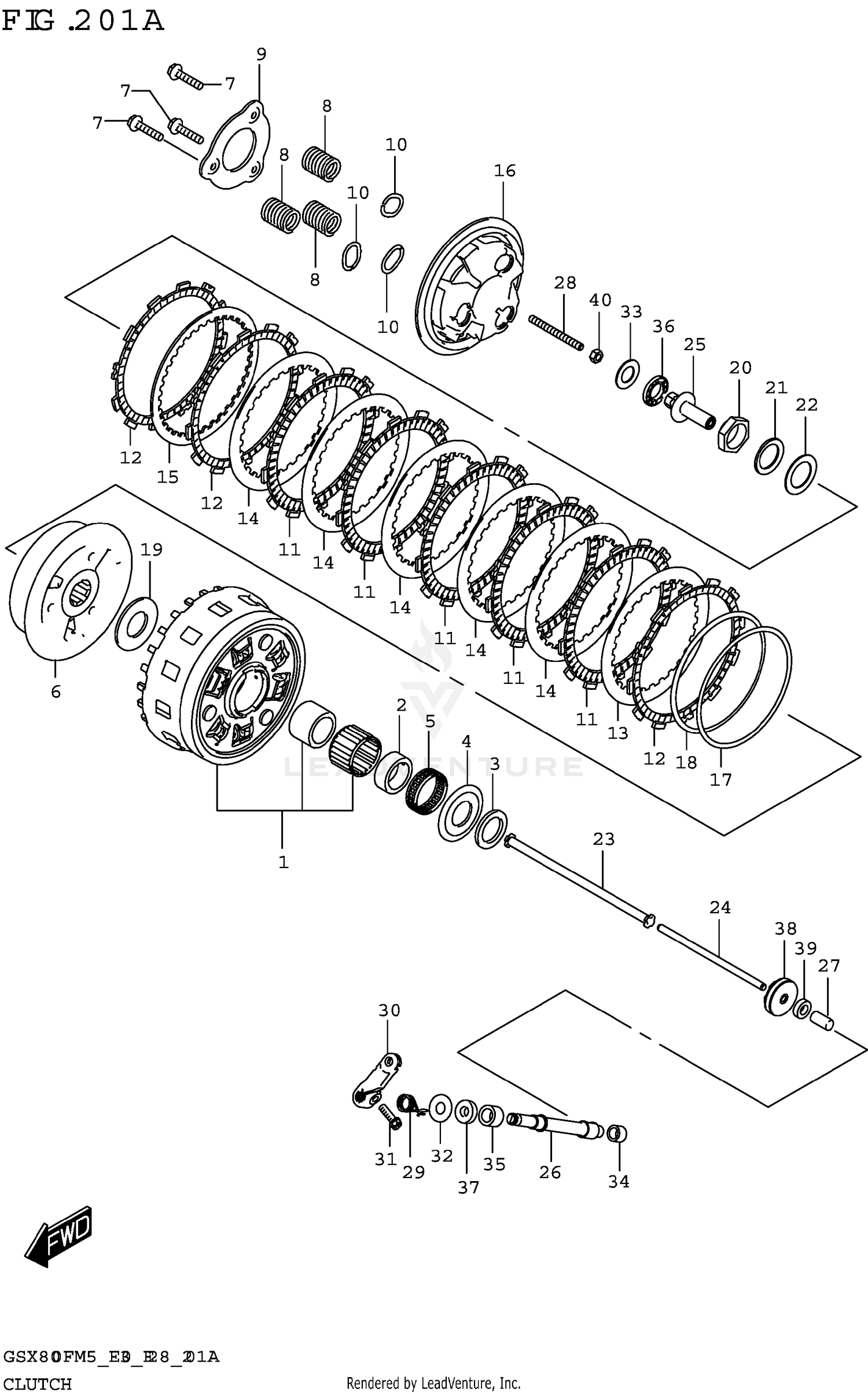

| Ref | Part Number | Description |
|---|
| 1 |
21200-25810 |
GEAR ASSY,PRI DRIVEN (NT:62) Price: $300.17 |
| 2 |
21253-01H10 |
SPACER,OIL PUMP DRIVE SPROCKE Price: $44.78 |
| 3 |
09160-25036 |
WASHER (25X30X3) Price: $3.98 |
| 4 |
09160-25073 |
WASHER (25X54X2.4) Price: $15.23 |
| 5 |
09263-35045 |
BEARING (35X40X12) Price: $24.58 |
| 6 |
21411-25L00 |
HUB,CLUTCH SLEEVE Price: $91.83 |
| 7 |
21412-31J00 |
BOLT,CLUTCH SPRING Price: $4.45 |
| 8 |
21413-25L00 |
SPRING,CLUTCH Price: $6.22 |
| 9 |
21414-25L00 |
PLATE,STOPPER Price: $13.44 |
| 10 |
21415-31J00 |
SEAT,CLUTCH SPRING Price: $16.70 |
| 14 |
21451-41G30 |
PLATE,CLUTCH DRIVEN (T:1.6) Price: $16.85 |
| 16 |
21462-25L00 |
DISC,CLUTCH PRESSURE Price: $76.17 |
| 17 |
21471-41G00 |
SEAT,WAVE WASHER Price: $17.55 |
| 18 |
21472-41G20 |
WASHER,CLUTCH PLATE WAVE Price: $25.36 |
| 19 |
09160-25056 |
WASHER (25X50X2.5) Price: $14.34 |
| 20 |
09159-24010 |
NUT Price: $16.09 |
| 21 |
09164-24008 |
WASHER (24.2X35X2.7) Price: $4.83 |
| 22 |
09181-25223 |
SHIM (25X38X1) Price: $3.91 |
| 23 |
23110-38B00 |
ROD,CLUTCH PUSH,R Price: $28.64 |
| 24 |
23111-25L00 |
ROD,CLUTCH PUSH,L Price: $10.93 |
| 25 |
23121-25L00 |
PIECE,CLUTCH PUSH Price: $46.27 |
| 26 |
23122-25L00 |
CAMSHAFT,CLUTCH RELEASE Price: $40.47 |
| 27 |
23123-41G00 |
CAP,CLUTCH PUSH ROD Price: $13.51 |
| 28 |
23124-25L00 |
SCREW,CLUTCH PUSH ROD Price: $22.12 |
| 29 |
23125-44G00 |
SPRING,CLUTCH RELEASE RETURN Price: $3.25 |
| 30 |
23271-41G00 |
ARM,CLUTCH RELEASE Price: $50.77 |
| 31 |
09103-06527 |
BOLT (6X20) Price: $2.01 |
| 32 |
09160-10020 |
WASHER (10.5X24X1.0) Price: $2.18 |
| 33 |
09160-15045 |
WASHER (15.5X28X1) Price: $4.75 |
| 34 |
09263-10014 |
BEARING (10X14X10) Price: $16.47 |
| 35 |
09263-12027 |
BEARING (12X18X12) Price: $8.90 |
| 36 |
09263-15003 |
BEARING (15X28X2) Price: $10.10 |
| 37 |
09282-10012 |
SEAL,OIL (10X20X6) Price: $9.72 |
| 38 |
09283-06013 |
SEAL,OIL Price: $16.02 |
| 39 |
09285-10004 |
SEAL,OIL (10X17X5) Price: $4.10 |
