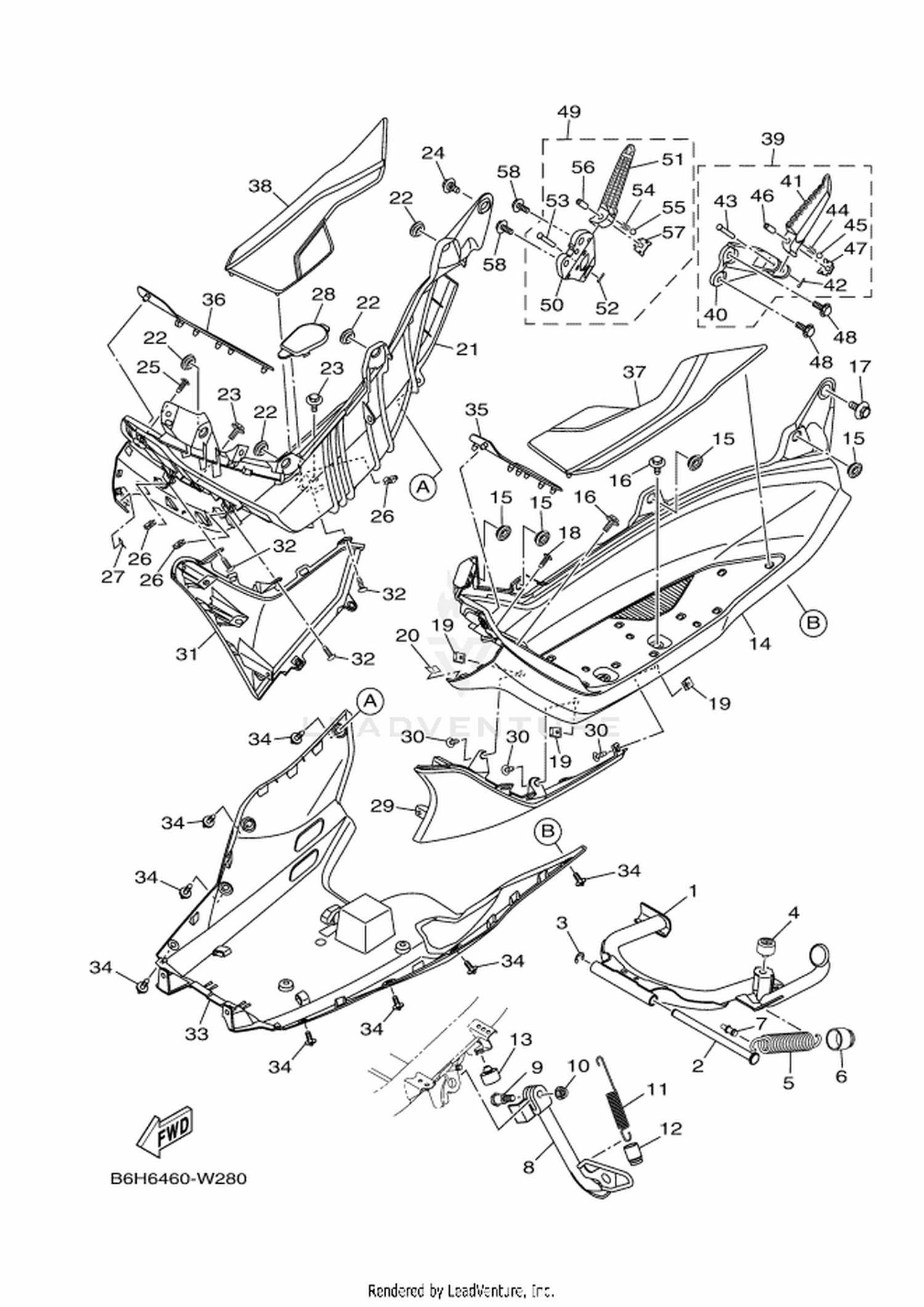

| Ref | Part Number | Description |
|---|
| 1 |
B6H-F7111-00 |
STAND, MAIN Price: Call Us |
| 2 |
B6H-F7112-00 |
SHAFT, MAIN STAND Price: Call Us |
| 3 |
99002-09600 |
CIRCLIP Price: Call Us |
| 4 |
54P-F7114-00 |
STOPPER, MAIN STAND Price: Call Us |
| 5 |
90506-40806 |
SPRING, TENSION Price: Call Us |
| 6 |
B6H-F247A-00 |
HOSE 1 Price: Call Us |
| 7 |
1LB-F7254-00 |
HOOK Price: Call Us |
| 8 |
B6H-F7311-01 |
STAND, SIDE Price: Call Us |
| 10 |
95602-10200 |
NUT, U FLANGE Price: Call Us |
| 11 |
90506-20818 |
SPRING, TENSION Price: Call Us |
| 12 |
B6H-F247B-00 |
HOSE 2 Price: Call Us |
| 13 |
54P-F7114-00 |
STOPPER, MAIN STAND Price: Call Us |
| 14 |
B6H-F7481-00 |
BOARD, FOOTREST Price: Call Us |
| 15 |
90480-01559 |
GROMMET Price: Call Us |
| 16 |
90119-06235 |
BOLT, WITH WASHER Price: Call Us |
| 17 |
90109-068B2 |
BOLT Price: Call Us |
| 18 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 19 |
90183-05807 |
NUT, SPRING Price: Call Us |
| 20 |
90520-02849 |
DAMPER, PLATE Price: Call Us |
| 21 |
B6H-F7488-00 |
BOARD, FOOTREST 2 Price: Call Us |
| 22 |
90480-01559 |
GROMMET Price: Call Us |
| 23 |
90119-06235 |
BOLT, WITH WASHER Price: Call Us |
| 24 |
90109-068B2 |
BOLT Price: Call Us |
| 25 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 26 |
90183-05807 |
NUT, SPRING Price: Call Us |
| 27 |
90520-02849 |
DAMPER, PLATE Price: Call Us |
| 28 |
2DP-F172W-01 |
COVER Price: Call Us |
| 30 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 32 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 33 |
B6H-F8385-01 |
COVER, LOWER Price: Call Us |
| 34 |
90269-06816 |
RIVET Price: Call Us |
| 35 |
B6H-F7483-00 |
MAT 1 Price: Call Us |
| 36 |
B6H-F7484-00 |
MAT 2 Price: Call Us |
| 37 |
B6H-F7493-00 |
MAT 3 Price: Call Us |
| 38 |
B6H-F7494-00 |
MAT 4 Price: Call Us |
| 39 |
B6H-F7430-10 |
REAR FOOTREST ASSY 1 Price: Call Us |
| 42 |
91402-20012 |
PIN, COTTER Price: Call Us |
| 44 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 46 |
90387-064H8 |
COLLAR Price: Call Us |
| 48 |
95E32-08020 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 49 |
B6H-F7440-10 |
REAR FOOTREST ASSY 2 Price: Call Us |
| 52 |
91402-20012 |
PIN, COTTER Price: Call Us |
| 54 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 56 |
90387-064H8 |
COLLAR Price: Call Us |
