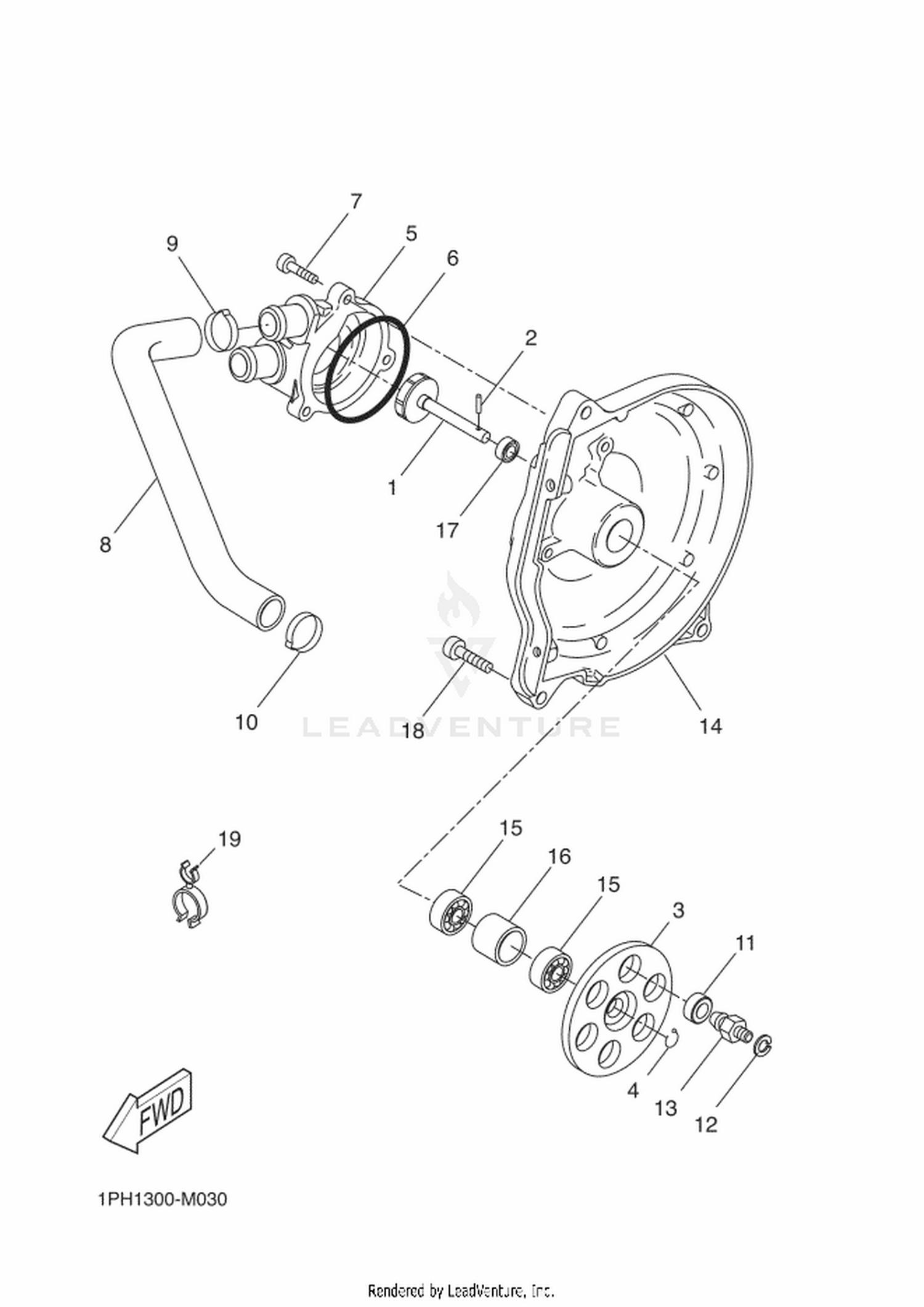

03 WATER PUMP
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5BR-E2450-00 | IMPELLER SHAFT ASSY Price: Call Us |
| 2 | 93603-22X00 | PIN, DOWEL Price: Call Us |
| 3 | 5BR-E2459-00 | GEAR, IMPELLER SHAFT Price: Call Us |
| 4 | 93410-08X00 | CIRCLIP Price: Call Us |
| 5 | 5BR-E2422-00 | COVER, HOUSING Price: Call Us |
| 6 | 93210-548E8 | O-RING Price: Call Us |
| 7 | 91317-05020 | BOLT Price: Call Us |
| 8 | 5BR-E2483-00 | PIPE 3 Price: Call Us |
| 9 | 90450-32X05 | HOSE CLAMP ASSY Price: Call Us |
| 10 | 90450-32X05 | HOSE CLAMP ASSY Price: Call Us |
| 11 | 90480-06874 | GROMMET Price: Call Us |
| 12 | 92990-06100 | WASHER, SPRING Price: Call Us |
| 13 | 90109-06X00 | BOLT Price: Call Us |
| 14 | 3D4-E5421-00 | COVER, CRANKCASE 2 Price: Call Us |
| 15 | 93306-082Y0 | BEARING Price: Call Us |
| 16 | 90387-178S8 | COLLAR Price: Call Us |
| 17 | 93101-10842 | OIL SEAL Price: Call Us |
| 18 | 90110-06X77 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
