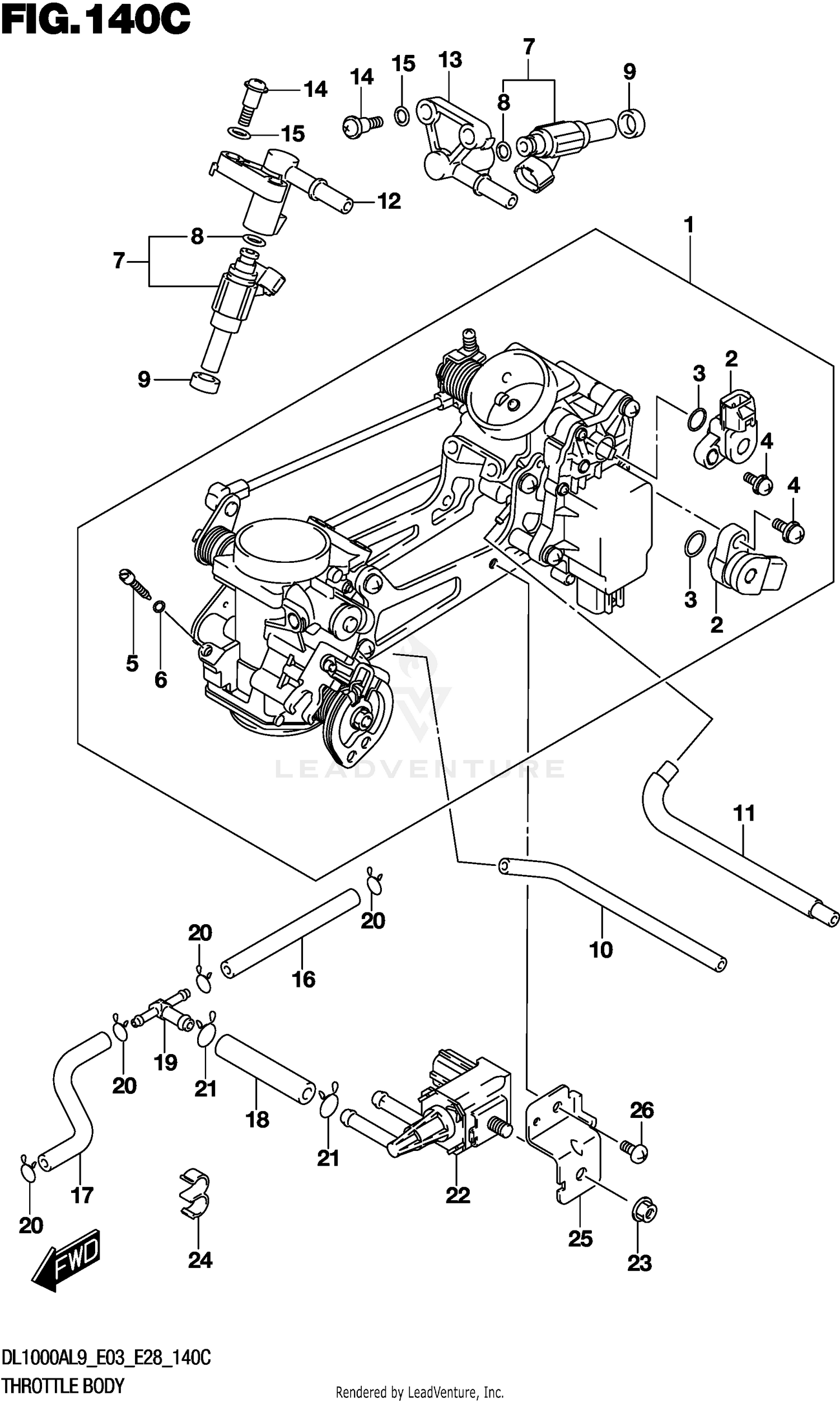

THROTTLE BODY (DL1000XAL9 E33)
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13405-31J10 | THROTTLE BODY Price: $1,328.39 |
| 8 | 15717-58B00 | O-RING Price: $12.30 |
| 9 | 15722-14J00 | SEAL Price: $14.43 |
| 10 | 13683-48G11 | HOSE This part replaces 13683-48G10. Price: $44.50 |
| 11 | 13683-31J20 | HOSE Price: $38.71 |
| 12 | 15731-11J00 | DELIVERY PIPE Price: $168.15 |
| 13 | 15732-11J00 | DELIVERY PIPE Price: $168.15 |
| 14 | 13601-11J00 | SCREW Price: $6.09 |
| 15 | 13602-29G01 | PACKING This part replaces 13602-29G00. Price: $2.94 |
| 16 | 13681-06G40 | HOSE Price: $25.53 |
| 17 | 13683-31J00 | HOSE Price: $100.06 |
| 18 | 13683-31J10 | HOSE Price: $27.73 |
| 19 | 13685-04F10 | NIPPLE Price: $11.97 |
| 20 | 09401-06101 | CLIP (ID:6.5) Price: $2.48 |
| 21 | 09401-10401 | CLIP This part replaces 09401-10410. Price: $1.75 |
| 22 | 18117-52G10 | VALVE Price: $161.76 |
| 23 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 24 | 09408-00200 | CLIP Price: $2.88 |
| 25 | 13627-31J00 | BRACKET Price: $41.10 |
