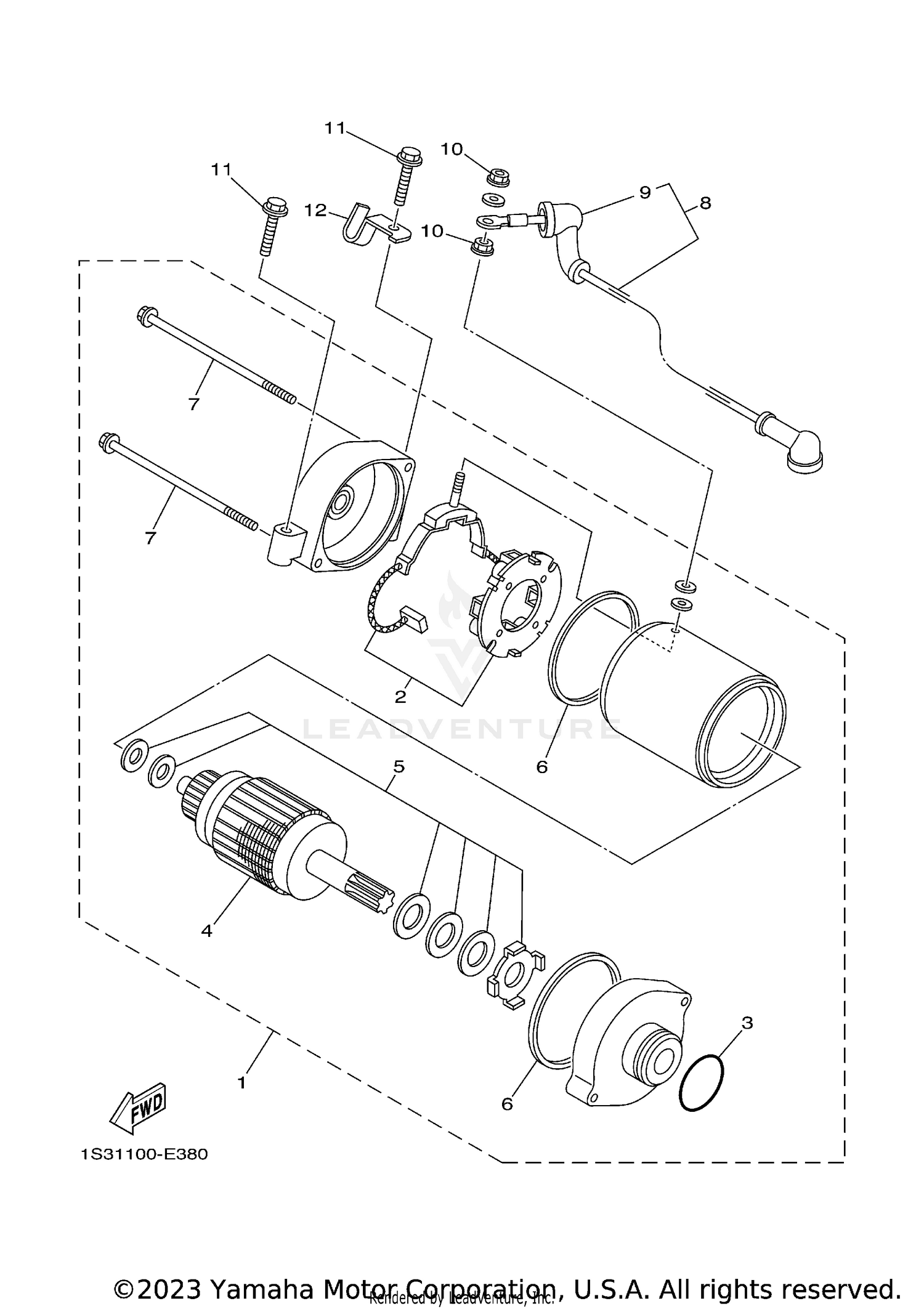

STARTING MOTOR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1S3-81890-00-00 | MOTOR ASSY Price: $230.99 |
| 2 | 3AJ-81801-00-00 | BRUSH SET Price: $126.99 |
| 3 | 93210-24235-00 | O-RING This part replaces 1FK-81847-00-00. Price: $8.49 |
| 4 | 4NK-81850-00-00 | ARMATURE ASSY Price: $307.99 |
| 5 | 3KS-81809-00-00 | WASHER KIT Price: $5.49 |
| 6 | 35C-81844-00-00 | GASKET This part replaces 11H-81844-00-00. Price: $53.99 |
| 7 | 3AJ-81826-00-00 | BOLT Price: $28.99 |
| 8 | 1S3-81815-01-00 | CORD, STARTER MOTOR Price: $75.99 |
| 9 | 5H0-81871-00-00 | CAP This part replaces 4G0-81871-00-00. Price: $29.99 |
| 10 | 4XV-8182A-00-00 | NUT Price: $8.49 |
| 11 | 95812-06030-00 | BOLT, FLANGE Price: $2.15 |
