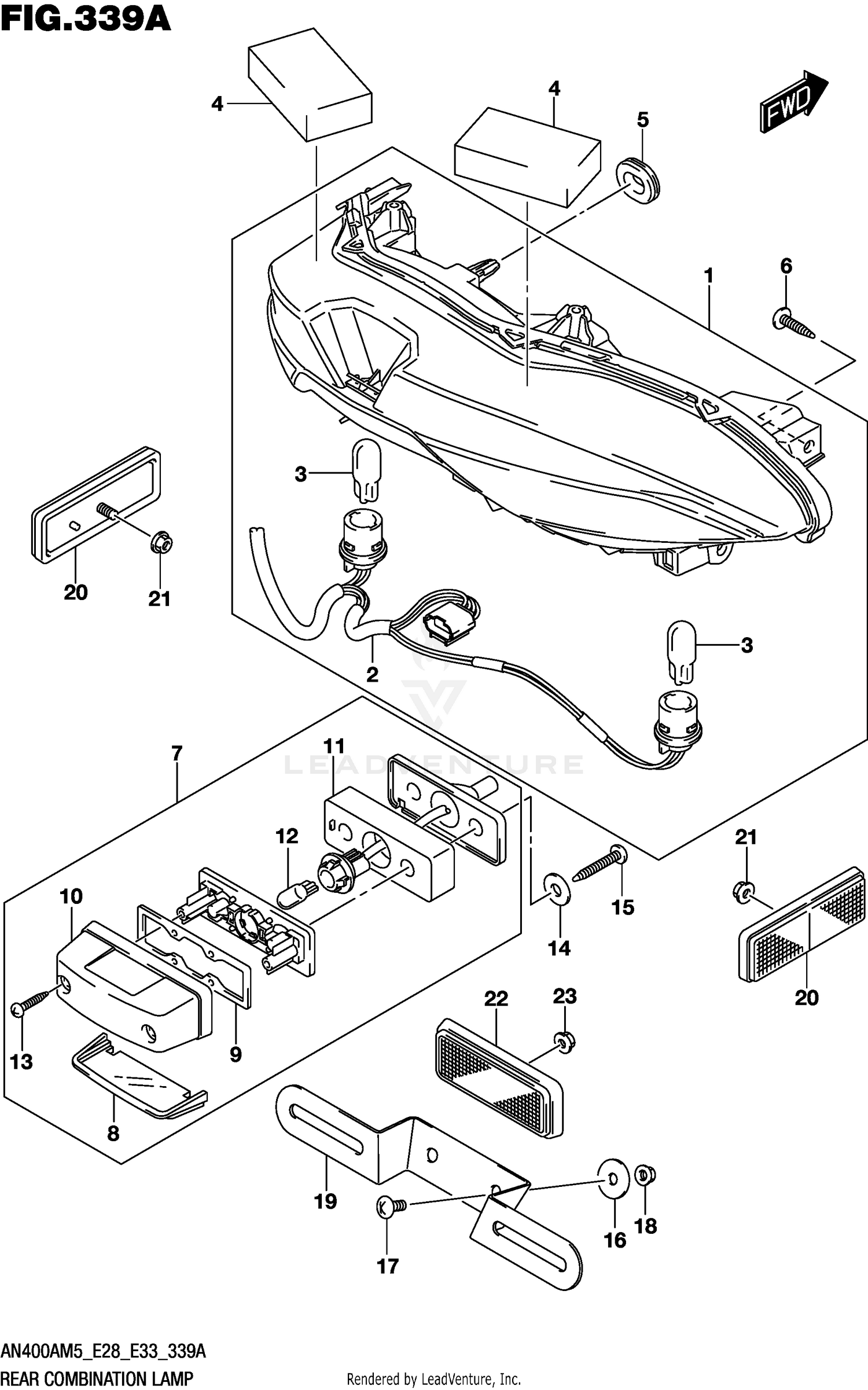

REAR COMBINATION LAMP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-19K10 | LAMP ASSY, REAR COMBINATION Price: $571.33 |
| 4 | 35713-19K00 | CUSHION, REAR COMB Price: $4.09 |
| 5 | 09320-08029 | CUSHION Price: $2.83 |
| 6 | 03541-0516A | SCREW Price: $1.65 |
| 7 | 35910-16G41 | LAMP ASSY, LICENSE Price: $82.29 |
| 12 | 09471-12216 | BULB (12V5W) Price: $6.53 |
| 14 | 09160-05501 | WASHER (5.5X20X1.2) Price: $2.25 |
| 15 | 03541-0540A | SCREW Price: $1.54 |
| 16 | 09169-06071 | WASHER Price: $3.02 |
| 17 | 02142-0616A | SCREW Price: $1.65 |
| 18 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 19 | 35927-19K00 | BRACKET, LICENSE PLATE Price: $27.36 |
| 20 | 35970-07F01 | REFLECTOR ASSY,RR Price: $25.79 |
| 21 | 08316-1005A | NUT Price: $2.64 |
| 22 | 35970-07F01 | REFLECTOR ASSY,RR Price: $25.79 |
