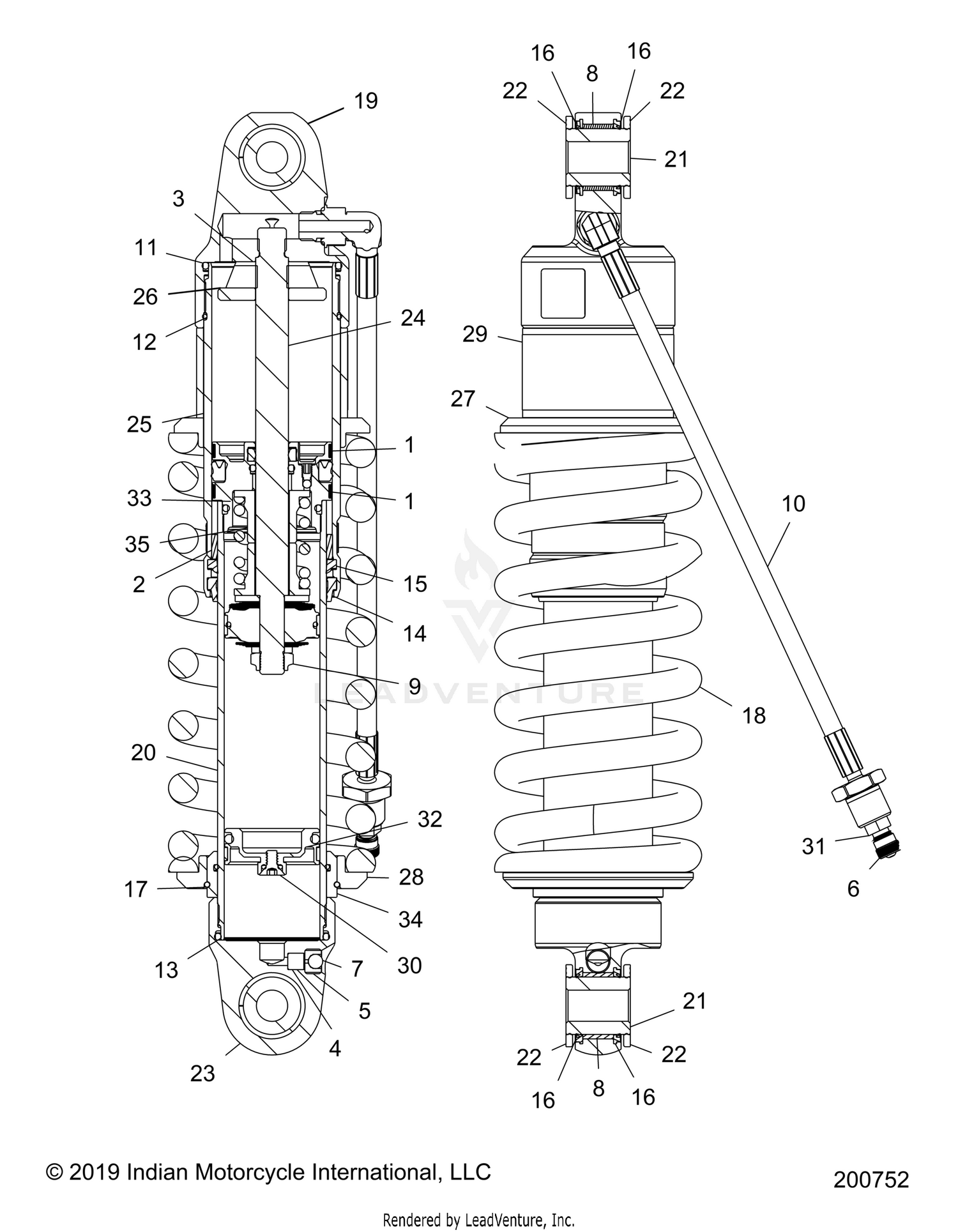

| Ref | Part Number | Description |
|---|
| 1 |
------- |
BEARING, EXTERNAL |
| 2 |
------- |
BEARING, INTERNAL |
| 3 |
------- |
BUMPER |
| 4 |
------- |
PELLET, AIR VALVE |
| 5 |
------- |
RETAINER, PELLET, AIR VALVE |
| 6 |
1500995 |
CAP, AIR VALVE Price: $11.99 |
| 7 |
------- |
BALL, AIR VALVE, 7/32 |
| 8 |
1501010H |
BUSHING, EYELET 014-20-002 Price: $24.99 |
| 9 |
------- |
NUT, LOCK |
| 10 |
1501217 |
HOSE, SS BRAID, 10" Price: $129.99 |
| 11 |
------- |
O-RING |
| 12 |
------- |
O-RING |
| 13 |
------- |
O-RING |
| 14 |
------- |
WIPER, SAMURAI |
| 15 |
------- |
WIPER, A/N |
| 16 |
1501014H |
SEAL,WEATHER 036-02-076 Price: $10.99 |
| 17 |
1500538H |
RING-RETAINING Price: Call Us |
| 18 |
------- |
SPRING |
| 19 |
------- |
CAP, BODY |
| 20 |
------- |
BODY, 1.159 DIA BORE 6.7 TLG FLOAT |
| 21 |
------- |
SLEEVE, EYELET |
| 22 |
------- |
SPACER, EYELET |
| 23 |
------- |
CAP, BODY |
| 24 |
------- |
SHAFT |
| 25 |
------- |
SLEEVE |
| 26 |
------- |
SPACER, SHAFT |
| 27 |
1500991 |
RETAINER, SPRING, UPPER Price: $59.99 |
| 28 |
------- |
RETAINER, SPRING, LOWER |
| 29 |
------- |
SLEEVE, AIR ASSIST |
| 30 |
------- |
SCREW, BLACK, RES. |
| 31 |
1500996H |
ASM-AIR VALVE Price: $59.99 |
| 32 |
------- |
ASM., PISTON, FLOAT |
| 33 |
------- |
ASM., BEARING, .498 SHAFT |
| 34 |
------- |
SLEEVE, LOWER, FLOAT |
