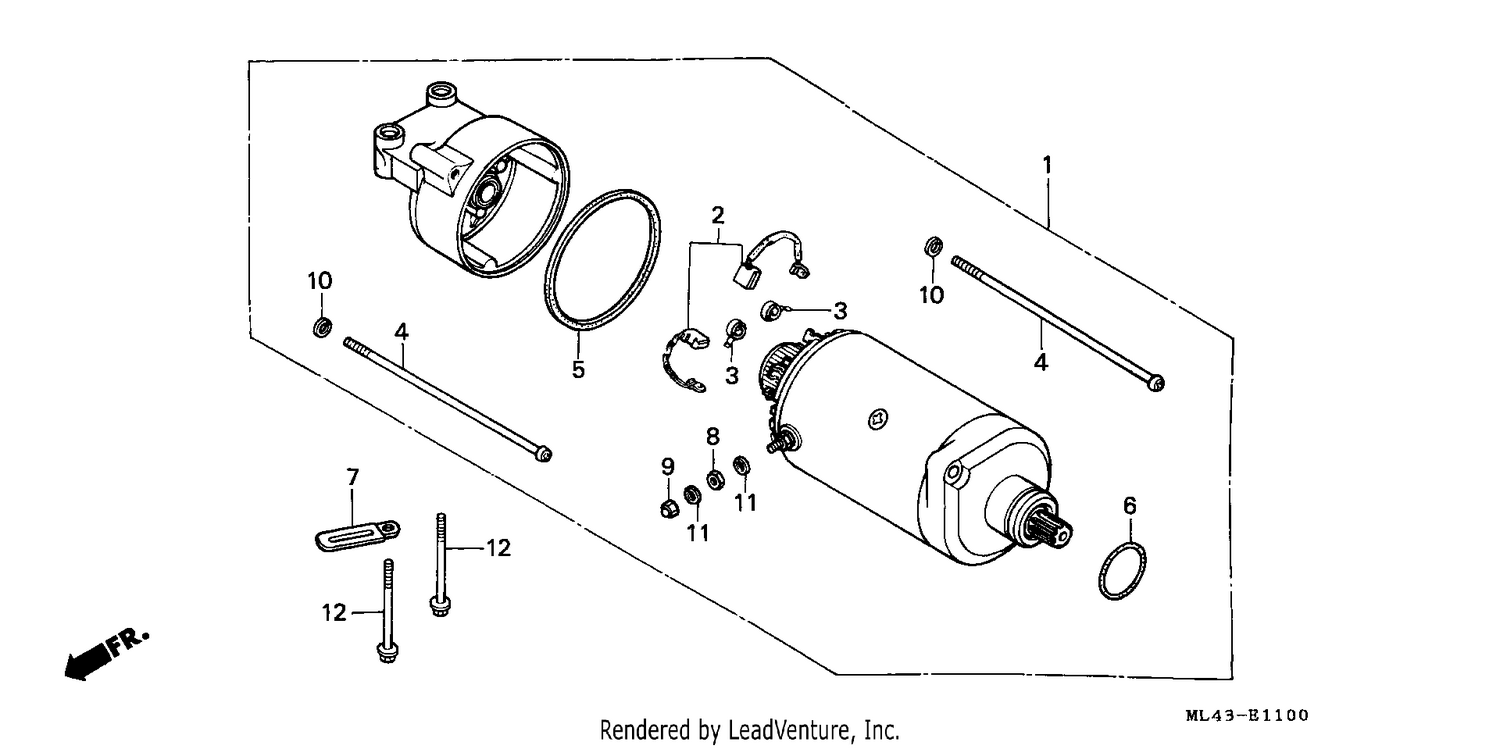

| Ref | Part Number | Description |
|---|
| 1 |
31200MC0671 |
MOTOR ASSY., STARTING Price: Call Us |
| 2 |
31201230174 |
BRUSH SET, CARBON (MITSUBA) Price: Call Us |
| 3 |
31204225154 |
SPRING, CARBON BRUSH (MITSUBA) Price: Call Us |
| 4 |
31205413780 |
BOLT, STARTING MOTOR COVER Price: Call Us |
| 5 |
31206402008 |
O-RING, 60X1.4 Price: Call Us |
| 6 |
91309425003 |
O-RING, 24.4X3.1 (ARAI) Price: Call Us |
| 7 |
91405671000 |
CLIP, WIRE Price: Call Us |
| 8 |
9400206000 |
NUT, HEX., 6MM Price: Call Us |
| 9 |
9402106000 |
NUT, CAP, 6MM Price: Call Us |
| 10 |
9411105000 |
WASHER, SPRING, 5MM Price: Call Us |
| 11 |
9411106000 |
WASHER, SPRING, 6MM Price: Call Us |
