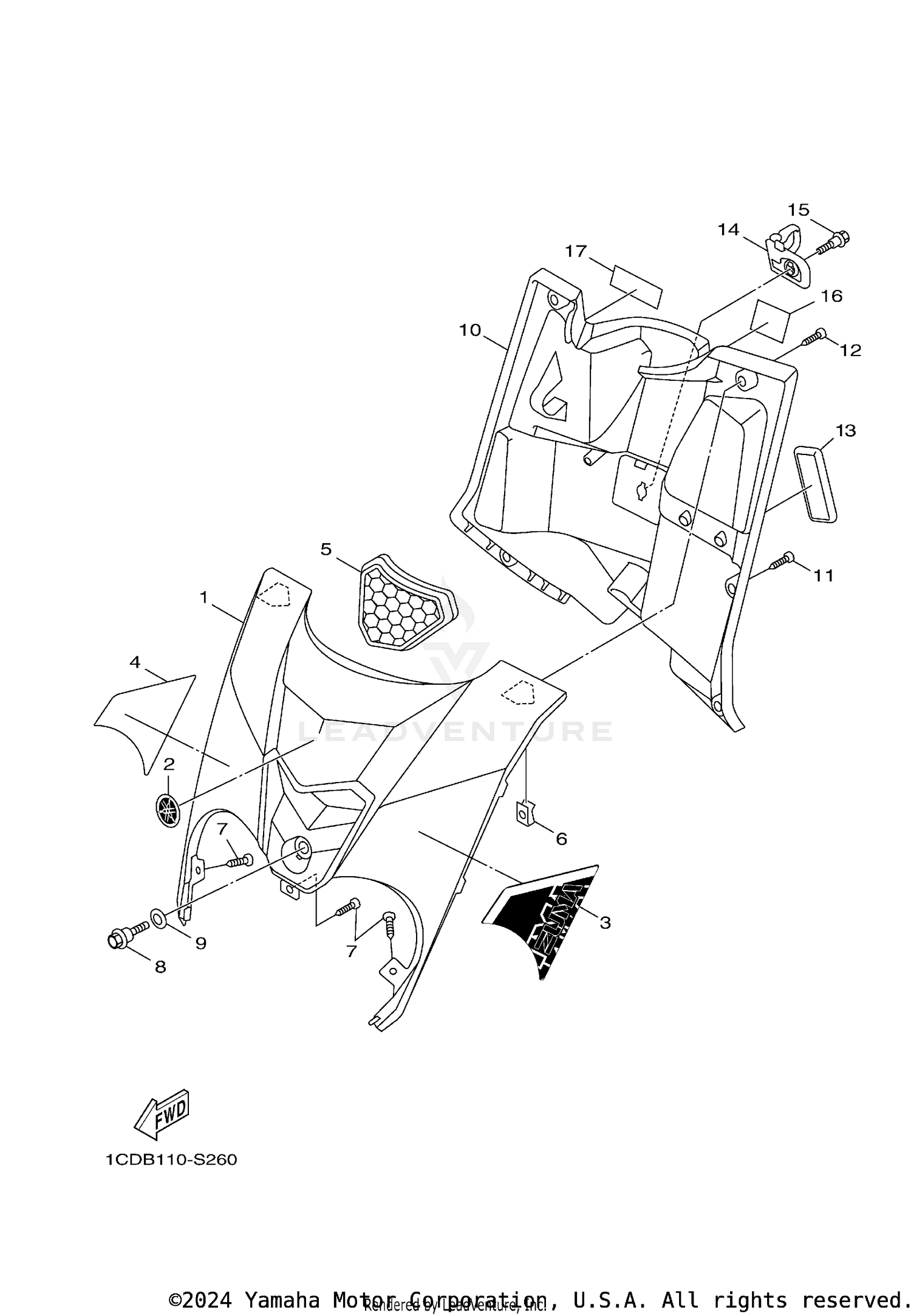

LEG SHIELD
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5TY-F1569-00-00 | GRAPHIC 1 Price: $2.35 |
| 5 | 1CD-F834V-00-00 | PROTECTOR 1 Price: $2.40 |
| 6 | 90183-05827-00 | NUT, SPRING This part replaces 90183-05816-00. Price: $1.65 |
| 7 | 97707-50012-00 | SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 8 | 90119-06887-00 | BOLT, WITH WASHER Price: $1.85 |
| 9 | 90387-068C3-00 | COLLAR Price: $1.75 |
| 10 | 1CD-F8300-00-00 | LEG SHIELD ASSY Price: $38.99 |
| 11 | 97707-50016-00 | SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 12 | 97707-50012-00 | SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 13 | 5FM-F8349-00-00 | CAP Price: $2.35 |
| 14 | 1CF-F8379-00-00 | HOOK Price: $9.49 |
| 15 | 90109-06872-00 | BOLT Price: $2.25 |
| 16 | 1CD-F4877-00-00 | LABEL, CAUTION Price: $1.00 |
