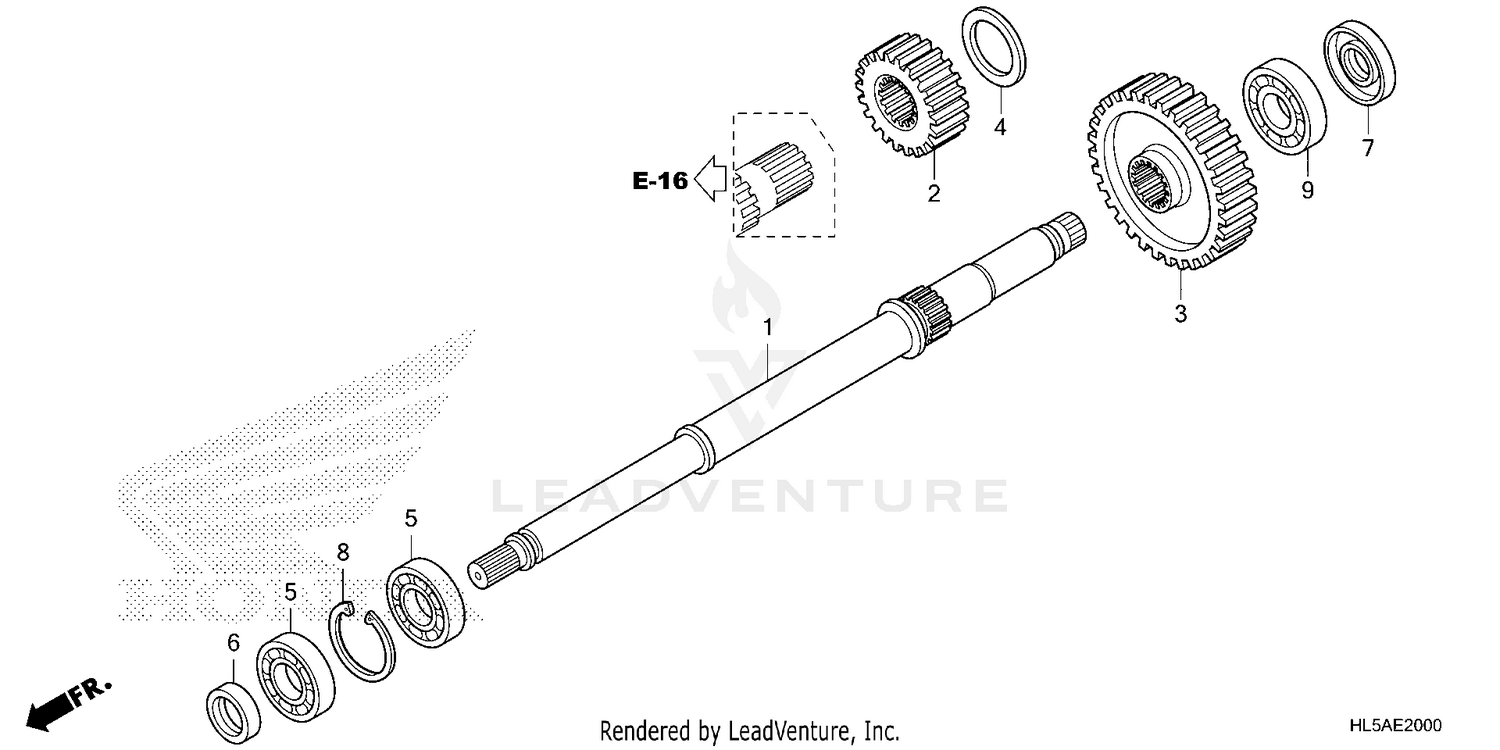

FINAL SHAFT
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 23611-HL5-A00 | SHAFT, FINAL Price: $104.20 |
| 2 | 23621-HP5-600 | GEAR, FINAL DRIVE (22T) Price: $34.56 |
| 3 | 23631-HP5-600 | GEAR, FINAL DRIVEN (40T) Price: $67.05 |
| 4 | 90459-357-000 | WASHER C, THRUST (25MM) Price: $4.53 |
| 5 | 91006-HP5-601 | BEARING, RADIAL BALL (22X47X14) Price: $14.35 |
| 6 | 91202-HR0-F01 | OIL SEAL (22X35X7) Price: $10.25 |
| 7 | 91204-HR0-F01 | OIL SEAL (25X45X7) Price: $3.45 |
| 8 | 94520-47000 | CIRCLIP (INNER) (47MM) Price: $2.67 |
