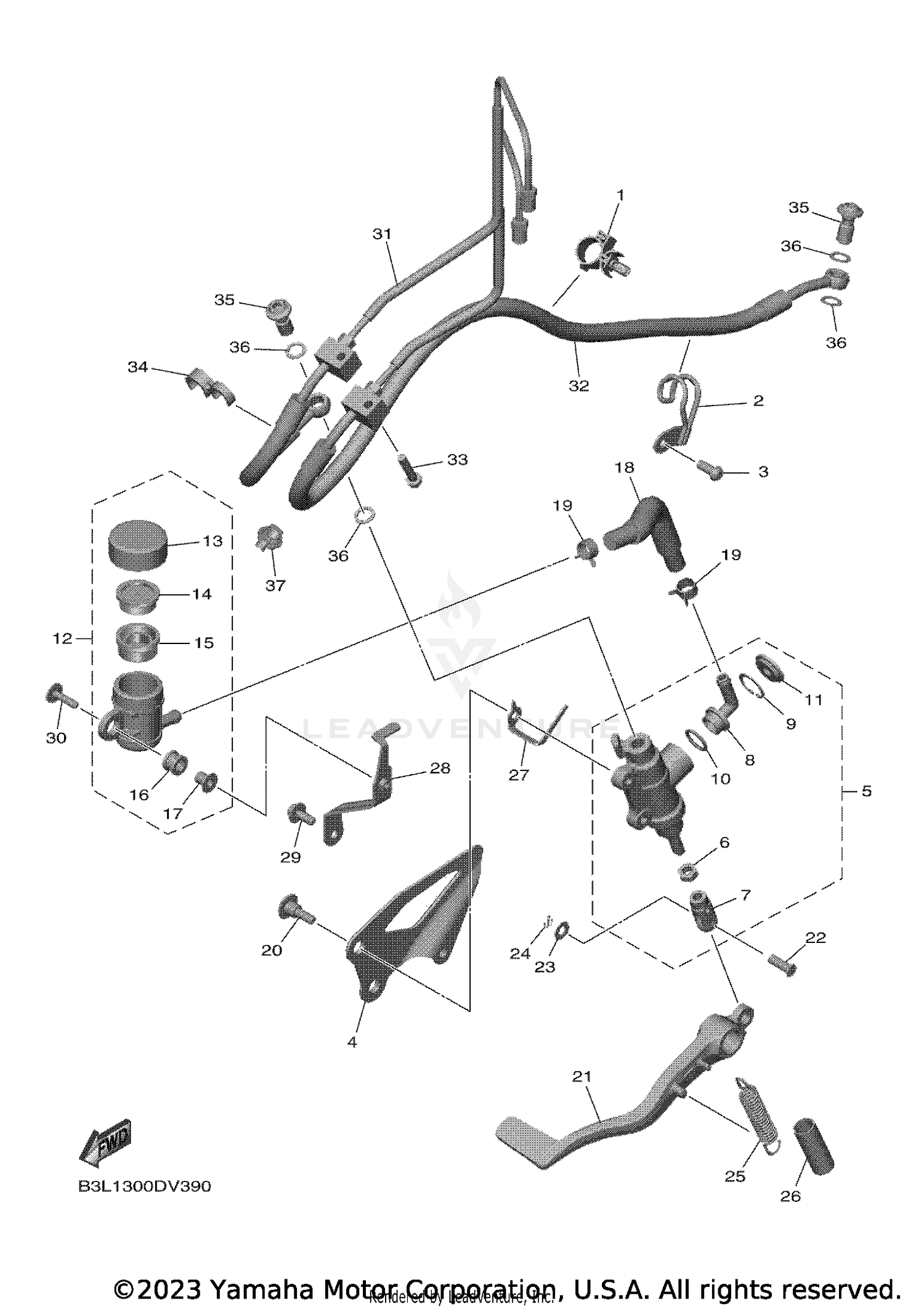

| Ref | Part Number | Description |
|---|
| 1 |
90464-16012-00 |
CLAMP Price: $8.49 |
| 2 |
2CR-2588F-00-00 |
HOLDER, BRAKE HOSE 5 Price: $14.99 |
| 3 |
92012-06016-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 4 |
2CR-27446-00-00 |
PLATE 2 Price: $41.99 |
| 5 |
2CR-2583V-00-00 |
REAR MASTER CYLINDER ASSY. Price: $264.99 |
| 6 |
95317-08700-00 |
NUT This part replaces 95307-08700-00. Price: $10.49 |
| 7 |
4XV-27222-01-00 |
JOINT Price: $47.99 |
| 8 |
4ML-2582A-50-00 |
JOINT Price: $15.49 |
| 9 |
2VN-25866-00-00 |
CIRCLIP Price: $7.49 |
| 10 |
93210-15566-00 |
O-RING This part replaces 93210-15620-00. Price: $8.49 |
| 11 |
3FV-2589A-00-00 |
COVER, DUST Price: $22.99 |
| 12 |
2CR-25804-50-00 |
RESERVE TANK ASSY Price: $61.99 |
| 13 |
2CR-25852-50-00 |
CAP, RESERVOIR Price: $4.10 |
| 14 |
3GK-25855-50-00 |
BUSH, DIAPHRAGM Price: $4.35 |
| 15 |
3GK-25854-50-00 |
DIAPHRAGM, RESERVOIR Price: $10.99 |
| 16 |
2C0-26326-00-00 |
GROMMET Price: $7.49 |
| 17 |
90387-05028-00 |
COLLAR Price: $6.49 |
| 18 |
2CR-25895-50-00 |
HOSE, RESERVOIR Price: $21.99 |
| 19 |
90467-12085-00 |
CLIP Price: $11.49 |
| 20 |
90109-066F0-00 |
BOLT Price: $9.49 |
| 21 |
2CR-27211-00-00 |
PEDAL, BRAKE Price: $101.99 |
| 22 |
91701-06018-00 |
PIN This part replaces 91702-06018-00. Price: $5.49 |
| 23 |
92907-06200-00 |
WASHER Price: $9.49 |
| 24 |
91490-16020-00 |
PIN, COTTER This part replaces 91402-16012-00. Price: $6.70 |
| 25 |
90506-20193-00 |
SPRING, TENSION Price: $16.49 |
| 26 |
90446-15386-00 |
HOSE Price: $8.49 |
| 27 |
2CR-27131-00-00 |
TUBE, STAY 1 Price: $5.49 |
| 28 |
2CR-21228-00-00 |
BRACKET, RESERVE TANK Price: $15.49 |
| 29 |
90110-06429-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.10 |
| 30 |
90111-05026-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 31 |
B3L-2581J-00-00 |
HOSE, BRAKE 4 Price: $98.99 |
| 32 |
B3L-2581K-00-00 |
HOSE, BRAKE 5 Price: $124.99 |
| 33 |
95027-06025-00 |
BOLT, FLANGE Price: $4.16 |
| 34 |
90464-13M34-00 |
CLAMP Price: $1.50 |
| 35 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 36 |
90430-10005-00 |
GASKET Price: $9.49 |
