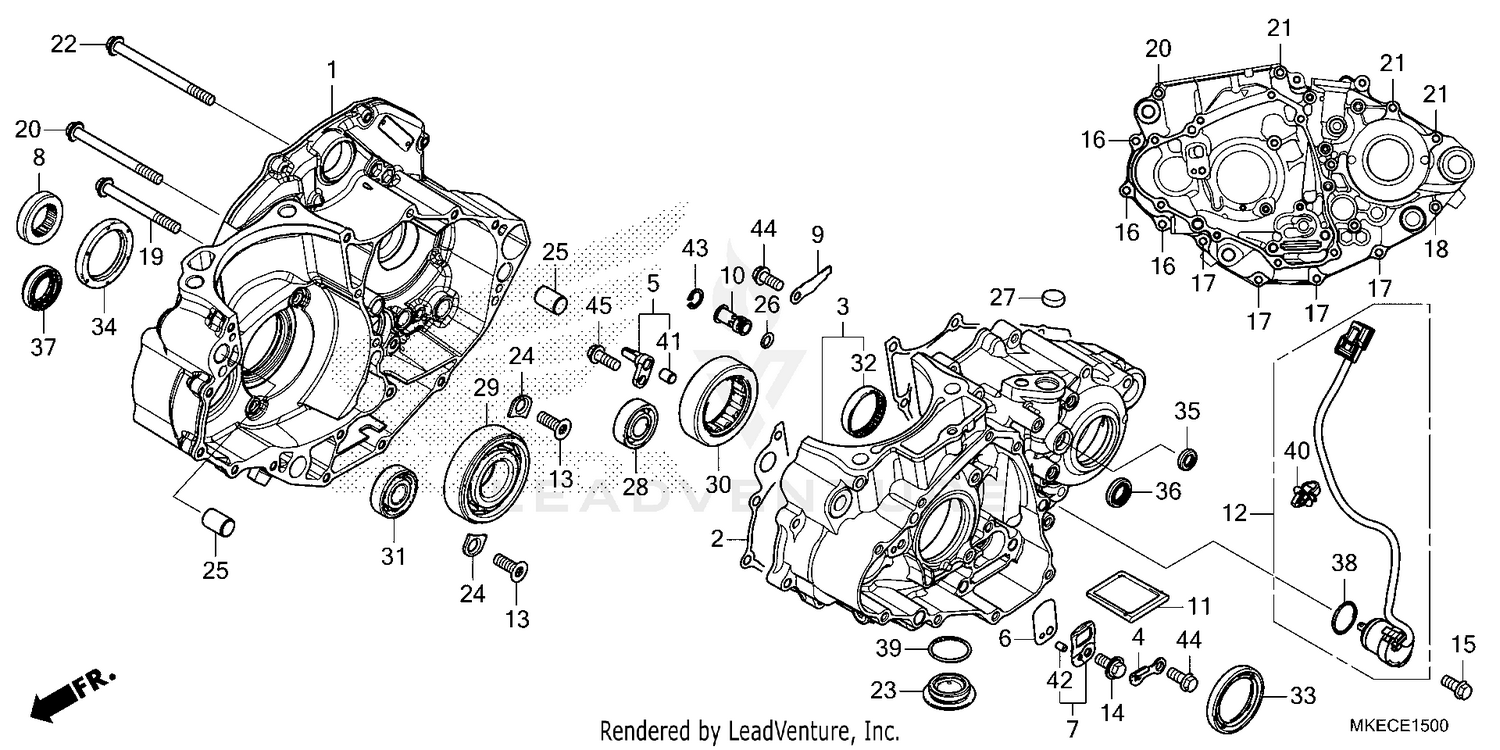

| Ref | Part Number | Description |
|---|
| 1 |
11100-MKE-A70 |
CRANKCASE, R. Price: $537.55 |
| 2 |
11191-MKE-A01 |
GASKET, CRANKCASE Price: $25.51 |
| 3 |
11200-MKE-AF1 |
CRANKCASE COMP, L. This part replaces 11200-MKE-AF0. Price: $532.19 |
| 4 |
11206-MKE-A00 |
PLATE, CAM CHAIN GUIDE Price: $3.75 |
| 5 |
11210-MKE-A71 |
JET, PISTON Price: $52.53 |
| 6 |
11221-MKE-A00 |
VALVE, REED Price: $9.78 |
| 7 |
11230-MKE-A00 |
STOPPER, REED VALVE Price: $30.65 |
| 8 |
13415-MKE-A00 |
COLLAR, CRANKSHAFT Price: $35.04 |
| 9 |
15201-MKE-A00 |
PLATE, OIL GUIDE Price: $5.16 |
| 10 |
15220-MEN-A30 |
VALVE ASSY., RELIEF Price: $28.16 |
| 11 |
15421-MKE-A70 |
SCREEN, OIL FILTER Price: $17.09 |
| 12 |
35759-MKE-AF1 |
SWITCH ASSY., CHANGE Price: $115.04 |
| 13 |
90001-MEN-850 |
SCREW, SPECIAL FLAT (6X17) Price: $2.05 |
| 14 |
90019-MKE-A00 |
BOLT-WASHER (6X14) Price: $2.71 |
| 15 |
90020-GHB-620 |
BOLT, FLANGE (6X12) Price: $2.45 |
| 16 |
90025-GHB-690 |
BOLT, FLANGE (6X28) Price: $2.65 |
| 17 |
90025-GHB-740 |
BOLT, FLANGE (6X40) Price: $3.04 |
| 18 |
90025-GHB-760 |
BOLT, FLANGE (6X50) Price: $3.31 |
| 19 |
90025-GHB-780 |
BOLT, FLANGE (6X60) Price: $3.49 |
| 20 |
90025-GHB-800 |
BOLT, FLANGE (6X70) Price: $3.58 |
| 21 |
90025-GHB-810 |
BOLT, FLANGE (6X75) Price: $3.67 |
| 22 |
90025-GHB-820 |
BOLT, FLANGE (6X80) Price: $3.75 |
| 23 |
90088-MKE-A70 |
BOLT, DRAIN (30MM) Price: $20.00 |
| 24 |
90441-MEN-A30 |
PLATE, BEARING HOLDER Price: $4.53 |
| 25 |
90701-MKE-A00 |
PIN, DOWEL (14X20) Price: $4.75 |
| 26 |
90751-GK1-003 |
O-RING (8.5X1.7) Price: $3.09 |
| 27 |
90875-733-003 |
PLUG, SEALING (16) (ARAI) Price: $6.08 |
| 28 |
91001-MEN-A31 |
BEARING, RADIAL BALL SPECIAL (6202) Price: $13.44 |
| 29 |
91001-MKE-A71 |
BEARING, RADIAL BALL (30X72X19) Price: $60.84 |
| 30 |
91002-MEY-671 |
BEARING, SPECIAL ROLLER (NTN) Price: $60.49 |
| 31 |
91004-MKE-A01 |
BEARING, RADIAL BALL (15X38X11) Price: $28.87 |
| 32 |
91022-KA4-741 |
BEARING, SHELL (33X38X8) Price: $19.22 |
| 33 |
91201-MEB-671 |
OIL SEAL (38X52X7) (ARAI) Price: $15.93 |
| 34 |
91202-MKE-A01 |
OIL SEAL (39X53X7) Price: $20.25 |
| 35 |
91202-MKE-AF1 |
OIL SEAL (7X14.5X5) Price: $4.07 |
| 36 |
91203-KSP-911 |
OIL SEAL (14X22X5) (ARAI) Price: $2.27 |
| 37 |
91203-MKE-A01 |
OIL SEAL (22X33X7.5) Price: $9.93 |
| 38 |
91305-KC1-850 |
O-RING (16.5X2.5) Price: $2.24 |
| 39 |
91356-KWV-000 |
O-RING (30MM) Price: $1.58 |
| 40 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.15 |
| 41 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
| 42 |
94303-04065 |
PIN C, DOWEL (4X6.5) Price: $2.35 |
| 43 |
94520-14000 |
CIRCLIP (INNER) (14MM) Price: $1.05 |
| 44 |
96001-06014-00 |
BOLT, FLANGE (6X14) Price: $1.88 |
