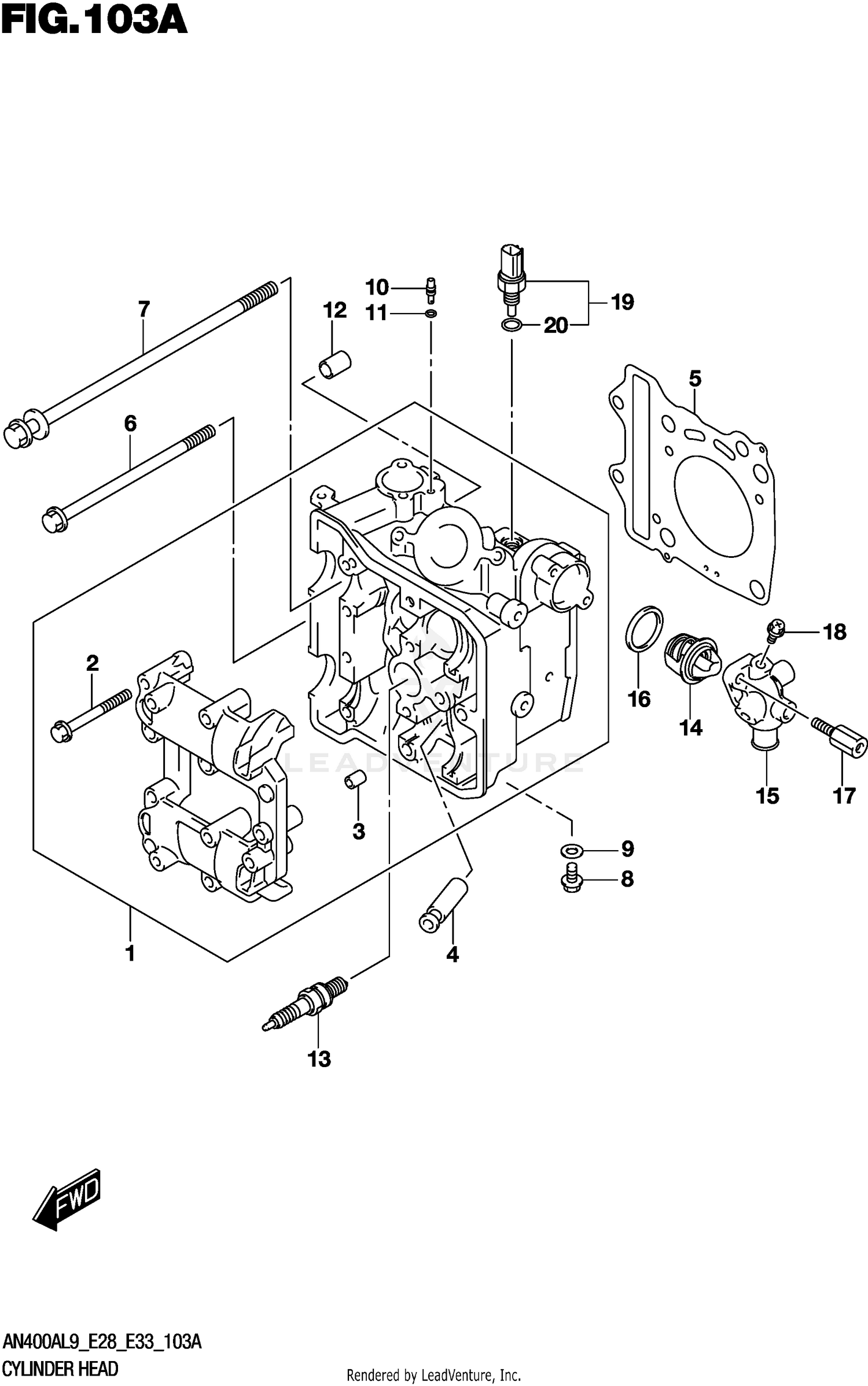

CYLINDER HEAD
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-19K01 | HEAD ASSY, CYLINDER Price: $719.26 |
| 6 | 09103-08086 | BOLT (8X130) Price: $3.98 |
| 7 | 11117-05H00 | BOLT,CYLINDER HEAD (10X190) Price: $16.46 |
| 8 | 01550-0612A | BOLT Price: $2.37 |
| 9 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 10 | 09493-80005 | JET (#80) Price: $17.07 |
| 11 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 12 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 14 | 17670-19K01 | THERMOSTAT,WATER This part replaces 17670-19K00. Price: $40.62 |
| 15 | 17661-05H01 | COVER, THERMOSTAT Price: $35.49 |
| 16 | 09168-06026 | GASKET (6.4X11.5X0.84) Price: $3.78 |
| 17 | 17667-21F00 | BOLT Price: $9.32 |
| 18 | 17568-50F00 | UNION BOLT,AIR VENT Price: $6.05 |
| 19 | 13650-14G00 | SENSOR,WATER TEMP Price: $66.10 |
