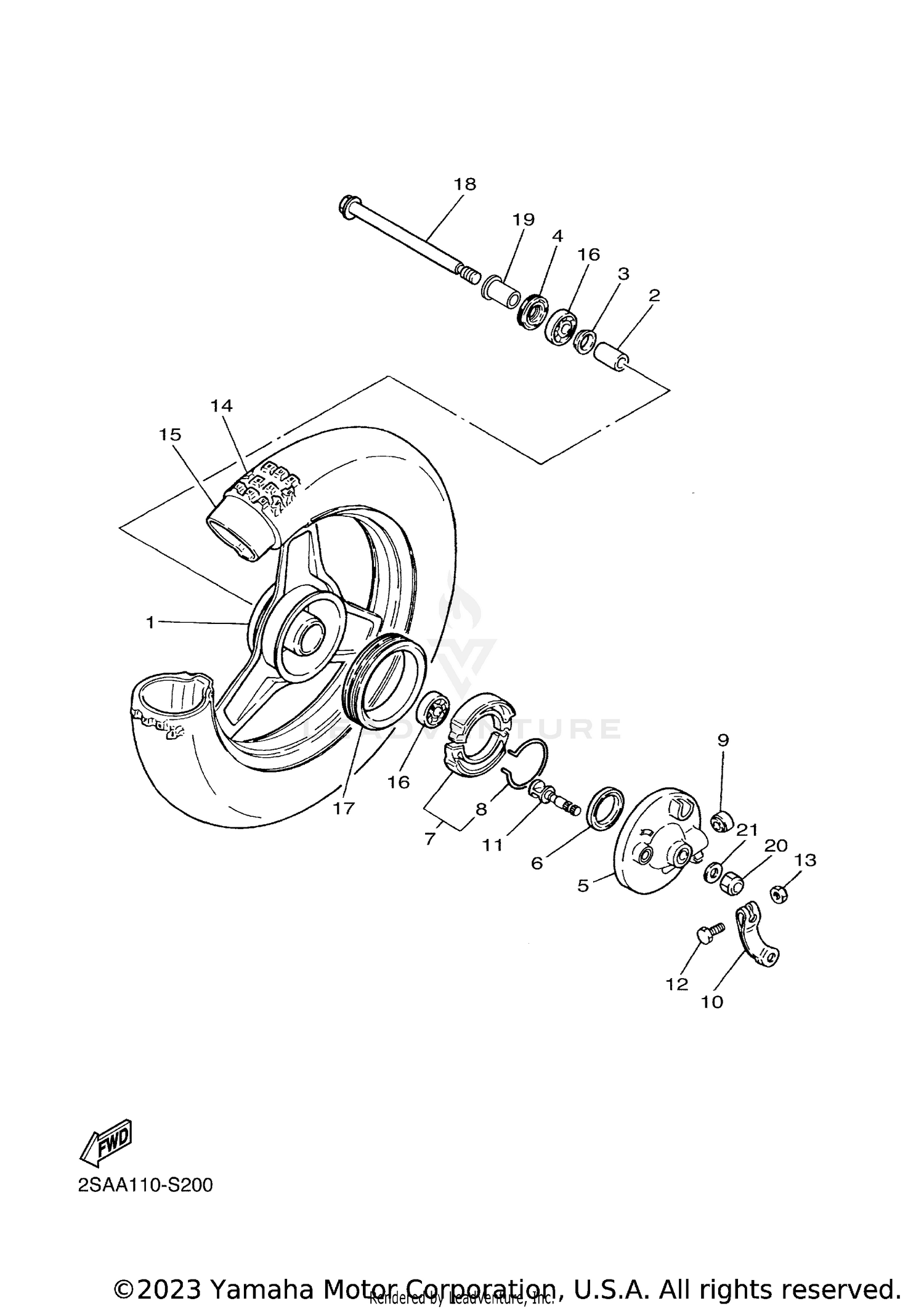

FRONT WHEEL
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 90560-10173-00 | SPACER Price: $16.49 |
| 3 | 2E9-25116-00-00 | FLANGE, SPACER 2 Price: $8.49 |
| 4 | 93106-17015-00 | OIL SEAL Price: $12.49 |
| 6 | 93109-34057-00 | OIL SEAL Price: $6.49 |
| 7 | 3PT-W253A-10-00 | BRAKE SHOE KIT Price: $22.99 |
| 8 | 2E9-25133-00-00 | SPRING, RETURN Price: $8.49 |
| 9 | 90336-15033-00 | PLUG, TAPER Price: $8.49 |
| 10 | 2T4-25155-00-00 | LEVER, CAMSHAFT 1 Price: $31.99 |
| 11 | 2E9-25151-01-00 | CAMSHAFT Price: $31.99 |
| 12 | 97027-05020-00 | BOLT This part replaces 97007-05020-00. Price: $3.55 |
| 13 | 95317-05600-00 | NUT This part replaces 95307-05600-00. Price: $2.50 |
| 17 | 2T4-25185-00-00 | RING 1 Price: $24.99 |
| 18 | 90105-10300-00 | BOLT, FLANGE Price: $13.49 |
| 19 | 90387-10112-00 | COLLAR Price: $22.99 |
| 20 | 90185-10091-00 | NUT, SELF-LOCKING Price: $10.49 |
