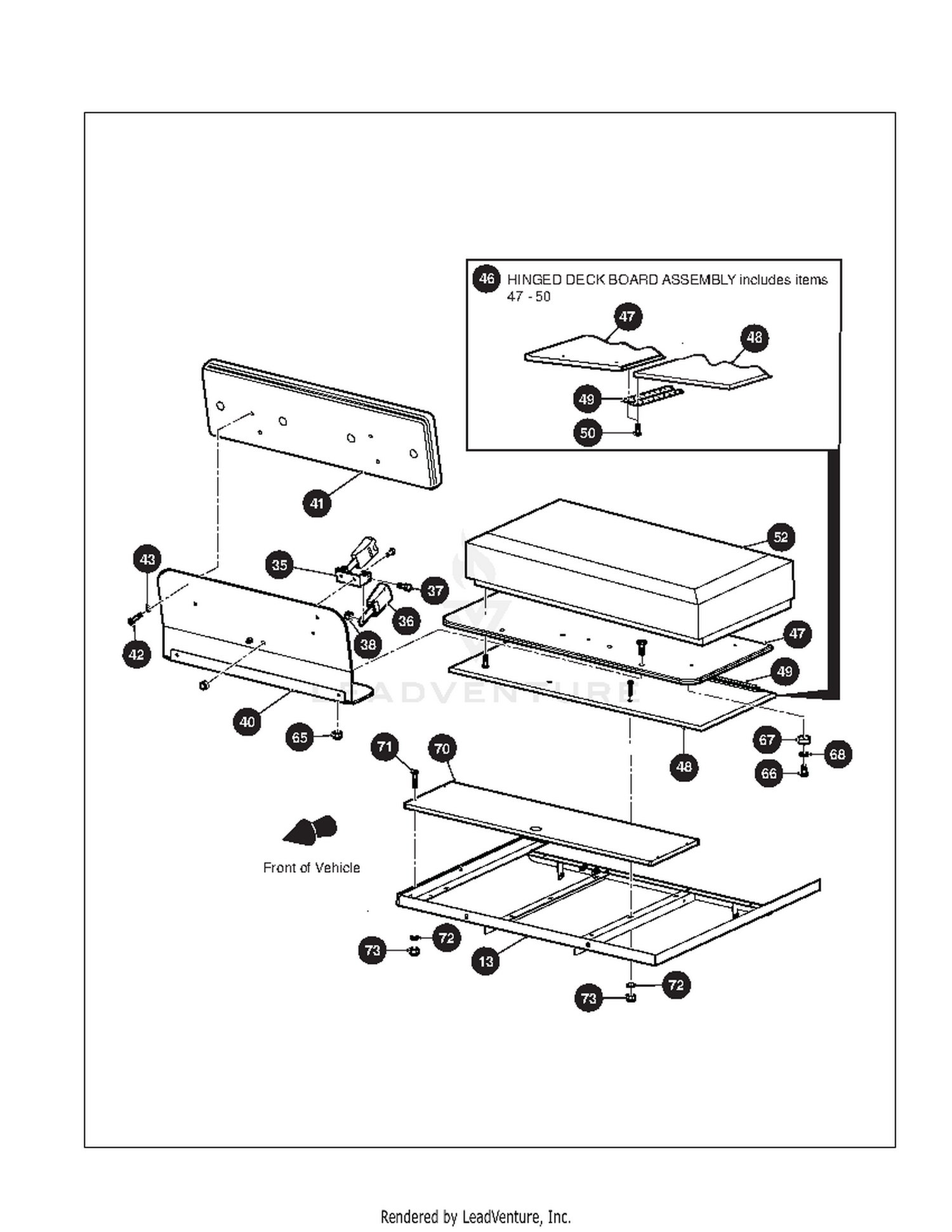

| Ref | Part Number | Description |
|---|
| 1 |
627783 |
FLIP SEAT ARM REST Price: $181.99 |
| 2 |
00427G8 |
HEX HEAD BOLT, 3/8"-16 X 2 Price: $5.99 |
| 3 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 4 |
00665G9 |
HEX HEAD BOLT, 3/8-16 X 3 1/2 Price: $7.99 |
| 5 |
00560G1 |
FLAT WASHER, 3/8" Price: $0.99 |
| 6 |
11098G5 |
LOCK NUT, 3/8"-16 Price: $0.99 |
| 8 |
628552 |
FOOTREST WELDMENT Price: $468.54 |
| 9 |
00463G4 |
HEX HEAD BOLT, 7/16"-14 X 1 1/2 Price: $5.99 |
| 10 |
00560G2 |
FLAT WASHER, 7/16 Price: $1.99 |
| 11 |
00734G1 |
LOCK NUT, 7/16-14 Price: $1.99 |
| 13 |
627796 |
WELDMENT,FLIP SEAT FRAME Not Available Price: |
| 14 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 15 |
624030 |
FLANGED BUSHING, IGUS This part replaces 70291G01. Price: $1.99 |
| 16 |
00560G3 |
FLAT WASHER, 1/2 Price: $0.99 |
| 17 |
14390G6 |
LOCK NUT, 1/2-13 Price: $2.99 |
| 19 |
627797 |
SEAT FRAME BRACKET Price: $13.84 |
| 20 |
00427G2 |
HEX HEAD BOLT, 3/8-16 X 1 1/4 Price: $3.99 |
| 21 |
00560G1 |
FLAT WASHER, 3/8" Price: $0.99 |
| 22 |
11098G5 |
LOCK NUT, 3/8"-16 Price: $0.99 |
| 24 |
609000 |
OBS-RETRACTOR,SEAT BELT Price: $114.95 |
| 36 |
609854 |
LATCH, BUCKLE, SEAT BELT, 6 Price: $28.56 |
| 37 |
610753 |
HEX HEAD BOLT, 7/16-20X 1 Price: $2.99 |
| 38 |
00734G3 |
LOCK NUT, 7/16-20 Price: $1.99 |
| 40 |
627804 |
SEAT BACK SUPPORT Price: $233.54 |
| 41 |
71274G02 |
SEAT BACK ASSY, BLACK Price: $207.99 |
| 42 |
16705G5 |
SCREW S.S. 1/4-20 X 1 1/2 Price: $5.99 |
| 43 |
00664G7 |
LOCK WASHER, 0.255" X 0.263" Price: $0.99 |
| 45 |
629654 |
SEAT BOT ASSY,BLK,ECON,AMBUSH Price: $521.72 |
| 46 |
627157 |
DECK BOARD ASSY,HINGED Price: $423.55 |
| 47 |
627156 |
DECK BOARD,HINGED-SVC Not Available Price: |
| 48 |
617133 |
DECK BD,SEAT BOT,ECON-SVC Price: $175.81 |
| 49 |
617134 |
HINGE,SEAT,ECON-SVC Price: $13.24 |
| 50 |
617135 |
SCREW,HINGE,ECON-SVC Not Available Price: |
| 52 |
632837G06 |
SEAT BOTTOM,BLACK-ASSEMBLY This part replaces 621036. Price: $183.03 |
| 59 |
16705G1 |
TRUSS HEAD SCREW, 1/4-20X1 Price: $2.99 |
| 63 |
14390G4 |
LOCK NUT,1/4"-20 Price: $1.99 |
| 64 |
16705G3 |
TRUSS HEAD PHILLIPS SCREW,1/4-20X3/4 Price: $2.99 |
| 65 |
14390G4 |
LOCK NUT,1/4"-20 Price: $1.99 |
| 66 |
800344 |
TRUSS HEAD PHILLIPS SCREW, #10-16 x 5/8 Price: $1.99 |
| 67 |
619756 |
RUBBER BUMPER Price: $4.99 |
| 68 |
616671 |
FLAT WASHER, 15.8 X 8.5 X 1.5 Price: $1.99 |
| 70 |
627809 |
BOARD,FILLER,DECK,REAR Price: $153.49 |
| 71 |
00789G2 |
TRUSS HEAD PHILLIPS SCREW, #10-24X1 1/4 Price: $0.99 |
| 72 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
