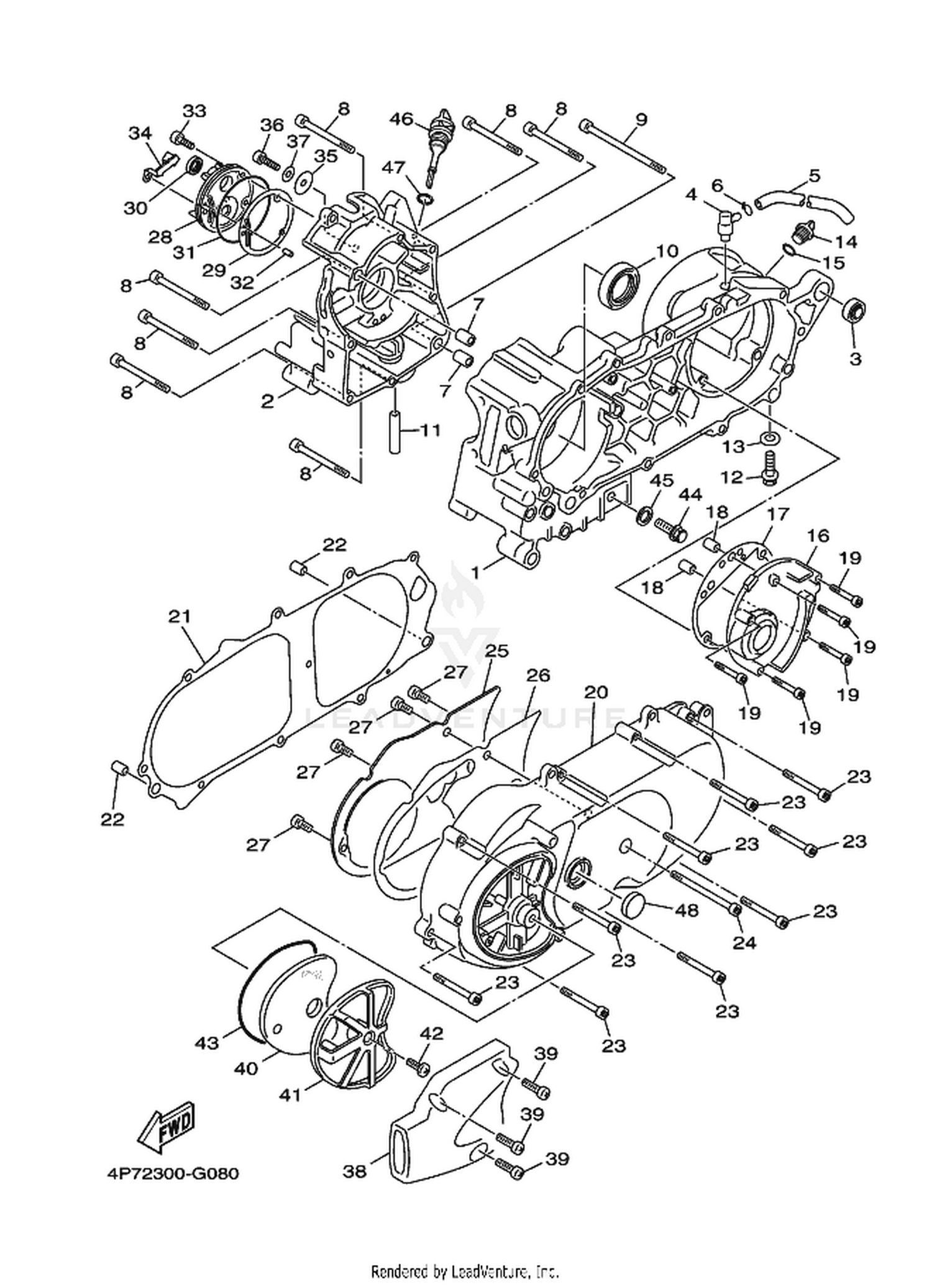

08 CRANKCASE

08 CRANKCASE

Parts (46)

RefPart NumberDescription
1 4S5-E5111-00 CRANKCASE 1 Price: Call Us
2 4S5-E5121-00 CRANKCASE 2 Price: Call Us
3 4KL-F2216-00 BUSH, REAR SHOCK ABSORBER Price: Call Us
4 5MH-E5371-00 BREATHER Price: Call Us
5 90446-13803 HOSE Price: Call Us
6 90467-12802 CLIP Price: Call Us
8 91312-06060 BOLT Price: Call Us
9 91312-06100 BOLT Price: Call Us
10 93102-22817 OIL SEAL Price: Call Us
11 1CC-E3416-00 PIPE, OIL 1 Price: Call Us
12 95812-08016 BOLT, FLANGE Price: Call Us
13 90430-08119 GASKET Price: Call Us
14 4KL-E5363-00 PLUG, OIL Price: Call Us
15 93210-14104 O-RING Price: Call Us
16 4KL-E5421-00 COVER, CRANKCASE 2 Price: Call Us
17 4KL-E5461-10 GASKET, CRANKCASE COVER 2 Price: Call Us
18 99530-10114 PIN, DOWEL Price: Call Us
19 91312-06040 BOLT Price: Call Us
20 5WG-E5411-10 COVER, CRANKCASE 1 Price: Call Us
21 5WG-E5451-10 GASKET, CRANKCASE COVER 1 Price: Call Us
22 99530-10114 PIN, DOWEL Price: Call Us
23 91312-06035 BOLT Price: Call Us
24 91312-06060 BOLT Price: Call Us
25 5WG-E5191-01 PLATE Price: Call Us
26 5WG-E5455-00 GASKET 1 Price: Call Us
27 98902-06012 SCREW, BIND Price: Call Us
28 4P7-E5417-00 COVER, CAP Price: Call Us
29 5WG-E5453-10 GASKET Price: Call Us
30 93102-19808 OIL SEAL Price: Call Us
31 93211-028A9 O-RING Price: Call Us
32 93604-12831 PIN, DOWEL Price: Call Us
33 91312-06020 BOLT Price: Call Us
34 4P7-E5113-00 PLATE Price: Call Us
35 90201-06097 WASHER, PLATE Price: Call Us
36 91312-06016 BOLT Price: Call Us
37 92902-06200 WASHER Price: Call Us
38 5WG-E5471-01 DUCT, AIR Price: Call Us
39 98902-06020 SCREW, BIND Price: Call Us
40 4P7-E5407-00 ELEMENT 1 Price: Call Us
41 5WG-E5404-01 GUIDE, ELEMENT Price: Call Us
42 98902-06016 SCREW, BIND Price: Call Us
43 5WG-E5472-00 SEAL, AIR DUCT Price: Call Us
44 90340-12806 PLUG, STRAIGHT SCREW Price: Call Us
45 90201-12172 WASHER, PLATE Price: Call Us
46 5WG-E5362-02 PLUG, OIL LEVEL Price: Call Us
47 5WG-E3769-00 O-RING Price: Call Us
