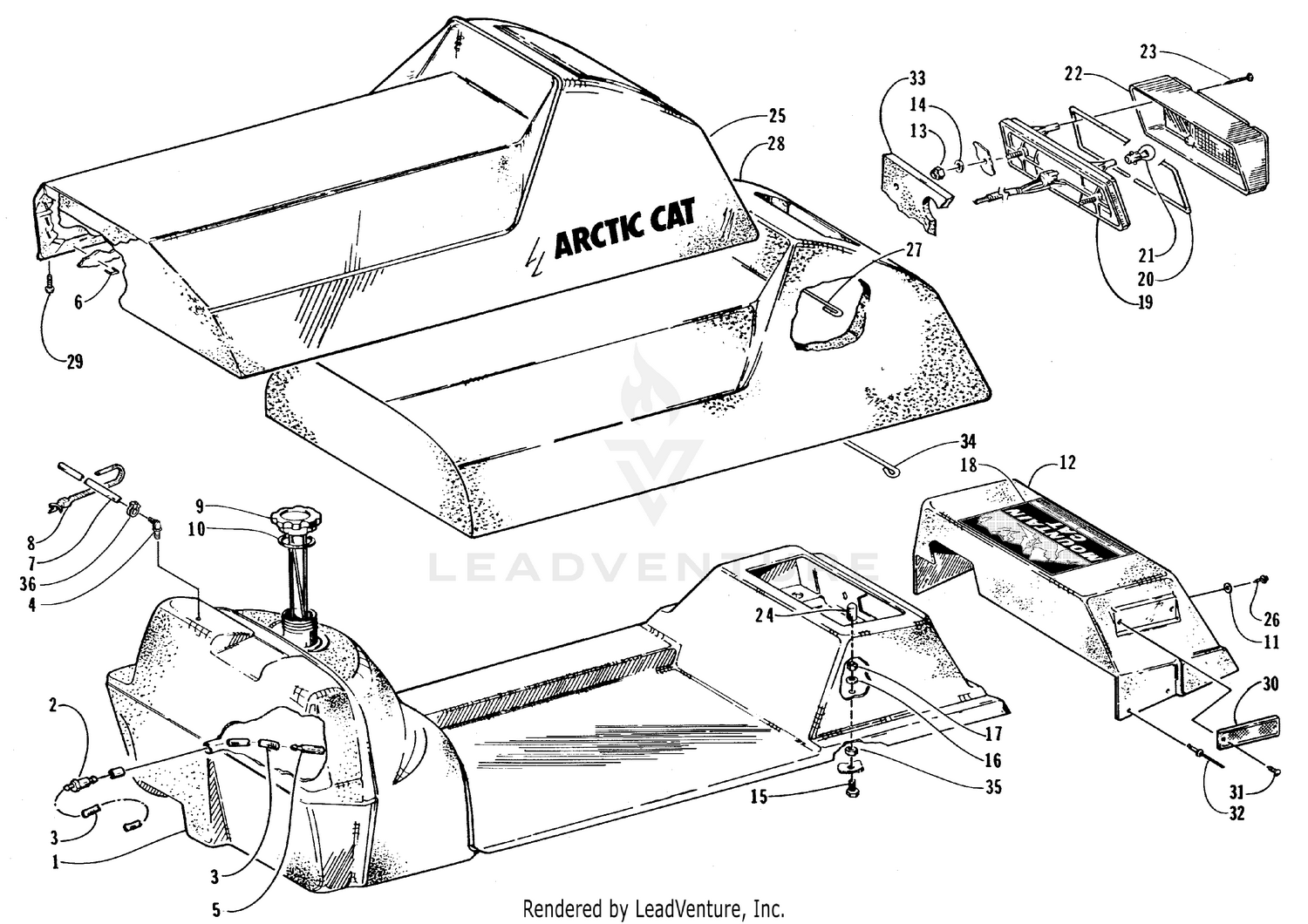

GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY [67002]

Parts (36)

Ref	Part Number	Description
1	0770-213	Tank, Gas/Seat Base (inc. 2-5) Price: $245.95
2	0670-042	OUTLET,GAS TANK Price: $20.56
3	0610-008	Hose, Gas Line - 25' Price: $97.95
3	0610-017	Hose, Gas - 100 ft Price: $237.95
4	0670-572	VENT,GAS TANK Price: $2.49
5	0510-358	Strainer, Gas Tank Price: $7.29
6	0624-528	Staple Price: $169.95
7	0610-010	Hose, Vent - 25 ft Price: $17.29
8	0623-164	Tie, Cable - Push-Mount Price: $1.09
9	0670-525	Cap, Gas Tank Price: $39.95
10	0109-733	Seal, Gas Cap Price: $3.67
11	8050-157	WASHER,FLAT- #10 X .500 X .049 Z&Y Price: $1.32
12	0616-022	Cover, Tunnel Extension Price: $109.95
13	0623-038	Nut Price: $0.35
14	0623-184	Washer Price: $1.20
15	8002-042	Screw, Cap Price: $0.48
16	0623-184	Washer Price: $1.20
17	8040-366	Nut, Lock Price: $0.35
18	2611-640	Decal, "Mountain Cat" Price: $34.95
19	0609-091	Taillight w/Socket Assembly Price: $72.95
20	0609-092	Gasket, Taillight Lens Price: $14.55
21	0109-460	Bulb, Stop/Taillight Price: $2.17
22	0609-090	Lens, Taillight Price: $26.95
23	0609-093	Screw, Retaining Price: $0.71
24	0623-404	Cap, Protector Price: $1.92
25	0716-846	COVER, SEAT - ASSY 98 THC(RB 0716-602) Price: $209.95
26	0623-378	SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y Price: $0.86
27	0606-057	Wire, Seat Price: $5.34
28	0716-532	Foam, Seat Cushion Price: $297.95
29	0124-031	Screw, Self-Tapping Price: $3.59
30	0606-029	Reflector - Red Price: $14.49
31	0623-269	Clip, Retaining Price: $1.32
32	8061-426	Rivet Price: $1.00
33	0617-098	Foam, Seat-Base/Taillight Price: $4.49
34	1606-150	Wire, Seat Price: $3.26
35	8041-366	Nut, Lock Price: $0.35
