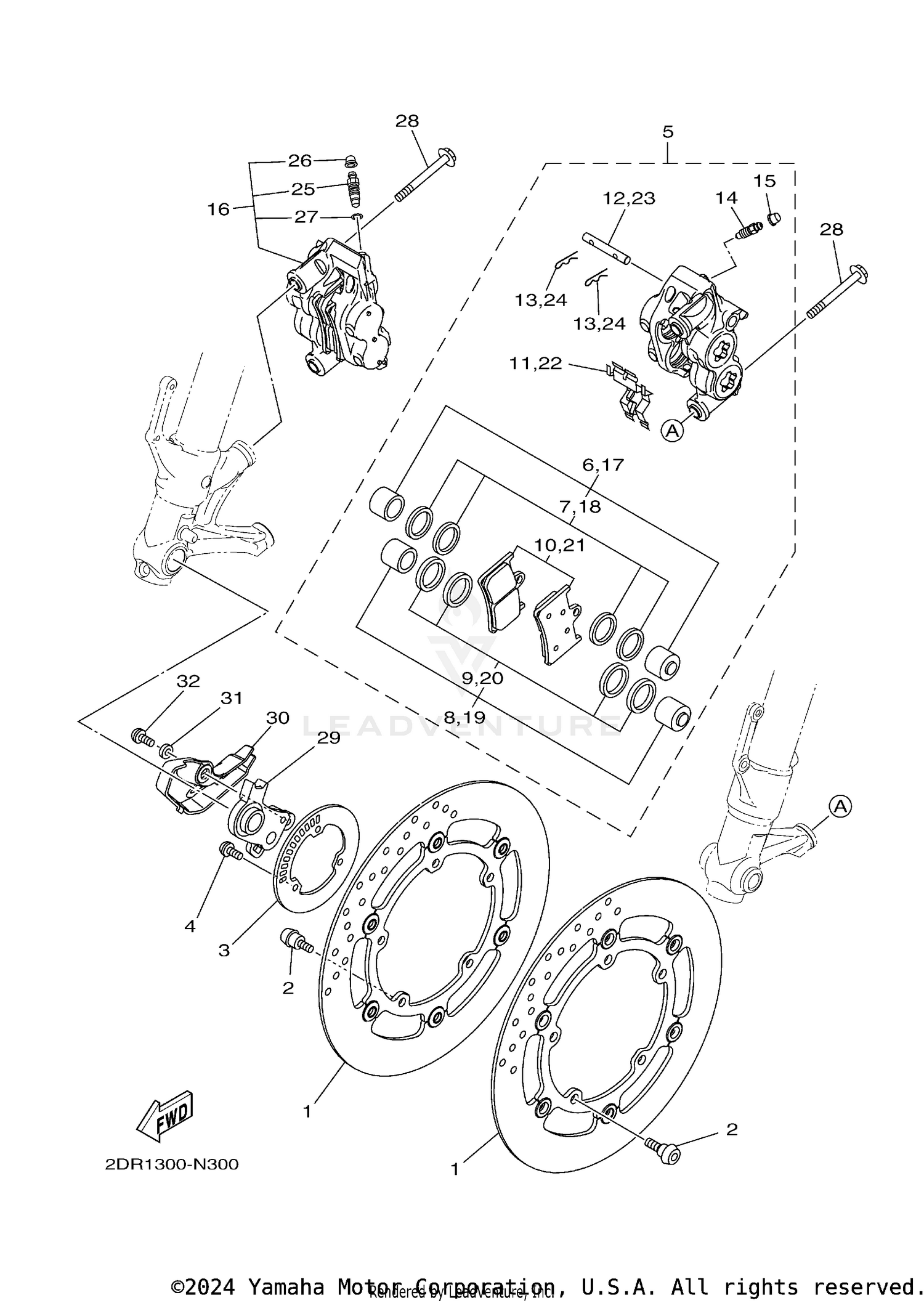

| Ref | Part Number | Description |
|---|
| 1 |
1RC-2581T-00-00 |
DISC BRAKE ASSY Price: $184.99 |
| 2 |
90109-06254-00 |
BOLT This part replaces 90109-064G6-00. Price: $3.60 |
| 3 |
2DR-2517G-00-00 |
ROTOR, SENSOR Price: $109.99 |
| 4 |
90149-05030-00 |
SCREW This part replaces 90149-05029-00. Price: $2.80 |
| 5 |
1RC-2580T-00-00 |
CALIPER ASSY (LEFT) Price: $524.99 |
| 6 |
4SV-25802-10-00 |
PISTON ASSY, CALIPER Price: $212.99 |
| 7 |
3GM-25803-10-00 |
CALIPER SEAL KIT Price: $58.99 |
| 8 |
4SV-25802-00-00 |
PISTON ASSY, CALIPER Price: $168.99 |
| 9 |
3MA-25803-10-00 |
CALIPER SEAL KIT Price: $60.99 |
| 10 |
5SL-25805-00-00 |
BRAKE PAD KIT Price: $69.99 |
| 11 |
13S-25919-00-00 |
SUPPORT, PAD Price: $30.99 |
| 12 |
4SV-25924-00-00 |
PIN, PAD Price: $46.99 |
| 13 |
3GM-25925-00-00 |
CLIP Price: $12.99 |
| 14 |
1J3-25824-00-00 |
SCREW, BLEED Price: $5.99 |
| 15 |
306-25825-01-00 |
CAP Price: $10.99 |
| 16 |
2DR-2580U-00-00 |
CALIPER ASSY (RIGHT) Price: $445.99 |
| 17 |
4SV-25802-10-00 |
PISTON ASSY, CALIPER Price: $212.99 |
| 18 |
3GM-25803-10-00 |
CALIPER SEAL KIT Price: $58.99 |
| 19 |
4SV-25802-00-00 |
PISTON ASSY, CALIPER Price: $168.99 |
| 20 |
3MA-25803-10-00 |
CALIPER SEAL KIT Price: $60.99 |
| 21 |
5SL-25805-00-00 |
BRAKE PAD KIT Price: $69.99 |
| 22 |
13S-25919-00-00 |
SUPPORT, PAD Price: $30.99 |
| 23 |
4SV-25924-00-00 |
PIN, PAD Price: $46.99 |
| 24 |
3GM-25925-00-00 |
CLIP Price: $12.99 |
| 25 |
5VS-25824-00-00 |
SCREW, BLEED Price: $45.99 |
| 26 |
306-25825-01-00 |
CAP Price: $10.99 |
| 27 |
5VS-25975-00-00 |
RUBBER, BUSHING Price: $4.20 |
| 28 |
90105-10440-00 |
BOLT, FLANGE Price: $6.49 |
| 29 |
2DR-2517A-00-00 |
HOUSING, SENSOR FRONT Price: $140.99 |
| 30 |
2DR-27491-00-00 |
PROTECTOR Price: $10.49 |
| 31 |
90387-06106-00 |
COLLAR This part replaces 90387-06372-00. Price: $8.49 |
