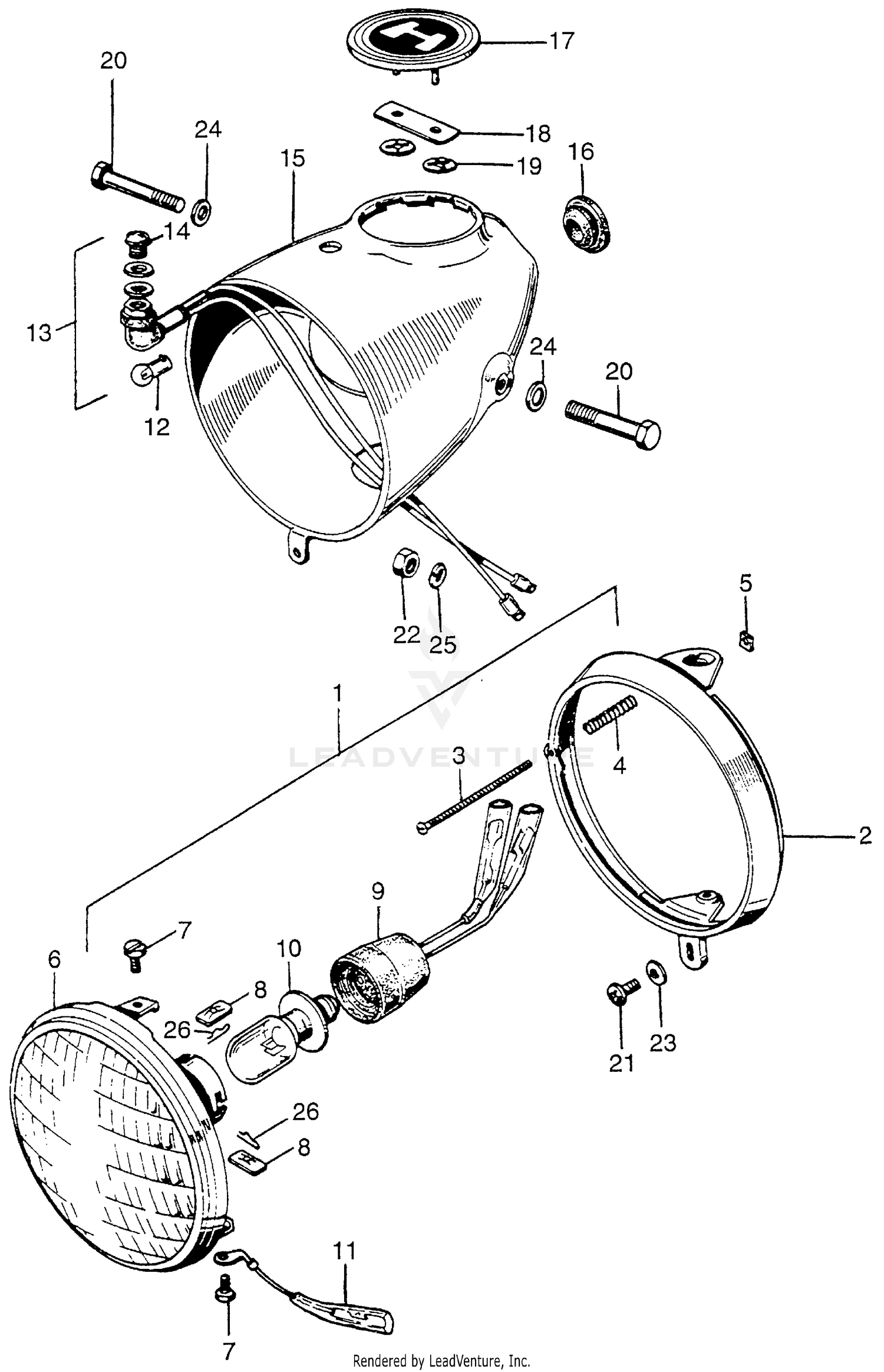

| Ref | Part Number | Description |
|---|
| 1 |
33100-081-600 |
HEADLIGHT ASSY. This part replaces 33100-063-670. Price: $101.32 |
| 2 |
33101-045-003 |
RIM, HEADLIGHT This part replaces 33101-063-670. Price: $13.30 |
| 3 |
33102-041-003 |
SCREW, HEADLIGHT BEAM ADJ. (STANLEY) Price: $2.56 |
| 4 |
33107-001-020 |
SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE) This part replaces 33107-001-003. Price: $5.31 |
| 5 |
33117-041-003 |
NUT, BEAM ADJ. Price: $2.24 |
| 6 |
33120-063-670 |
HEADLIGHT UNIT (NOT AVAILABLE) Price: $57.41 |
| 7 |
33125-292-670 |
SCREW, UNIT HOLDER Price: $4.25 |
| 8 |
33128-292-670 |
NUT, UNIT HOLDER Price: $3.69 |
| 9 |
33130-063-670 |
SOCKET, HEADLIGHT (NOT AVAILABLE) Price: $7.83 |
| 10 |
34901-001-025 |
BULB, HEADLIGHT (6V15/15W) (STANLEY) Price: $23.15 |
| 11 |
34902-044-000 |
GROUND, HEADLIGHT (NOT AVAILABLE) This part replaces 34902-044-670. Price: $4.43 |
| 13 |
37550-063-670 |
LAMP ASSY., BEAM PILOT (NOT AVAILABLE) This part replaces 37550-044-671. Price: $46.15 |
| 14 |
37551-044-670 |
LENS, BEAM PILOT (NOT AVAILABLE) Price: $7.63 |
| 15 |
61301-063-670Z |
CASE, HEADLIGHT (NOT AVAILABLE) This part replaces 61301-063-670BY. Price: $83.12 |
| 17 |
61402-045-671 |
EMBLEM, LIGHT CASE (NOT AVAILABLE) Price: $26.93 |
| 18 |
61403-045-670 |
PLATE, EMBLEM SETTING (NOT AVAILABLE) Price: $3.98 |
| 19 |
90315-504-000 |
NUT, SPEED (3MM) Price: $4.03 |
| 20 |
92201-06035-0A |
BOLT, HEX. (6X35) This part replaces 92000-06036. Price: $1.92 |
| 21 |
93500-05012-0A |
SCREW, PAN (5X12) Price: $0.95 |
| 22 |
94001-06200-0S |
NUT, HEX. (6MM) This part replaces 90310-KA3-711. Price: $1.37 |
| 23 |
94101-05000 |
WASHER, PLAIN (5MM) Price: $1.03 |
| 24 |
94101-06800 |
WASHER, PLAIN (6MM) This part replaces 94101-06000. Price: $0.68 |
| 25 |
94111-06000 |
WASHER, SPRING (6MM) Price: $0.98 |
