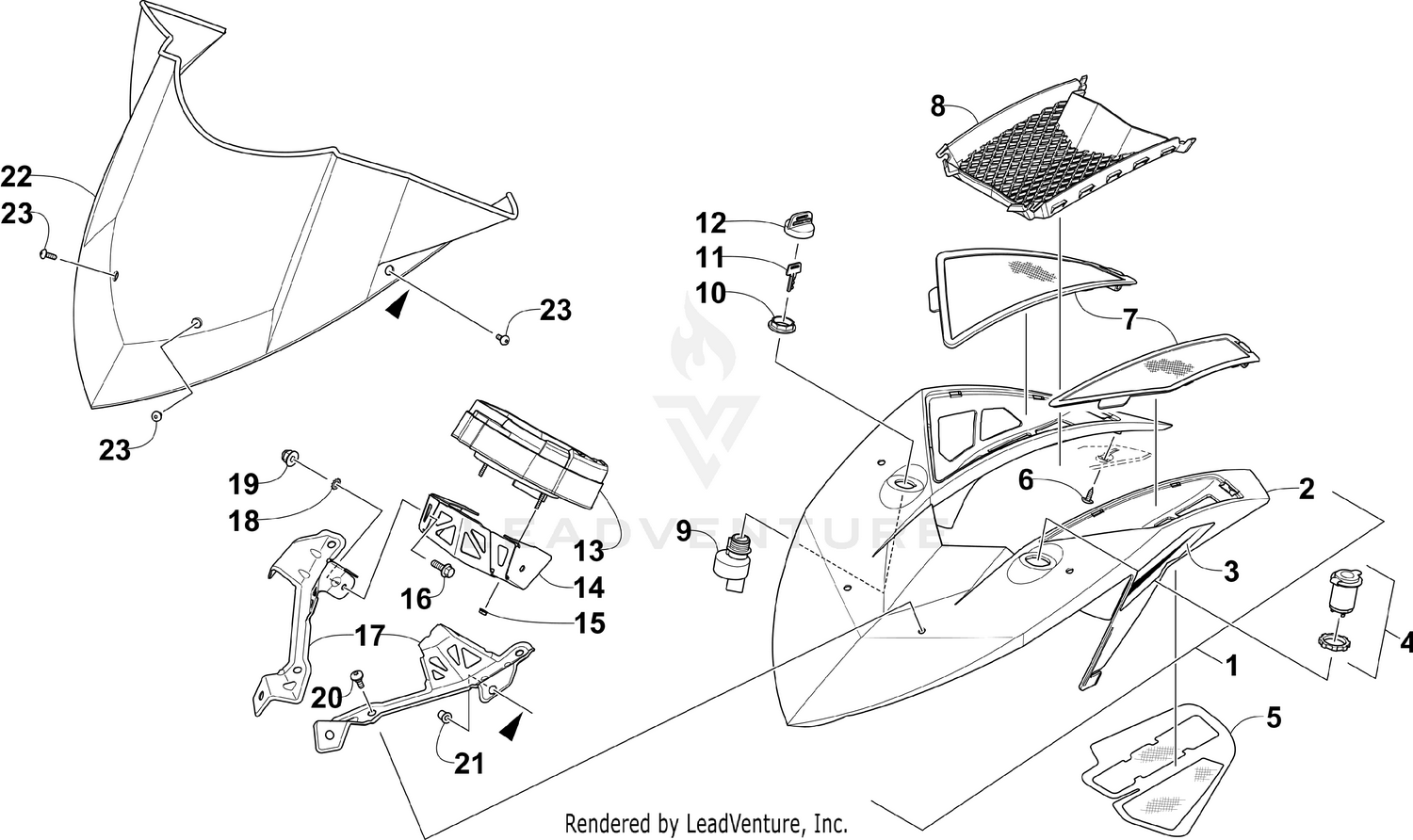

WINDSHIELD AND INSTRUMENTS ASSEMBLIES [103692]

WINDSHIELD AND INSTRUMENTS ASSEMBLIES [103692]

Parts (25)

RefPart NumberDescription
2 5706-239 Pod, Instrument - White Price: $175.95
3 2621-482 Decal, Pod - Right Price: $5.34
3 2621-483 Decal, Pod - Left Price: $5.34
4 0641-897 Outlet, Accessory - 12V Price: $25.95
5 0608-688 Screen, Intake - Right Price: $28.95
5 0608-689 Screen, Intake - Left Price: $28.95
6 1623-129 Screw, Self-Tapping Price: $0.29
7 0608-736 Vent, Intake - Right Price: $21.95
7 0608-737 Vent, Intake - Left Price: $24.95
8 6606-577 Vent, Intake Price: $40.95
10 0430-050 Nut, Retaining Price: $2.05
11 0430-042 Key, Ignition- Y series- Left side cut Price: $7.23
11 0430-043 Key, Ignition- Z series- Right side cut Price: $7.23
12 0430-054 Cover, Key Price: $16.92
13 0620-398 Gauge, Speedometer Price: $846.95
14 5706-651 Bracket, Speedometer Gauge - Center - White Price: $214.95
15 0423-493 NUT,HEX-M4-.7 W/STAR WSR Price: $0.35
16 8410-616 Screw, Cap Price: $1.45
17 5706-652 Bracket, Speedometer Gauge - Right - White Price: $258.95
17 5706-653 Bracket, Speedometer Gauge - Left - White Price: $166.95
18 8053-212 Washer, Lock Price: $0.23
19 8427-602 Nut, Hex Price: $0.23
20 0423-355 Screw, Shoulder Price: $1.08
21 1623-764 Nut, Expansion Price: $5.70
22 6606-578 Windshield - Low - White Price: $114.95
