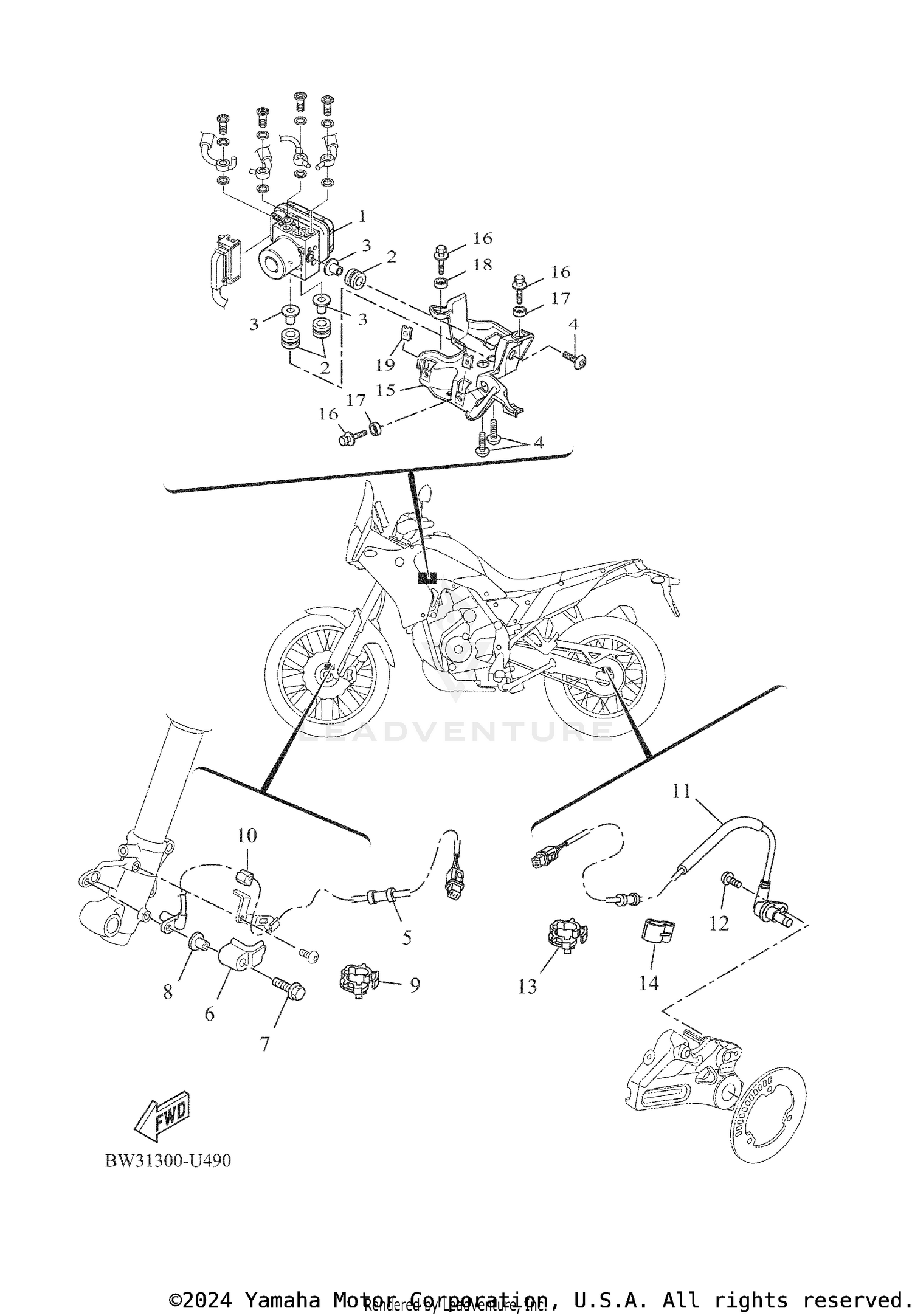

ELECTRICAL 3
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BW3-85930-08-00 | HYDRAULIC UNIT ASSY Price: $780.99 |
| 2 | 90480-14229-00 | GROMMET Price: $9.49 |
| 3 | 90387-06313-00 | COLLAR Price: $3.40 |
| 4 | 90111-06051-00 | BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 5 | BW3-85970-02-00 | WHEEL SENSOR ASSY, FRONT Price: $146.99 |
| 6 | BW3-F517A-00-00 | HOUSING, SENSOR FR Price: $21.99 |
| 7 | 95814-06030-00 | BOLT, FLANGE This part replaces 95824-06030-00. Price: $2.99 |
| 8 | 90387-06221-00 | COLLAR Price: $5.49 |
| 9 | 90464-12013-00 | CLAMP Price: $9.49 |
| 10 | 90464-05188-00 | CLAMP Price: $5.49 |
| 11 | BW3-85980-01-00 | WHEEL SENSOR ASSY, REAR Price: $145.99 |
| 12 | 95817-06016-00 | BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 13 | 90464-12013-00 | CLAMP Price: $9.49 |
| 14 | 90464-10233-00 | CLAMP Price: $8.49 |
| 15 | BW3-H5991-01-00 | BRACKET, UNIT Price: $123.99 |
| 16 | 90119-06209-00 | BOLT, WITH WASHER Price: $6.49 |
| 17 | 90387-1001B-00 | COLLAR Price: $3.55 |
| 18 | 90387-06106-00 | COLLAR This part replaces 90387-06372-00. Price: $8.49 |
