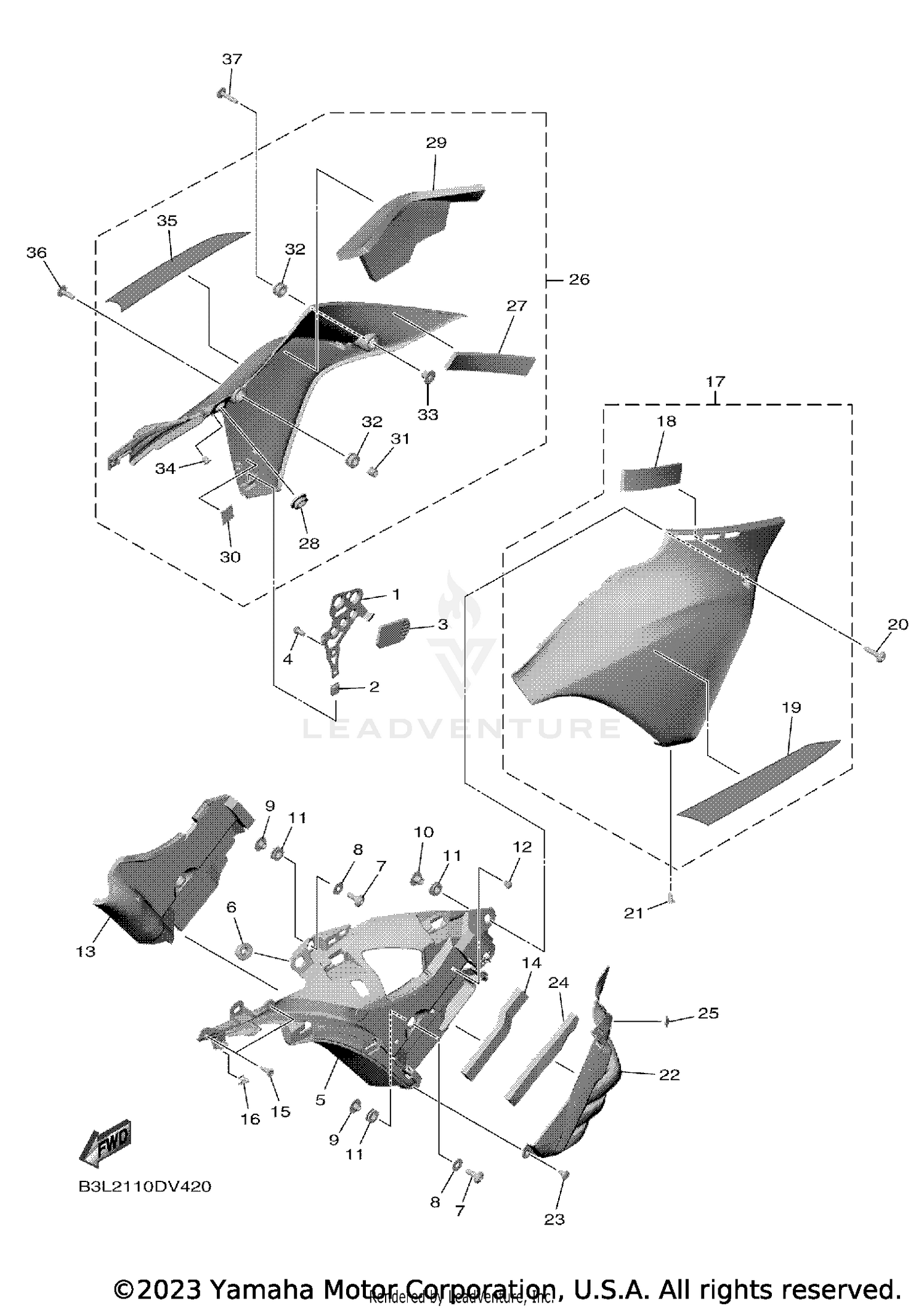

COWLING 3
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B3L-2833J-00-00 | BRACKET 12 Price: $35.99 |
| 2 | 5PW-2411J-01-00 | DAMPER, SIDE COVER Price: $8.49 |
| 3 | B67-21488-00-00 | DAMPER Price: $14.49 |
| 4 | 92012-06012-00 | BOLT, BUTTON HEAD Price: $4.70 |
| 5 | B3L-2836A-00-00 | BRACKET 1 Price: $43.99 |
| 6 | 90480-01559-00 | GROMMET Price: $6.49 |
| 7 | 90149-06302-00 | SCREW Price: $6.49 |
| 8 | 90201-06013-00 | WASHER, PLATE This part replaces 90201-06035-00. Price: $5.49 |
| 9 | 90387-06323-00 | COLLAR Price: $6.49 |
| 10 | 90387-067K8-00 | COLLAR Price: $8.49 |
| 11 | 90480-13004-00 | GROMMET Price: $8.49 |
| 12 | 90338-07180-00 | PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 13 | B3L-28415-00-00 | DAMPER 1 Price: $46.99 |
| 14 | 90520-10035-00 | DAMPER, PLATE Price: $2.95 |
| 15 | 90269-06008-00 | RIVET Price: $9.49 |
| 16 | 90468-040A0-00 | CLIP Price: $9.49 |
| 18 | 4ML-12465-00-00 | DAMPER, RADIATOR Price: $4.25 |
| 20 | 90111-06030-00 | BOLT, HEXAGON SOCKET BUTTON Price: $4.75 |
| 21 | 90269-06018-00 | RIVET Price: $2.45 |
| 22 | B3L-2843J-00-00 | COVER 3 Price: $31.99 |
| 23 | 90269-06018-00 | RIVET Price: $2.45 |
| 24 | 90520-10035-00 | DAMPER, PLATE Price: $2.95 |
| 25 | B3L-21649-00-00 | DAMPER Price: $0.40 |
| 27 | 4ML-12465-00-00 | DAMPER, RADIATOR Price: $4.25 |
| 28 | 90480-01559-00 | GROMMET Price: $6.49 |
| 29 | 2CR-28455-00-00 | DAMPER, 4 Price: $5.99 |
| 30 | 3TB-28217-00-00 | DAMPER 1 Price: $5.99 |
| 31 | 90387-06260-00 | COLLAR Price: $9.49 |
| 32 | 90480-14003-00 | GROMMET Price: $9.49 |
| 33 | 90387-067K8-00 | COLLAR Price: $8.49 |
| 34 | 90338-07180-00 | PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 36 | 90149-06302-00 | SCREW Price: $6.49 |
