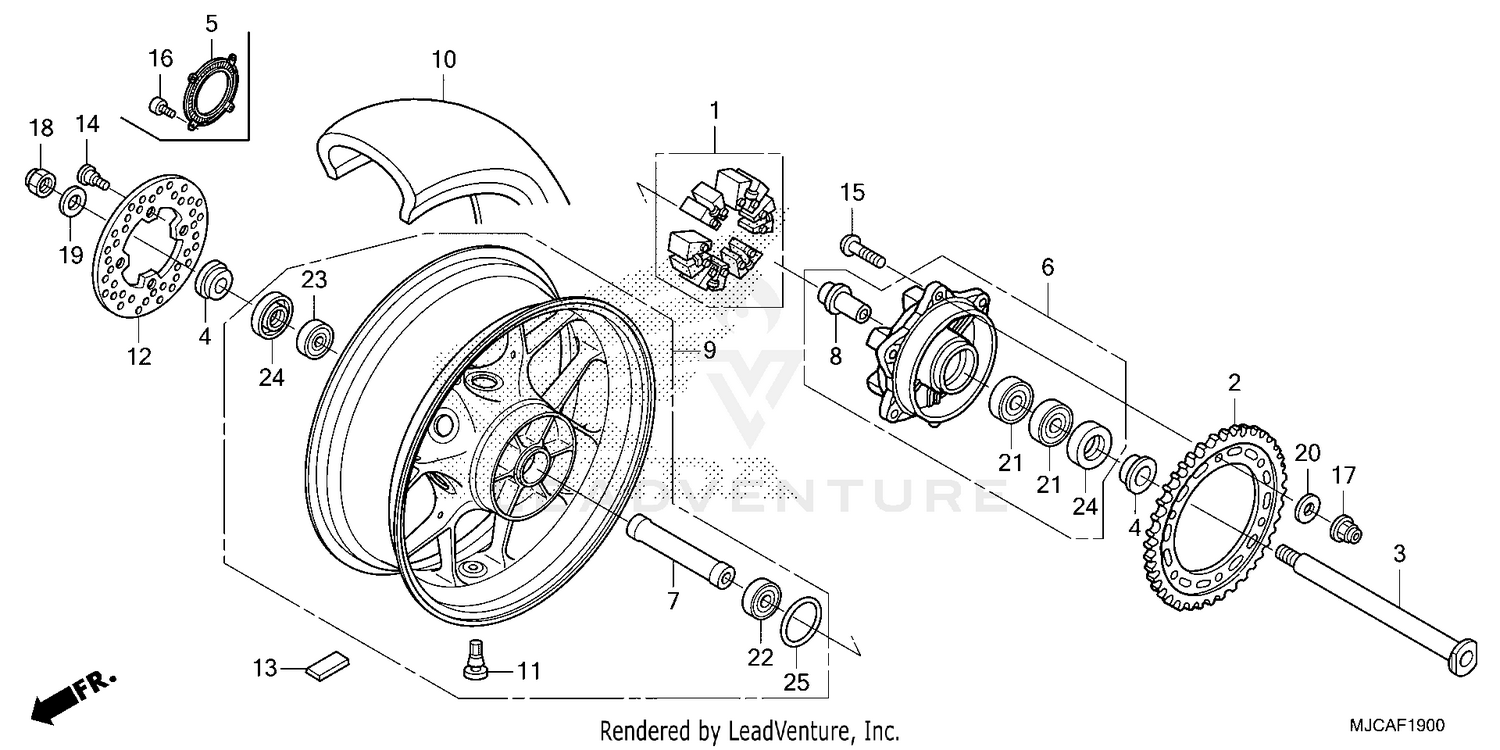

| Ref | Part Number | Description |
|---|
| 1 |
06410-MFJ-D00 |
DAMPER SET, WHEEL Price: $70.05 |
| 2 |
41201-MFJ-A00 |
SPROCKET, FINAL DRIVEN (42T) Price: $96.36 |
| 3 |
42301-MJC-A00 |
AXLE, RR. WHEEL Price: $84.73 |
| 4 |
42311-MJC-A00 |
COLLAR, RR. WHEEL SIDE Price: $24.13 |
| 5 |
42515-MFJ-A50 |
RING, RR. PULSER Price: $61.24 |
| 6 |
42615-MJC-A00 |
FLANGE SUB-ASSY., RR. DRIVEN Price: $274.76 |
| 7 |
42620-MJC-A00 |
COLLAR, RR. AXLE DISTANCE Price: $41.93 |
| 8 |
42625-MEL-000 |
COLLAR B, RR. WHEEL DISTANCE Price: $35.62 |
| 9 |
42650-MJC-A01ZC |
WHEEL SUB-ASSY., RR. (TYPE2) Price: $1,212.47 |
| 10 |
42711-MJC-A03 |
TIRE (180/55ZR17) Price: $356.01 |
| 11 |
42753-ML7-004 |
VALVE, RIM (DUNLOP) Price: $15.44 |
| 12 |
43251-MFJ-A51 |
DISK, RR. BRAKE Price: $290.33 |
| 13 |
44721-MGC-003 |
WEIGHT, BALANCE (10G) Price: $5.04 |
| 13 |
44722-MGC-003 |
WEIGHT, BALANCE (15G) Price: $6.00 |
| 13 |
44723-MGC-003 |
WEIGHT, BALANCE (20G) Price: $6.00 |
| 14 |
90105-MV9-003 |
BOLT, DISK (8X24) (TSUKIBOSHI) Price: $7.80 |
| 15 |
90121-MCF-D30 |
BOLT (10X30) Price: $3.35 |
| 16 |
90131-MFJ-A50 |
BOLT, TORX (5X7) Price: $3.47 |
| 17 |
90304-KAE-871 |
NUT, U (10MM) Price: $5.44 |
| 18 |
90305-MFJ-A51 |
U-NUT (22MM) Price: $14.02 |
| 19 |
90401-MCJ-000 |
WASHER (23X37X2.5) Price: $6.35 |
| 20 |
90502-MCF-000 |
WASHER (10MM) Price: $3.20 |
| 21 |
91051-HA7-671 |
BEARING, RADIAL BALL (28X52X12) Price: $41.20 |
| 22 |
91052-MCF-003 |
BEARING, RADIAL BALL (6005) Price: $18.84 |
| 23 |
91053-MAZ-003 |
BEARING, RADIAL BALL (6205X2) Price: $21.69 |
| 24 |
91254-MJC-A01 |
DUST SEAL (35X52X7.5) Price: $12.76 |
