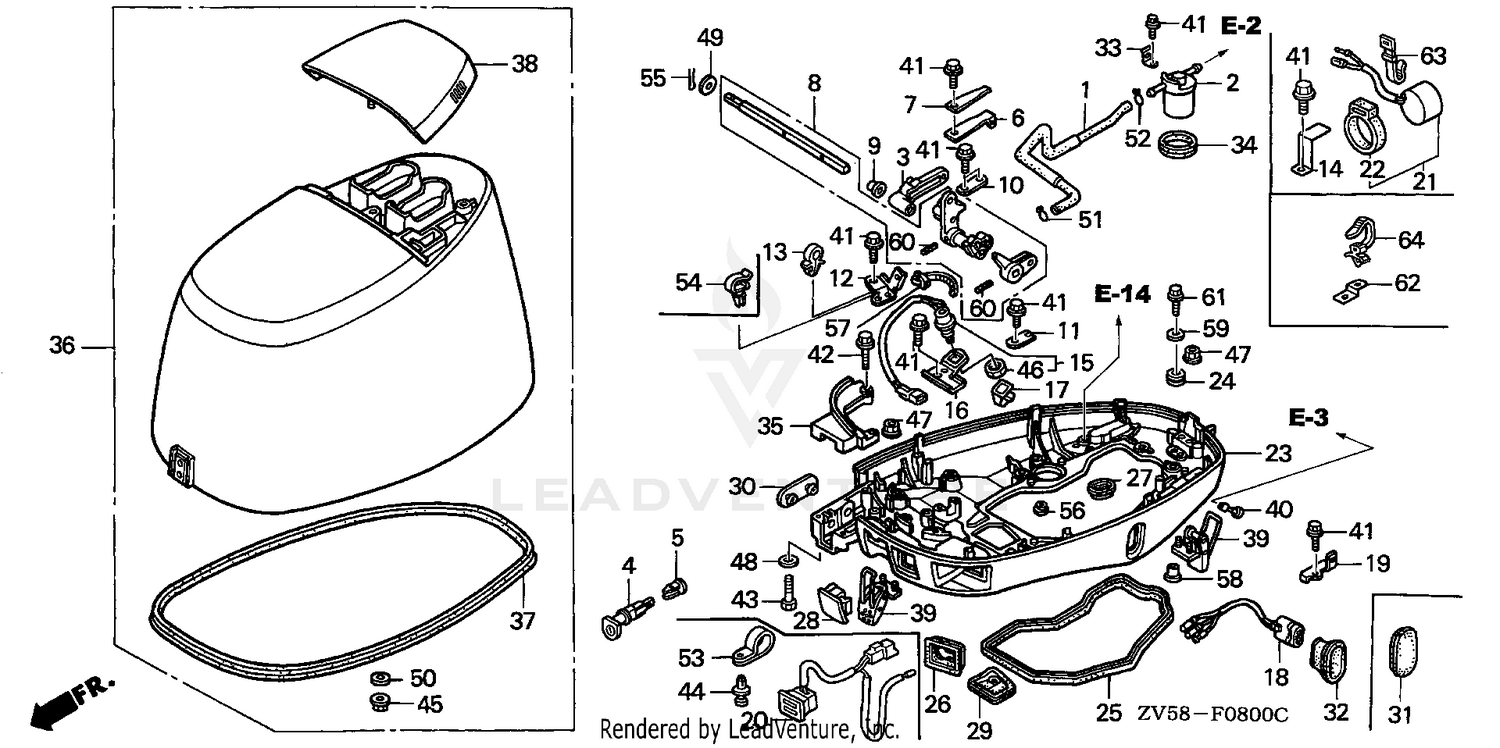

| Ref | Part Number | Description |
|---|
| 1 |
16850-ZV5-000 |
TUBE, FUEL Price: $19.76 |
| 2 |
16900-SA5-004 |
STRAINER, FUEL (TOYO ROKI) Price: $15.64 |
| 3 |
17930-ZV5-000 |
ARM, THROTTLE Price: $25.66 |
| 4 |
17951-ZV5-000 |
KNOB, CHOKE Price: $12.46 |
| 5 |
17953-ZV5-000 |
GUIDE, CHOKE KNOB Price: $7.74 |
| 6 |
24210-ZV1-010 |
SEE PART DETAILS - PRI; SPRING, CLICK Price: $14.04 |
| 7 |
24221-ZV4-010 |
SEE PART DETAILS - PRI; SPRING, CLICK ASSIST Price: $10.00 |
| 8 |
24610-ZV5-010 |
SEE PART DETAILS - PRI; SHAFT, SHIFT Price: $65.70 |
| 9 |
24621-ZV4-010 |
BUSH, SHAFT Price: $5.94 |
| 10 |
24625-ZV5-010 |
SEE PART DETAILS - PRI; PLATE, SHIFT Price: $3.08 |
| 11 |
24626-ZV5-010 |
SEE PART DETAILS - PRI; PLATE, SHIFT SHAFT Price: $3.08 |
| 12 |
32112-ZV5-010 |
SEE PART DETAILS - PRI; BRACKET, CABLE CLIP (S) Price: $5.38 |
| 13 |
32660-MJ6-710 |
CLAMP, WIRE Price: $4.70 |
| 15 |
04304-ZW9-020 |
SWITCH SET, NEUTRAL This part replaces 04304-ZW9-010. Price: $36.69 |
| 16 |
35616-ZV5-010 |
SEE PART DETAILS - PRI; BRACKET, NEUTRAL SWITCH Price: $12.34 |
| 17 |
35618-ZW9-020 |
PLATE, NEUTRAL SWITCH (NOT AVAILABLE) Price: $6.42 |
| 18 |
35640-ZV5-824 |
SWITCH ASSY., POWER TILT Price: $64.20 |
| 19 |
35645-ZV5-010 |
SEE PART DETAILS - PRI; STAY, POWER TILT SWITCH Price: $10.24 |
| 23 |
40101-ZV5-000ZA |
CASE, ENGINE (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U) Price: $552.90 |
| 24 |
40102-ZV5-000 |
GROMMET, CASE (LOWER) Price: $3.62 |
| 25 |
40103-ZV5-000 |
SEAL, CASE (LOWER) Price: $33.34 |
| 26 |
40106-ZV5-000 |
GROMMET, CASE (LOWER) (B) Price: $10.80 |
| 27 |
40107-ZV5-820 |
GROMMET, CASE (LOWER) (C) Price: $8.30 |
| 28 |
40108-ZV5-000 |
GROMMET, CASE (LOWER) (D) Price: $8.48 |
| 29 |
40109-ZV5-000 |
GROMMET, CASE (LOWER) (E) Price: $19.26 |
| 30 |
40113-ZV5-000 |
GROMMET, CASE (LOWER) (F) Price: $8.82 |
| 32 |
40114-ZV5-821 |
SEE PART DETAILS - PRI; GROMMET, CASE (LOWER) Price: $14.02 |
| 33 |
40145-ZV5-000 |
RETAINER, FUEL STRAINER Price: $5.22 |
| 34 |
40146-ZV5-000 |
GROMMET, FUEL STRAINER Price: $11.06 |
| 35 |
40151-ZV5-000ZA |
CASE, SEPARATE *NH282MU* (OYSTER SILVER METALLIC-U) Price: $73.92 |
| 36 |
63100-ZV5-010ZA |
SEE PART DETAILS - PRI; COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U) Price: $1,382.66 |
| 37 |
63102-ZV5-300 |
SEAL, ENGINE COVER Price: $83.18 |
| 38 |
63105-ZV5-000ZA |
HANDLE, TILT *NH282MU* (OYSTER SILVER METALLIC-U) Price: $119.12 |
| 39 |
63240-ZV5-000 |
LEVER, FASTENER Price: $54.80 |
| 40 |
82873-ZV5-003 |
GROMMET, WATER CHECK This part replaces 82873-ZV5-000. Price: $7.82 |
| 41 |
90013-ZV0-010 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) Price: $2.46 |
| 42 |
90103-ZZ5-M01 |
BOLT (6X28) (CT200) This part replaces 90015-ZV0-C10. Price: $2.90 |
| 43 |
90120-ZV4-010 |
SEE PART DETAILS - PRI; BOLT, HEX. (6X40) Price: $3.34 |
| 44 |
90127-ZV5-003 |
SCREW, RIVET (5X10) Price: $2.66 |
| 45 |
90301-473-003 |
NUT, U (6MM) (FUSE RASHI) Price: $5.62 |
| 46 |
90302-ZV5-003 |
NUT, HEX. (20MM) Use up to Frame SN 1300359. Price: $7.22 |
| 47 |
90205-PP9-020 |
NUT, SELF-LOCK (6MM) Price: $12.14 |
| 48 |
90506-ZV4-000 |
WASHER, PLAIN (6MM) Use up to Frame SN 4800342. Price: $3.36 |
| 49 |
90508-ZV1-000 |
WASHER (7.5MM) Price: $5.10 |
| 50 |
90512-921-010 |
SEE PART DETAILS - PRI; WASHER (6MM) Price: $1.46 |
| 51 |
90603-ZV4-000 |
CLIP, TUBE (B10) Price: $1.94 |
| 52 |
90604-ZV0-000 |
SEE PART DETAILS - PRI; CLIP, TUBE (B12) Price: $1.88 |
| 53 |
90628-750-000 |
CLIP (14MM) Price: $2.90 |
| 55 |
90759-ZV1-000 |
SEE PART DETAILS - PRI; PIN, SPLIT (2.0) This part replaces 90756-881-000. Price: $1.94 |
| 56 |
90801-SB0-000 |
PLUG, CHANGE REINFORCEMENT Price: $4.76 |
| 57 |
91547-SF4-003 |
BAND, WIRE HARNESS (123.5MM) (BLUE) Price: $8.00 |
| 58 |
91553-ZV5-010 |
SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI) Price: $3.66 |
| 59 |
90508-ZZ5-M01 |
WASHER, PLAIN (6MM) This part replaces 90508-ZY3-000. Price: $2.48 |
| 60 |
94305-30203 |
PIN, SPRING (3X20) Price: $1.62 |
| 61 |
90016-ZZ5-M01 |
BOLT, FLANGE (6X28) This part replaces 90016-ZY3-000. Price: $1.94 |
