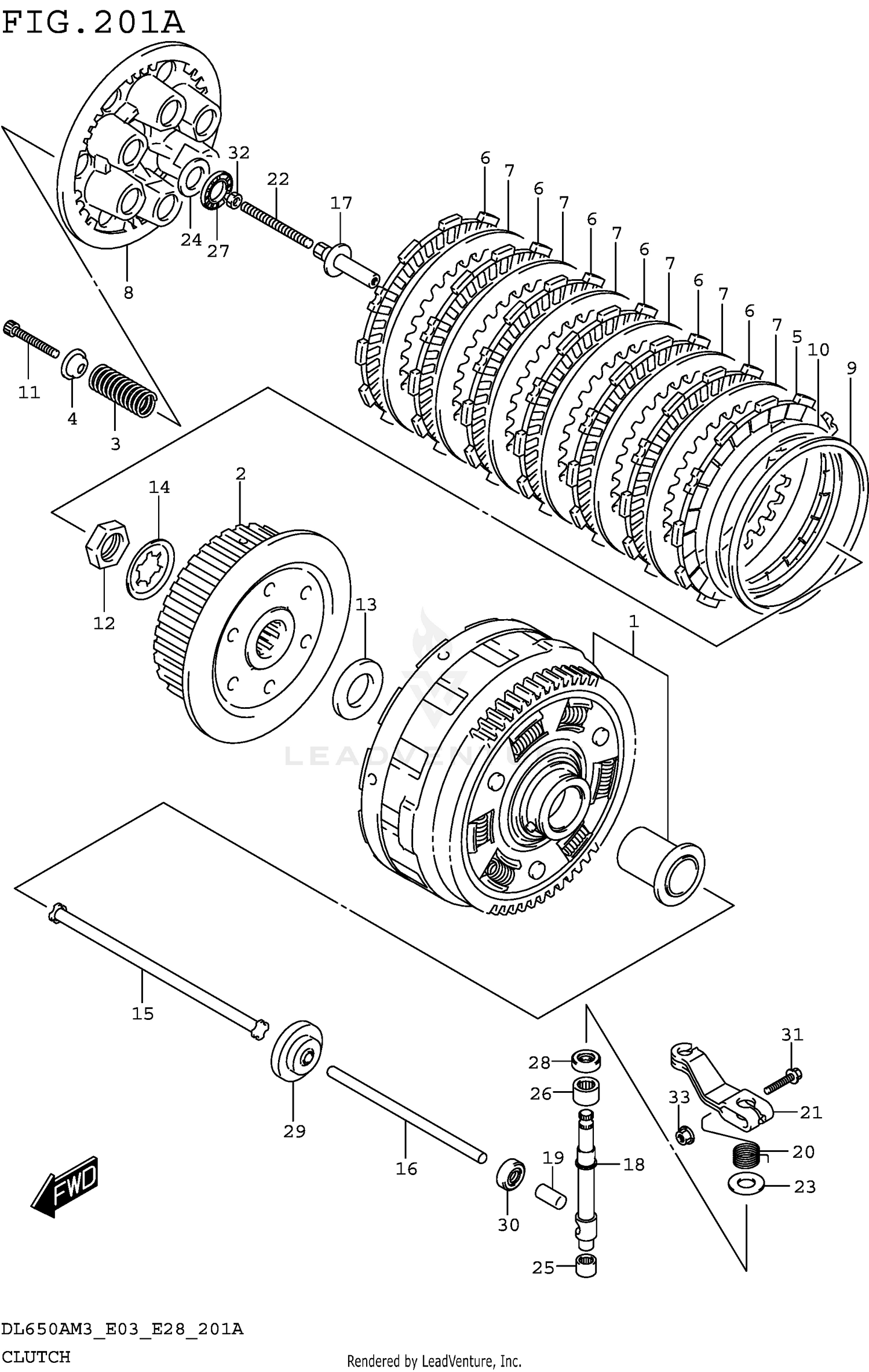

| Ref | Part Number | Description |
|---|
| 1 |
21200-44860 |
GEAR ASSY,PRI DRIVEN (NT:71) Price: $427.86 |
| 2 |
21411-44101 |
HUB,CLUTCH SLEEVE Price: $93.04 |
| 3 |
21413-17G10 |
SPRING, CLUTCH Price: $9.01 |
| 4 |
21414-29F00 |
WASHER Price: $7.94 |
| 6 |
21441-29F30 |
PLATE,CLUTCH DRIVE (T:3.0) Price: $35.19 |
| 7 |
21451-28C31 |
PLATE,CLUTCH DRIVEN (T:1.6) Price: $14.58 |
| 8 |
21462-14301 |
PLATE, PRESSURE This part replaces 21462-16501. Price: $64.09 |
| 9 |
21471-17G00 |
SEAT,WAVE WASHER Price: $12.71 |
| 10 |
21472-17G00 |
WASHER,CLUTCH PLATE WAVE Price: $22.90 |
| 11 |
21482-41G10 |
BOLT,CLUTCH SPRING Price: $4.14 |
| 12 |
09140-20001 |
NUT Price: $4.10 |
| 13 |
09160-20067 |
WASHER (20X36X3) Price: $10.22 |
| 14 |
09167-20009 |
LOCK WASHER This part replaces 09167-20006. Price: $2.45 |
| 15 |
23110-44111 |
ROD,PUSH,R Price: $20.02 |
| 16 |
23111-15501 |
ROD,CLUTCH PUSH,L Price: $16.44 |
| 17 |
23121-44H00 |
PIECE,CLUTCH PUSH Price: $52.74 |
| 18 |
23122-44H00 |
CAMSHAFT,CLUTCH RELEASE Price: $68.37 |
| 19 |
23123-41G00 |
CAP,CLUTCH PUSH ROD Price: $13.51 |
| 20 |
23125-11J00 |
SPRING, CLUTCH RELEASE RETURN Price: $4.37 |
| 21 |
23271-44H21 |
ARM,CLUTCH RELEASE Price: $27.67 |
| 22 |
09134-06015 |
SCREW (6X73) Price: $8.39 |
| 23 |
09160-10020 |
WASHER (10.5X24X1.0) Price: $2.18 |
| 24 |
09160-15045 |
WASHER (15.5X28X1) Price: $4.75 |
| 25 |
09263-10014 |
BEARING (10X14X10) Price: $16.47 |
| 26 |
09263-12027 |
BEARING (12X18X12) Price: $8.90 |
| 27 |
09263-15003 |
BEARING (15X28X2) Price: $10.10 |
| 28 |
09282-10012 |
SEAL,OIL (10X20X6) Price: $9.72 |
| 29 |
09283-06008 |
SEAL,OIL (6X34X10.5) Price: $20.46 |
| 30 |
09285-10004 |
SEAL,OIL (10X17X5) Price: $4.10 |
| 31 |
01550-0625A |
BOLT (6X25) Price: $2.37 |
| 32 |
08310-0006A |
NUT Price: $2.22 |
