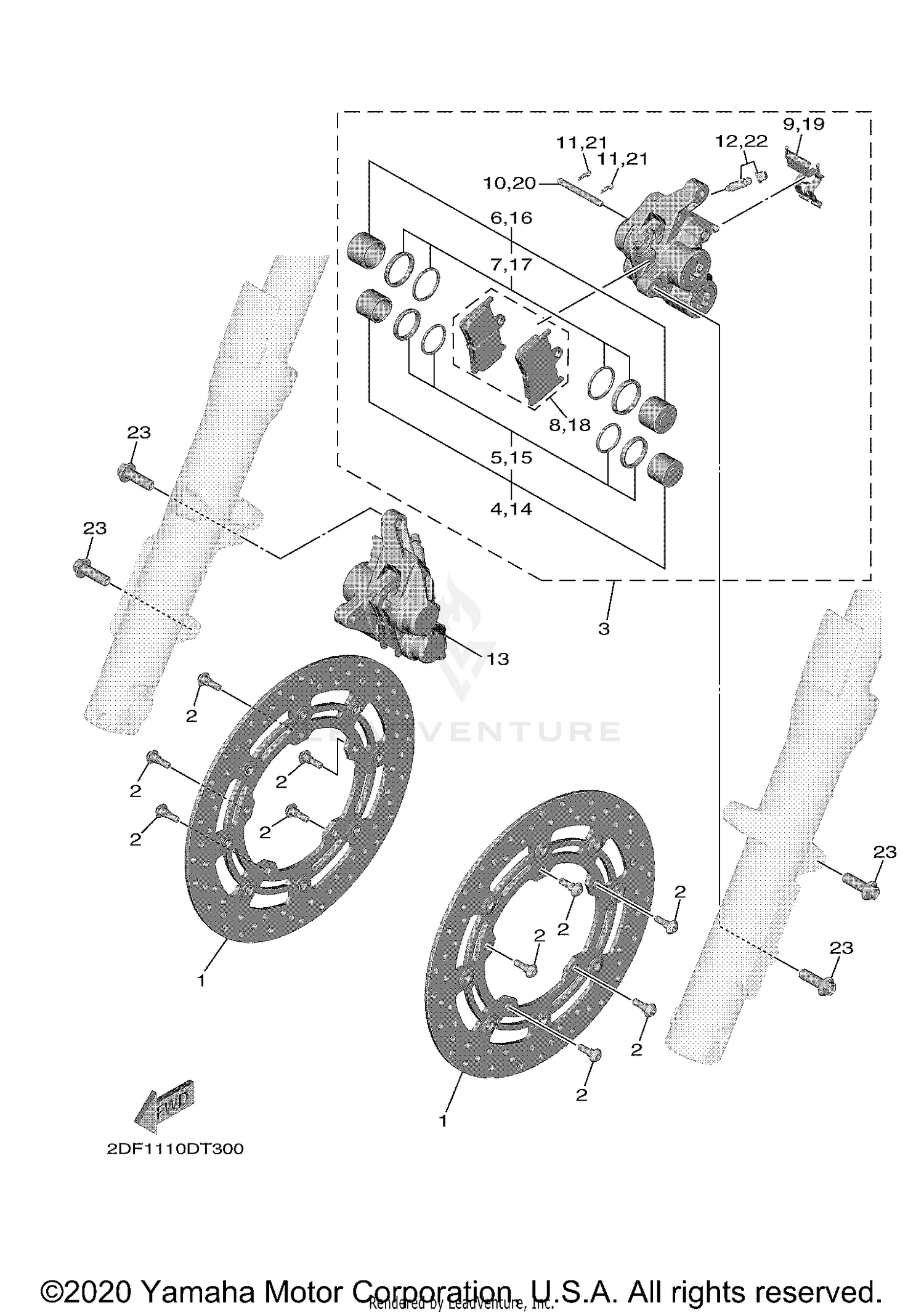

FRONT BRAKE CALIPER
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2DF-2581T-00-00 | DISC BRAKE ASSY Price: $203.99 |
| 2 | 90109-06254-00 | BOLT This part replaces 90109-064G6-00. Price: $3.60 |
| 3 | 2DF-2580T-00-00 | CALIPER ASSY (LEFT) Price: $353.99 |
| 4 | 4SV-25802-00-00 | PISTON ASSY, CALIPER Price: $168.99 |
| 5 | 3MA-25803-10-00 | CALIPER SEAL KIT Price: $60.99 |
| 6 | 4SV-25802-10-00 | PISTON ASSY, CALIPER Price: $212.99 |
| 7 | 3GM-25803-10-00 | CALIPER SEAL KIT Price: $58.99 |
| 8 | 2DF-25805-00-00 | BRAKE PAD KIT Price: $73.99 |
| 9 | 13S-25919-00-00 | SUPPORT, PAD Price: $30.99 |
| 10 | 4SV-25924-00-00 | PIN, PAD Price: $46.99 |
| 11 | 3GM-25925-00-00 | CLIP Price: $12.99 |
| 12 | 1J3-W0048-00-00 | BLEED SCREW KIT This part replaces 51H-W0048-00-00. Price: $33.99 |
| 13 | 2DF-2580U-00-00 | CALIPER ASSY (RIGHT) Price: $353.99 |
| 14 | 4SV-25802-00-00 | PISTON ASSY, CALIPER Price: $168.99 |
| 15 | 3MA-25803-10-00 | CALIPER SEAL KIT Price: $60.99 |
| 16 | 4SV-25802-10-00 | PISTON ASSY, CALIPER Price: $212.99 |
| 17 | 3GM-25803-10-00 | CALIPER SEAL KIT Price: $58.99 |
| 18 | 2DF-25805-00-00 | BRAKE PAD KIT Price: $73.99 |
| 19 | 13S-25919-00-00 | SUPPORT, PAD Price: $30.99 |
| 20 | 4SV-25924-00-00 | PIN, PAD Price: $46.99 |
| 21 | 3GM-25925-00-00 | CLIP Price: $12.99 |
| 22 | 1J3-W0048-00-00 | BLEED SCREW KIT This part replaces 51H-W0048-00-00. Price: $33.99 |
