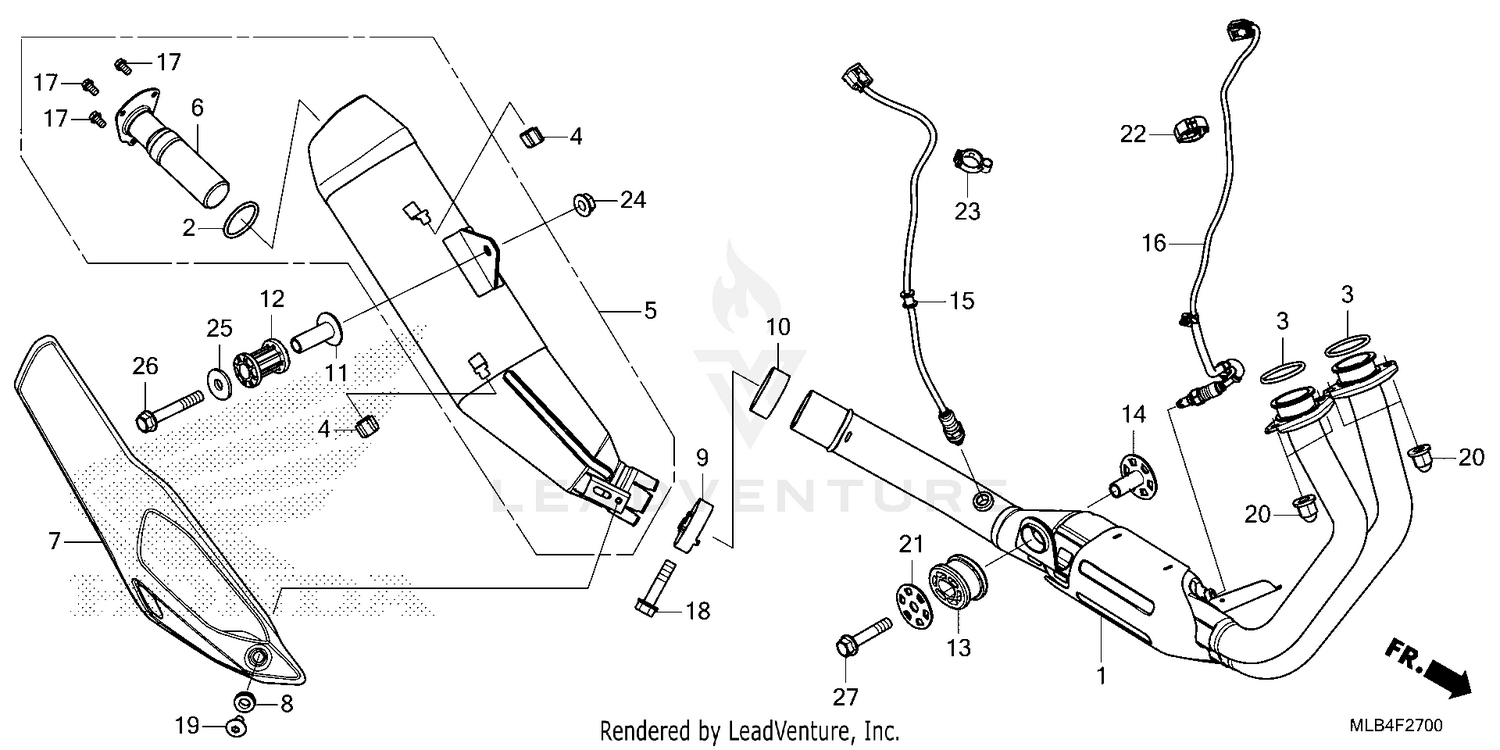

| Ref | Part Number | Description |
|---|
| 1 |
18150-MLB-D20 |
PIPE, EX. Price: $1,569.98 |
| 2 |
18291-MEB-670 |
GASKET, EX. PIPE Price: $6.18 |
| 3 |
18291-MM8-880 |
GASKET, EX. PIPE Price: $8.98 |
| 4 |
18293-MN0-000 |
RUBBER, PROTECTOR Price: $2.44 |
| 5 |
18300-MLB-A20 |
MUFFLER ASSY., EX. Price: $481.07 |
| 6 |
18317-MLB-A20 |
PIPE, TAIL Price: $54.56 |
| 7 |
18340-MLB-D00 |
COVER COMP, MUFFLER Price: $92.95 |
| 8 |
18345-MBT-610 |
RUBBER, PROTECTOR MOUNTING Price: $2.49 |
| 9 |
18371-MLB-D00 |
BAND, MUFFLER Price: $20.69 |
| 10 |
18391-MEL-000 |
GASKET, MUFFLER Price: $26.80 |
| 11 |
18420-MGZ-J00 |
COLLAR, MUFFLER MOUNTING Price: $6.29 |
| 12 |
18421-MGZ-J00 |
RUBBER, MUFFLER MOUNTING Price: $2.13 |
| 13 |
18422-MFJ-D10 |
RUBBER, EX. PIPE MOUNTING Price: $21.11 |
| 14 |
18423-MGC-N20 |
COLLAR, EX. PIPE MOUNTING Price: $7.29 |
| 15 |
36531-MLB-D21 |
SENSOR (ZFAS-S5.1) Price: $158.40 |
| 16 |
36533-MLB-D01 |
SENSOR Price: $202.82 |
| 17 |
96001-06010-07 |
BOLT, FLANGE (6X10) This part replaces 90101-KCE-000. Price: $1.70 |
| 18 |
90103-KCM-620 |
BOLT, FLANGE (8X35) Price: $1.80 |
| 19 |
90113-GFP-B00 |
SCREW, PAN (6X12) Price: $4.49 |
| 20 |
90304-ME1-670 |
NUT, CAP (8MM) Price: $7.47 |
| 21 |
90501-MGC-N20 |
WASHER (8.5X38) Price: $3.71 |
| 22 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 23 |
90690-MGS-D81 |
CLIP, CABLE (12MM) Price: $2.55 |
| 24 |
94050-08000 |
NUT, FLANGE (8MM) NUT, FLANGE (10MM) Price: $0.98 |
| 25 |
94103-08000 |
WASHER, PLAIN (8MM) Price: $0.75 |
| 26 |
96300-08050-04 |
BOLT, FLANGE (8X50) Price: $2.04 |
