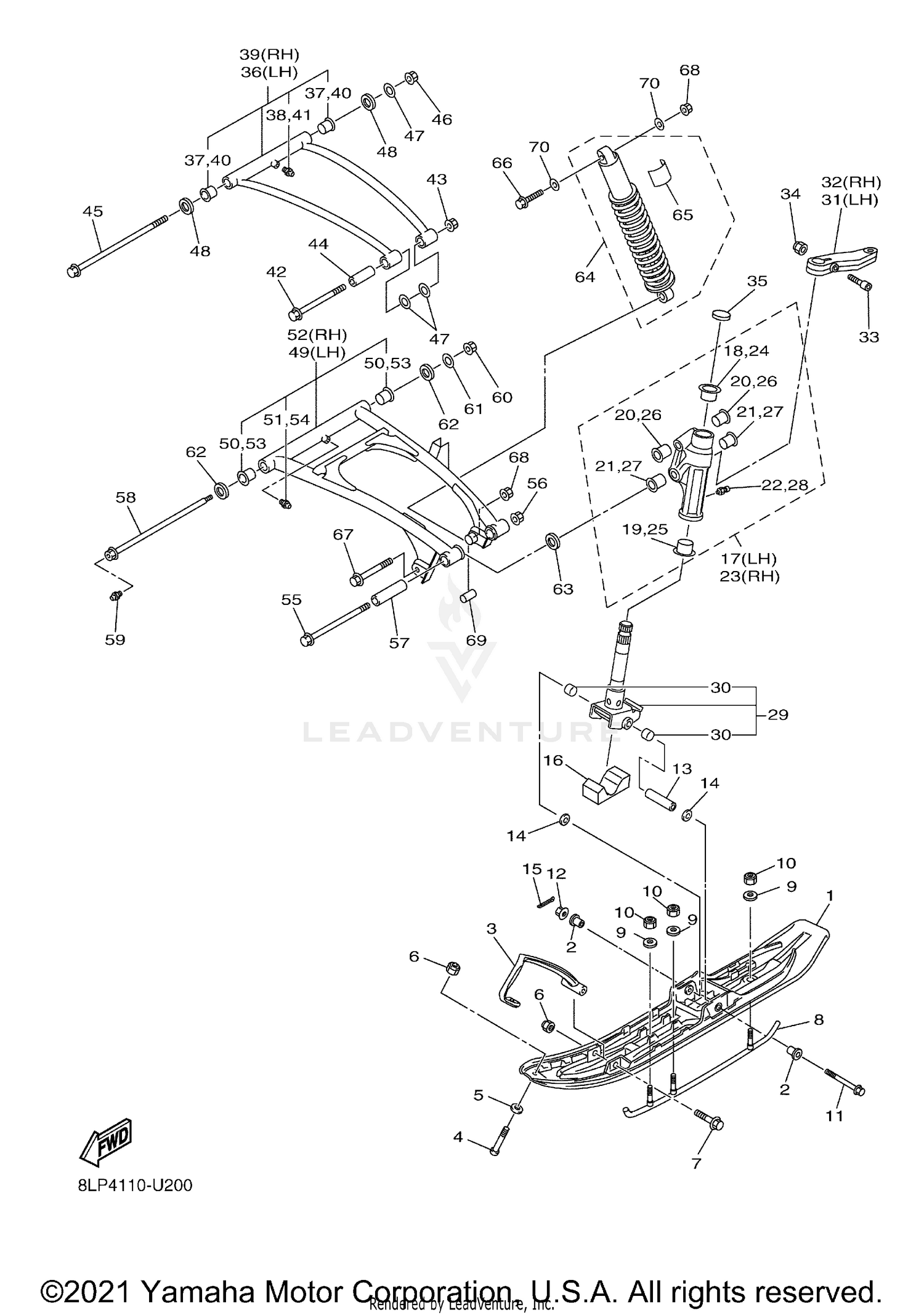

| Ref | Part Number | Description |
|---|
| 1 |
8LP-F3711-00-00 |
SKI 1 This part replaces 8LP-23711-00-00. Price: $129.32 |
| 2 |
8EX-23754-00-00 |
COLLAR, 1 Price: $19.99 |
| 3 |
8KC-23712-00-00 |
REINFORCEMENT, HEAD Price: $59.99 |
| 4 |
8KC-23755-00-00 |
BOLT, REINFORCEMENT Price: $13.49 |
| 5 |
8KC-23737-00-00 |
WASHER 1 Price: $5.49 |
| 6 |
8KC-23778-00-00 |
NUT Price: $12.49 |
| 7 |
8KC-23756-00-00 |
BOLT, REINFORCEMENT Price: $22.99 |
| 8 |
8LP-23731-01-00 |
RUNNER 1 Price: $142.99 |
| 9 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 10 |
95717-08300-00 |
NUT, FLANGE This part replaces 95702-08300-00. Price: $3.05 |
| 11 |
90105-10070-00 |
BOLT, FLANGE Price: $13.49 |
| 12 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 13 |
90387-1012H-00 |
COLLAR Price: $27.99 |
| 14 |
90201-10052-00 |
WASHER, PLATE Price: $9.49 |
| 15 |
91490-20025-00 |
PIN, COTTER This part replaces 91401-20020-00. Price: $1.99 |
| 16 |
8HG-23743-00-00 |
STOPPER 1 Price: $31.99 |
| 17 |
8HG-23501-10-00 |
STEERING KNUCKLE ASSY (LEFT) Price: $251.99 |
| 18 |
90381-25115-00 |
BUSH, SOLID Price: $10.49 |
| 19 |
90381-32001-00 |
BUSH, SOLID Price: $16.49 |
| 20 |
90381-15N50-00 |
BUSH, SOLID Price: $8.49 |
| 21 |
90381-18N51-00 |
BUSH, SOLID Price: $12.49 |
| 22 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 23 |
8HG-23502-10-00 |
STEERING KNUCKLE ASSY (RIGHT) Price: $251.99 |
| 24 |
90381-25115-00 |
BUSH, SOLID Price: $10.49 |
| 25 |
90381-32001-00 |
BUSH, SOLID Price: $16.49 |
| 26 |
90381-15N50-00 |
BUSH, SOLID Price: $8.49 |
| 27 |
90381-18N51-00 |
BUSH, SOLID Price: $12.49 |
| 28 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 29 |
8HG-23803-00-00 |
COLUMN, SKI ASSY Price: $257.99 |
| 30 |
90384-16N51-00 |
BUSH, BIMETAL FORMED Price: $5.49 |
| 31 |
8FN-23851-00-00 |
ARM, OUTSIDE 1 Price: $80.99 |
| 32 |
8FN-23852-00-00 |
ARM, OUTSIDE 2 Price: $90.99 |
| 33 |
90110-08104-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.60 |
| 34 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 35 |
3YK-22472-40-00 |
CAP, CASE Price: $7.49 |
| 36 |
8GS-23540-10-00 |
FRONT UPPER ARM COMP. (LEFT) Price: $232.99 |
| 37 |
90381-15N50-00 |
BUSH, SOLID Price: $8.49 |
| 38 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 39 |
8GS-23550-10-00 |
FRONT UPPER ARM COMP. (RIGHT) Price: $304.99 |
| 40 |
90381-15N50-00 |
BUSH, SOLID Price: $8.49 |
| 41 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 42 |
90105-10230-00 |
BOLT, FLANGE Price: $9.49 |
| 43 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 44 |
90387-10099-00 |
COLLAR Price: $22.99 |
| 45 |
90109-10056-00 |
BOLT Price: $53.99 |
| 46 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 47 |
90201-10052-00 |
WASHER, PLATE Price: $9.49 |
| 48 |
90209-15N50-00 |
WASHER Price: $2.60 |
| 49 |
8GS-23570-10-00 |
FRONT LOWER ARM COMP. (LEFT) Price: $332.99 |
| 50 |
90381-16N51-00 |
BUSH, SOLID Price: $11.49 |
| 51 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 52 |
8GS-23580-10-00 |
FRONT LOWER ARM COMP. (RIGHT) Price: $443.99 |
| 53 |
90381-16N51-00 |
BUSH, SOLID Price: $11.49 |
| 54 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 55 |
90105-12078-00 |
BOLT, FLANGE Price: $19.49 |
| 56 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 57 |
90387-12054-00 |
COLLAR Price: $22.99 |
| 58 |
90401-10045-00 |
BOLT, UNION Price: $92.99 |
| 59 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 60 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 61 |
90201-10052-00 |
WASHER, PLATE Price: $9.49 |
| 62 |
90209-15N50-00 |
WASHER Price: $2.60 |
| 63 |
90201-12032-00 |
WASHER, PLATE Price: $8.49 |
| 64 |
8LP-2376A-21-00 |
ABSORBER ASSY 1 Price: $976.99 |
| 65 |
4AA-22259-60-00 |
LABEL, WARNING Price: $7.49 |
| 66 |
90105-10169-00 |
BOLT, FLANGE This part replaces 90105-10232-00. Price: $12.49 |
| 67 |
90105-10392-00 |
BOLT, FLANGE Price: $12.49 |
| 68 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 69 |
90387-10N59-00 |
COLLAR Price: $18.49 |
