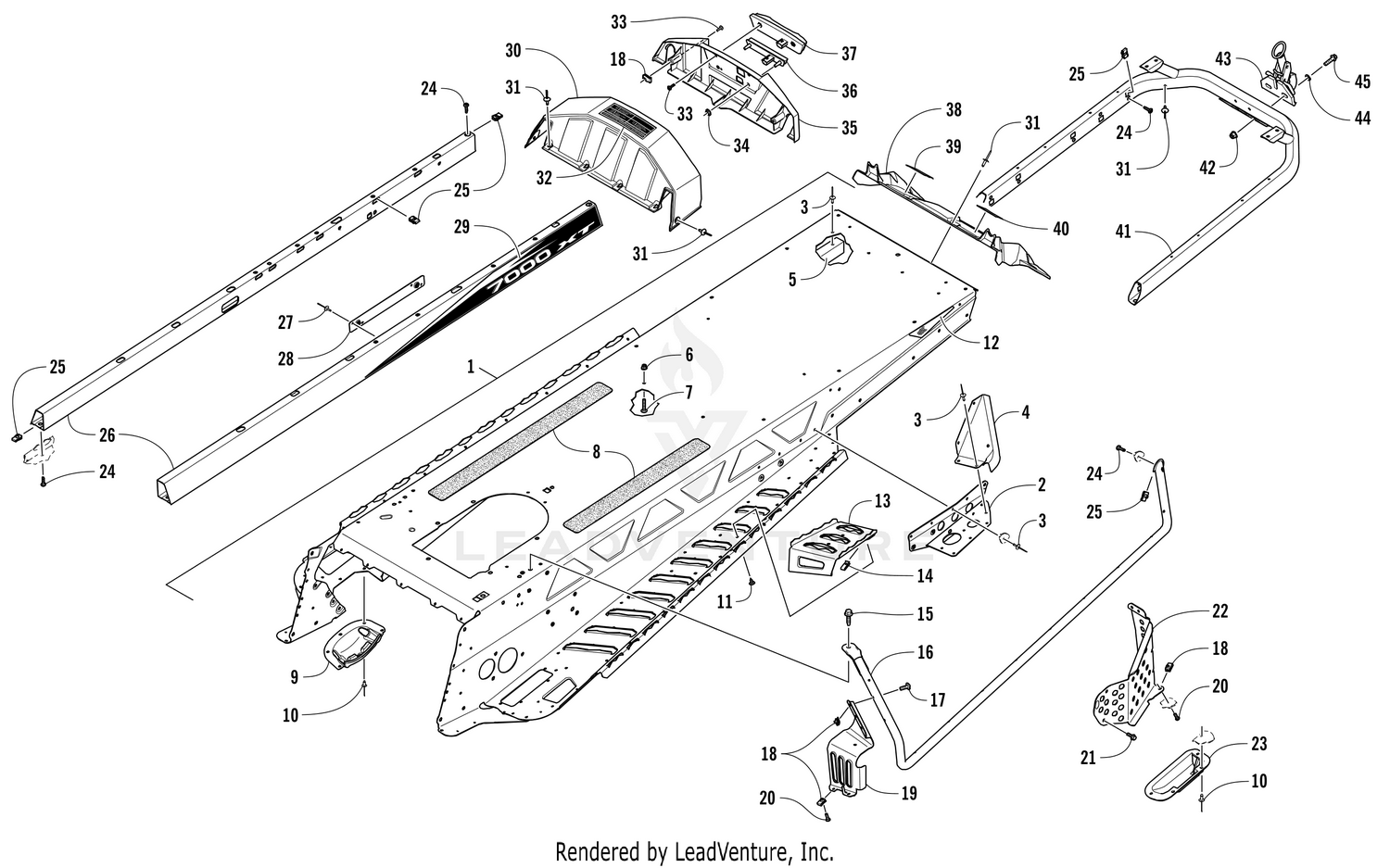

TUNNEL AND REAR RACK ASSEMBLY [103862]

Parts (51)

Ref	Part Number	Description
2	2707-066	Bracket, Mounting - Suspension - Right - Black Price: $65.83
2	2707-067	Bracket, Mounting - Suspension - Left - Black Price: $65.83
3	8060-686	Rivet - Zinc Price: $0.46
4	1607-386	Close-Off, Running Board - Right Price: $35.95
4	1607-387	Close-Off, Running Board - Left Price: $35.95
5	1607-690	Protector, Tunnel Price: $42.95
6	8427-602	Nut, Hex Price: $0.23
7	8477-635	SCREW,MACH-TSTRH M6X1.0X35 Z&BLK Price: $0.96
8	6606-982	Pad, Fuel Tank - Right Price: $7.23
8	6606-983	Pad, Fuel Tank - Left Price: $7.23
9	1607-109	Protector, Chain Case Price: $5.90
10	8061-708	Rivet Price: $1.08
11	1623-129	Screw, Self-Tapping Price: $0.29
12	2621-932	Decal, Reflector - Right Price: $1.51
12	2621-933	Decal, Reflector - Left Price: $1.51
13	1607-288	Footrest, Passenger - Right Price: $78.95
13	1607-289	Footrest, Passenger - Left Price: $78.95
14	1623-030	Clip, U-Nut Price: $1.08
15	2623-060	Screw, Cap Price: $2.42
16	2707-070	Roll, Tunnel - Right Price: $200.95
16	2707-071	Roll, Tunnel - Left Price: $200.95
17	8468-535	Screw, Machine Price: $1.07
18	1623-637	Clip, U-Nut Price: $2.61
19	0607-996	Footrest - Right Price: $28.95
19	0607-997	Footrest - Left Price: $28.95
20	8470-516	Screw, Machine Price: $0.35
21	8408-613	Screw, Cap Price: $1.66
22	1607-346	Shield, Brake Disc Price: $52.95
23	0607-351	Protector, Brake Disc Price: $13.28
24	2623-059	Screw, Machine Price: $2.17
25	0423-577	Clip, U-Nut Price: $0.46
26	1607-410	Riser, Tunnel - Right Price: $246.19
26	1607-411	Riser, Tunnel - Left Price: $246.19
27	8060-506	Rivet Price: $0.35
28	6606-947	Plate, Reinforcement Price: $14.49
29	3621-198	Decal, Riser - "7000 XT" - Right - Orange Price: $3.06
29	3621-199	Decal, Riser - "7000 XT" - Left - Orange Price: $35.59
30	6606-792	Close-Off, Tunnel Price: $45.95
31	8061-706	Rivet Price: $1.07
32	2621-926	Decal, Capacity Price: $5.34
33	8477-516	Screw, Machine Price: $0.71
34	0423-357	NUT, STAMPED-1/4" (SD 25001 SOH) Price: $1.08
35	6606-889	Close-Off, Tunnel - Inner Price: $31.95
36	0609-941	Light, Reverse Price: $48.95
37	0609-898	Taillight, LED Price: $70.95
39	5611-853	Decal, Warning - Towing (English) Price: $2.81
40	5611-852	Decal, Warning - Towing (French) Price: $2.54
41	2707-143	Rear Bumper - Assembly Price: $358.95
42	8427-802	Nut, Lock Price: $0.58
43	4606-156	Hitch, Pintle Price: $89.95
44	8050-242	Washer Price: $2.26
