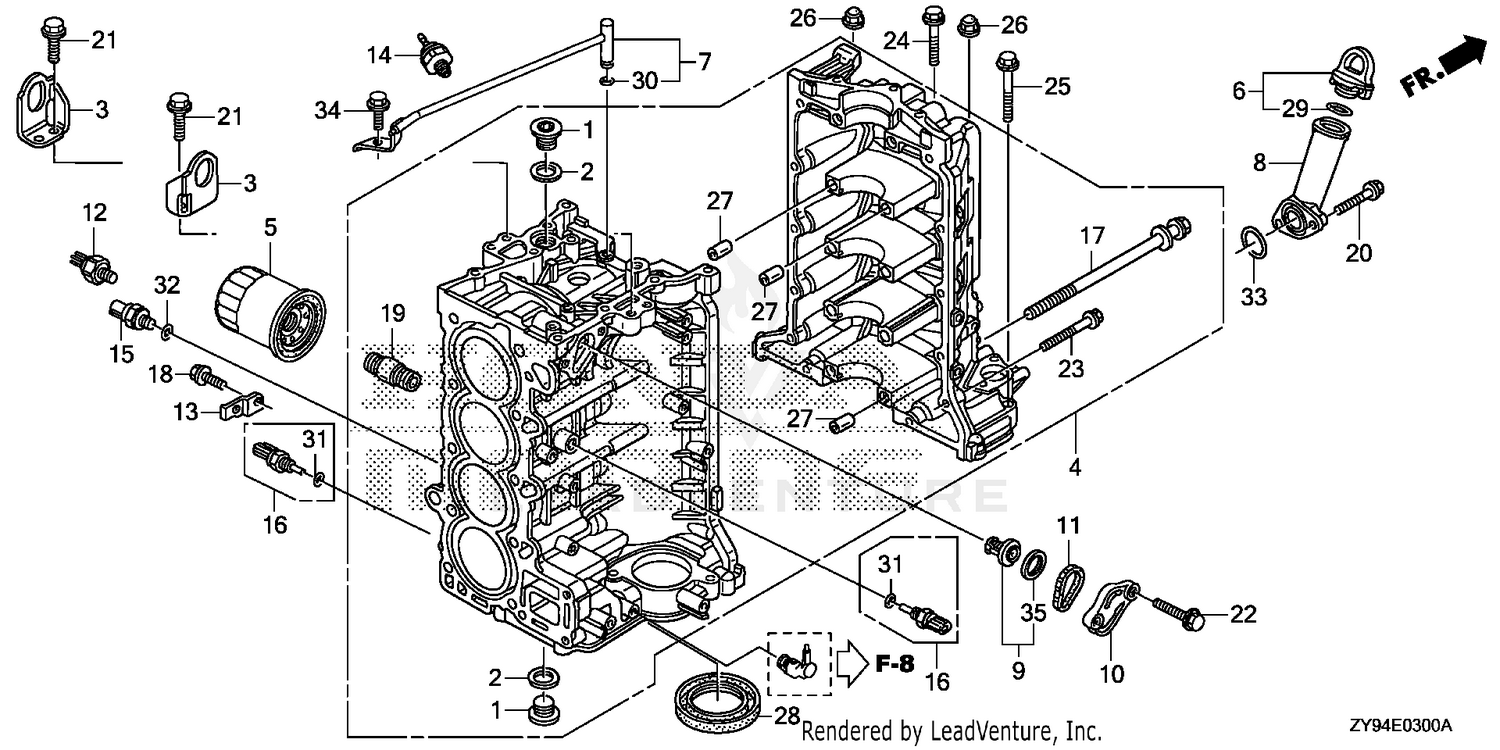

| Ref | Part Number | Description |
|---|
| 1 |
11106-PWA-300 |
BOLT, SEALING (24MM) Price: $11.56 |
| 2 |
11107-PWA-300 |
WASHER, SEALING (24MM) Price: $3.96 |
| 3 |
11911-ZY9-010 |
HANGER, ENGINE Price: $23.68 |
| 4 |
12000-ZY9-415ZA |
BLOCK ASSY., CYLINDER *NH8* (DARK GRAY) Price: $2,246.97 |
| 5 |
15400-PLM-A02PE |
FILTER, OIL Price: $12.42 |
| 5 |
15400-RTA-003 |
FILTER, OIL Price: $11.24 |
| 6 |
15600-ZY9-M00 |
CAP ASSY., OIL FILLER Price: $13.04 |
| 7 |
15612-ZY9-000 |
PIPE, OIL Price: $82.48 |
| 8 |
15631-ZY9-000 |
EXTENSION, OIL FILLER Price: $41.00 |
| 9 |
19300-ZW9-003 |
THERMOSTAT ASSY. Price: $58.90 |
| 10 |
19315-ZY9-H01 |
COVER, THERMOSTAT Price: $38.08 |
| 11 |
19317-ZW9-000 |
O-RING, THERMOSTAT COVER Price: $7.06 |
| 12 |
30530-RGA-004 |
SENSOR, KNOCK Price: $176.16 |
| 13 |
32114-ZVL-000 |
BRACKET, CLIP B Price: $3.96 |
| 14 |
35490-ZW9-003 |
SWITCH ASSY., OIL PRESSURE Price: $43.08 |
| 15 |
35490-ZY9-004 |
SWITCH ASSY., OIL PRESSURE Price: $98.00 |
| 16 |
35673-ZY3-003 |
SENSOR ASSY., WATER TEMPERATURE Price: $30.98 |
| 17 |
90008-ZY9-003 |
BOLT-WASHER (10X105) Price: $7.54 |
| 18 |
90011-ZW9-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200) Price: $2.34 |
| 19 |
90015-PH1-013 |
HOLDER, OIL FILTER Price: $10.34 |
| 20 |
90014-ZZ5-M01 |
BOLT, FLANGE (6X25) This part replaces 90016-ZW9-000. Price: $2.56 |
| 21 |
90026-ZY9-M01 |
BOLT, FLANGE (8X20) Price: $2.04 |
| 22 |
90030-ZY3-000 |
BOLT, FLANGE (6X22) Price: $1.26 |
| 23 |
90031-ZY3-000 |
BOLT, FLANGE (6X32) Price: $1.42 |
| 24 |
90054-ZY9-M01 |
BOLT, FLANGE (8X35) Price: $2.36 |
| 25 |
90120-HW1-671 |
BOLT, FLANGE (8X45) Price: $7.14 |
| 26 |
90201-ZY9-M01 |
NUT (8MM) Price: $2.34 |
| 27 |
90701-PD2-000 |
PIN, DOWEL (12X14) Price: $9.18 |
| 28 |
91214-RNB-A01 |
SEE PART DETAILS - PRI; OIL SEAL (80X98X10) (ARAI) This part replaces 91214-PNA-014. Price: $23.48 |
| 29 |
91302-MAL-601 |
O-RING (18.1X3.6) Price: $4.86 |
| 30 |
91305-ZY6-003 |
O-RING (6.5X1.5) Price: $2.32 |
| 31 |
91307-PNA-003 |
O-RING (9.5X1.9) Price: $2.76 |
| 32 |
91319-PR3-003 |
O-RING (13X1.5) (ARAI) Price: $6.28 |
| 33 |
91324-PF4-004 |
O-RING (28.3X2.4) (NOK) Price: $4.92 |
| 34 |
96300-06014-09 |
BOLT, FLANGE (6X14) Price: $1.46 |
