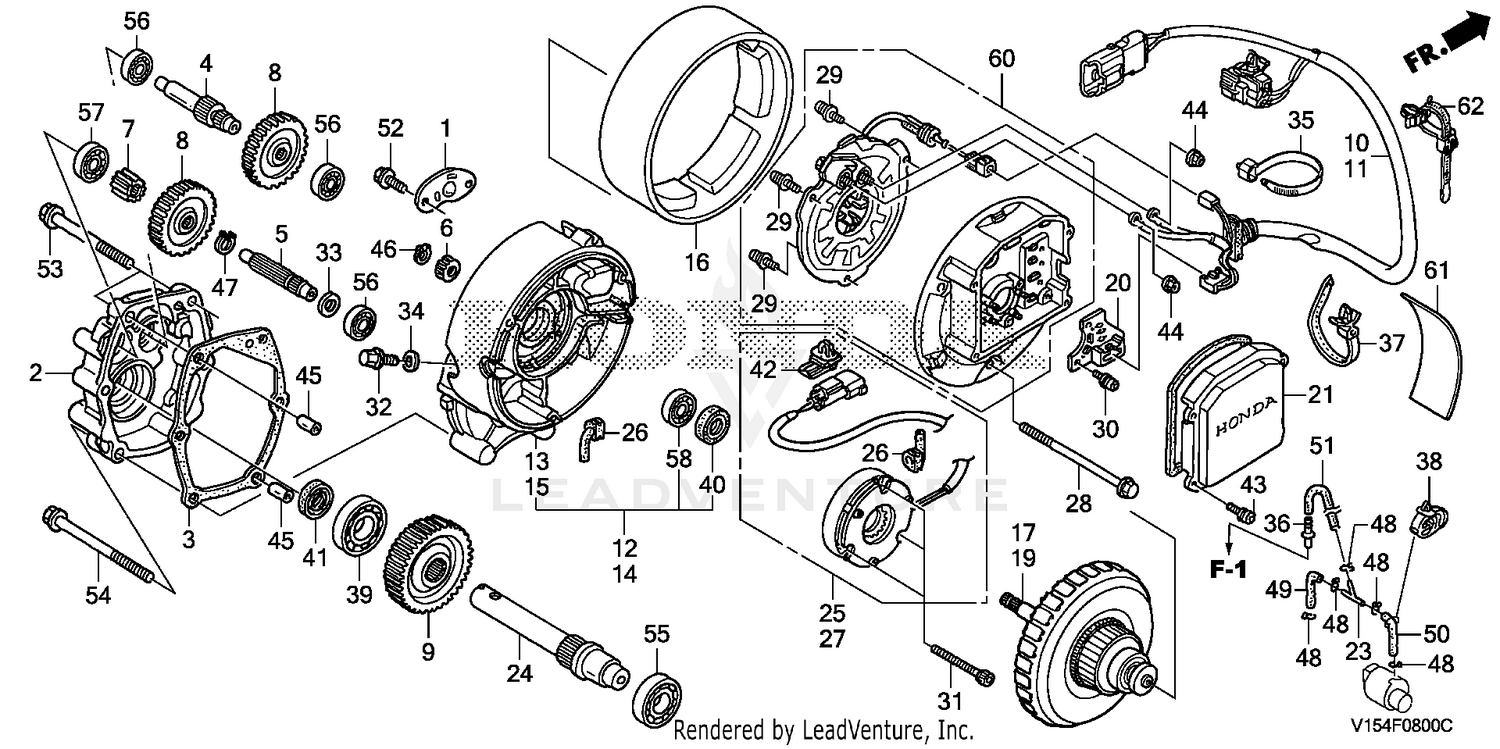

| Ref | Part Number | Description |
|---|
| 1 |
12370-ZG1-020 |
SEE PART DETAILS - PRI; CAP, BREATHER CHAMBER Price: $8.70 |
| 2 |
21111-V15-F00 |
CASE, REDUCTION Price: $269.46 |
| 3 |
21115-V15-000 |
GASKET, TRANSMISSION CASE Price: $13.08 |
| 4 |
23221-V15-000 |
COUNTERSHAFT Price: $64.16 |
| 5 |
23246-V15-000 |
SHAFT, IDLER Price: $68.14 |
| 6 |
23411-V15-000 |
GEAR, PRIMARY DRIVE (12T) Price: $68.12 |
| 7 |
23414-V15-000 |
GEAR, FINAL DRIVE (11T) Price: $31.42 |
| 8 |
23437-V15-000 |
GEAR, PRIMARY DRIVEN (47T) Price: $68.12 |
| 9 |
23442-V15-F00 |
GEAR, FINAL DRIVEN (44T) Price: $58.68 |
| 10 |
32145-V15-N30 |
HARNESS ASSY., R. MOTOR JOINT Price: $96.42 |
| 11 |
32146-V15-N30 |
HARNESS ASSY., L. MOTOR JOINT Price: $96.42 |
| 12 |
36210-V15-003 |
CASE, R. FR. MOTOR Price: $146.00 |
| 13 |
36211-V15-003 |
CASE, R. FR. MOTOR Price: $153.36 |
| 14 |
36215-V15-003 |
CASE, L. FR. MOTOR Price: $146.00 |
| 15 |
36216-V15-003 |
CASE, L. FR. MOTOR Price: $153.36 |
| 16 |
36220-V02-003 |
STATOR Price: $88.05 |
| 17 |
36230-V15-003 |
ARMATURE, R. Price: $78.66 |
| 19 |
36240-V15-003 |
ARMATURE, L. Price: $78.66 |
| 20 |
36251-V02-013 |
CONTROL UNIT Price: $169.56 |
| 21 |
36263-V02-013 |
COVER, CONTROL UNIT Price: $13.48 |
| 23 |
38581-SB2-003 |
JOINT Y, TUBE (MITSUBA) Price: $11.96 |
| 24 |
42311-V15-F00 |
SHAFT, WHEEL Price: $107.38 |
| 25 |
75100-V15-831 |
BRAKE ASSY., R. Price: $141.66 |
| 26 |
75113-V15-000 |
GROMMET, BRAKE CORD Price: $3.92 |
| 27 |
75200-V15-831 |
BRAKE ASSY., L. Price: $141.66 |
| 28 |
90001-V02-003 |
BOLT, FLANGE (6X70) Price: $4.12 |
| 29 |
90002-V02-003 |
SCREW-WASHER Price: $2.66 |
| 30 |
90004-V02-003 |
SCREW-WASHER (3X6) Price: $2.66 |
| 31 |
90102-V02-000 |
BOLT, SOCKET (5X25) Price: $2.70 |
| 32 |
90131-ZE1-000 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG Price: $3.04 |
| 33 |
90412-KZL-840 |
WASHER (10MM) Price: $0.56 |
| 34 |
90601-ZE1-000 |
WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583). Price: $0.68 |
| 35 |
90650-KV6-003 |
BAND, WIRE (95MM) Price: $4.30 |
| 36 |
90652-HF7-003 |
JOINT, BREATHER TUBE Price: $12.68 |
| 37 |
90672-SB2-003 |
STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK) Price: $7.22 |
| 38 |
90683-SA0-003 |
CLIP, WIRE HARNESS (25MM) (Honda Code 1226265). Price: $12.48 |
| 39 |
96100-62050-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977). Price: $24.84 |
| 40 |
91251-V15-004 |
OIL SEAL (17X35X8) Price: $8.24 |
| 41 |
91201-ZG9-U71 |
SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073). Price: $4.72 |
| 42 |
91565-S0X-003 |
CLIP, CONNECTOR (DARK GREEN) Price: $4.56 |
| 43 |
93893-04010-08 |
SEE PART DETAILS - PRI; SCREW-WASHER (4X10) Price: $1.68 |
| 44 |
94050-05080 |
NUT, FLANGE (5MM) (Honda Code 0612671). Price: $0.46 |
| 45 |
94301-10160 |
SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206). Price: $3.10 |
| 46 |
94510-10000 |
CIRCLIP (OUTER) (10MM) Price: $1.38 |
| 47 |
94510-12000 |
CIRCLIP (OUTER) (12MM) Use up to Engine SN 2056819. Price: $2.28 |
| 48 |
95002-02080 |
CLIP, TUBE (B8) (Honda Code 0250647). Price: $2.20 |
| 49 |
95005-35001-20M |
BULK HOSE, VACUUM (3.5X1000) (3.5X500) (BULK HOSE 95005-35008-10M) Price: $14.08 |
| 50 |
95005-35001-20M |
BULK HOSE, VACUUM (3.5X1000) (3.5X500) (BULK HOSE 95005-35008-10M) Price: $14.08 |
| 51 |
95005-35001-20M |
BULK HOSE, VACUUM (3.5X1000) (3.5X500) (BULK HOSE 95005-35008-10M) Price: $14.08 |
| 52 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 53 |
95701-08050-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X50) (Honda Code 2935740). Price: $3.08 |
| 54 |
95701-08065-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X65) Price: $2.16 |
| 55 |
96100-60040-00 |
BEARING, RADIAL BALL (6004) Price: $20.76 |
| 56 |
96100-62000-00 |
BEARING, RADIAL BALL (6200) Price: $11.00 |
| 57 |
96100-63010-00 |
BEARING, RADIAL BALL (6301) (NOT AVAILABLE) Price: $15.16 |
| 58 |
96130-62010-10 |
BEARING, RADIAL BALL (6201ZZ) Price: $12.72 |
| 60 |
36235-V15-003 |
COVER, RR. STATOR Price: $246.66 |
