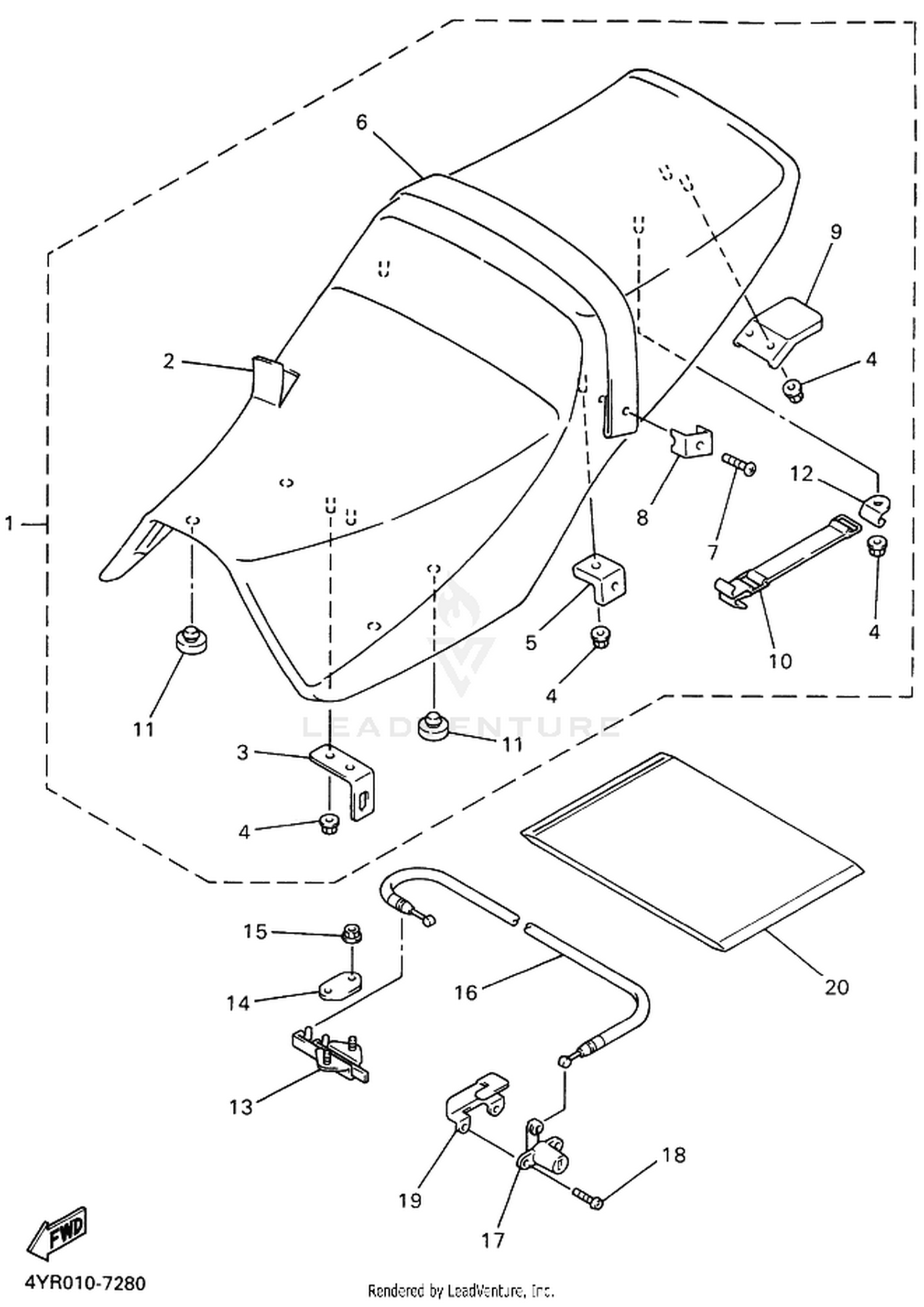

28 ???
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4YR-24730-01 | DOUBLE SEAT ASSY Price: Call Us |
| 11 | 22W-24741-00 | PAD, SEAT Price: Call Us |
| 13 | 4BP-24780-00 | SEAT LOCK ASSY Price: Call Us |
| 14 | 4BP-24792-00 | PLATE Price: Call Us |
| 15 | 95707-06500 | NUT, FLANGE Price: Call Us |
| 16 | 4YR-2478E-00 | CABLE, SEAT LOCK Price: Call Us |
| 17 | 2TV-W2470-00 | ROTOR SET Price: Call Us |
| 18 | 90149-06308 | SCREW Price: Call Us |
| 19 | 4YR-2478X-00 | BRACKET, SEAT LOCK Price: Call Us |
