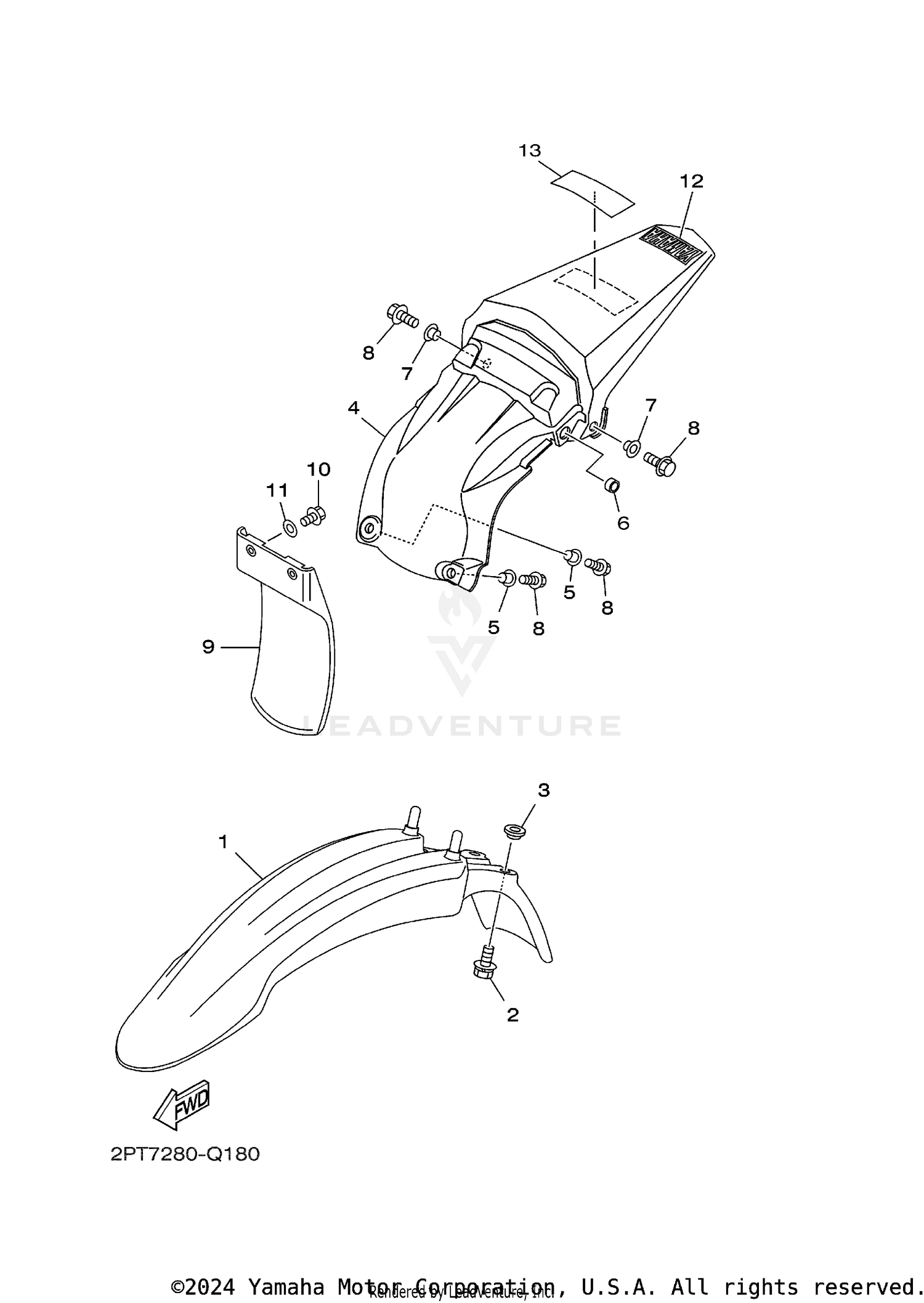

FENDER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1B2-F1511-10-00 | FENDER, FRONT Price: $50.99 |
| 2 | 90119-06201-00 | BOLT, WITH WASHER Price: $9.49 |
| 3 | 90209-06187-00 | WASHER Price: $9.49 |
| 4 | 1B2-F1611-20-00 | FENDER, REAR Price: $100.99 |
| 5 | 90387-064X4-00 | COLLAR Price: $8.49 |
| 6 | 90387-1001B-00 | COLLAR Price: $3.55 |
| 7 | 90387-07023-00 | COLLAR Price: $5.49 |
| 8 | 95817-06016-00 | BOLT, FLANGE This part replaces 9580M-06016-00. Price: $1.95 |
| 9 | 4ES-21642-01-00 | GUARD, FLAP This part replaces 1B2-F1642-00-00. Price: $41.99 |
| 10 | 95817-06016-00 | BOLT, FLANGE This part replaces 9580M-06016-00. Price: $1.95 |
| 11 | 90201-06020-00 | WASHER, PLATE This part replaces 90201-064H0-00. Price: $10.49 |
| 12 | 2PT-F153E-00-00 | EMBLEM, YAMAHA Price: $8.49 |
