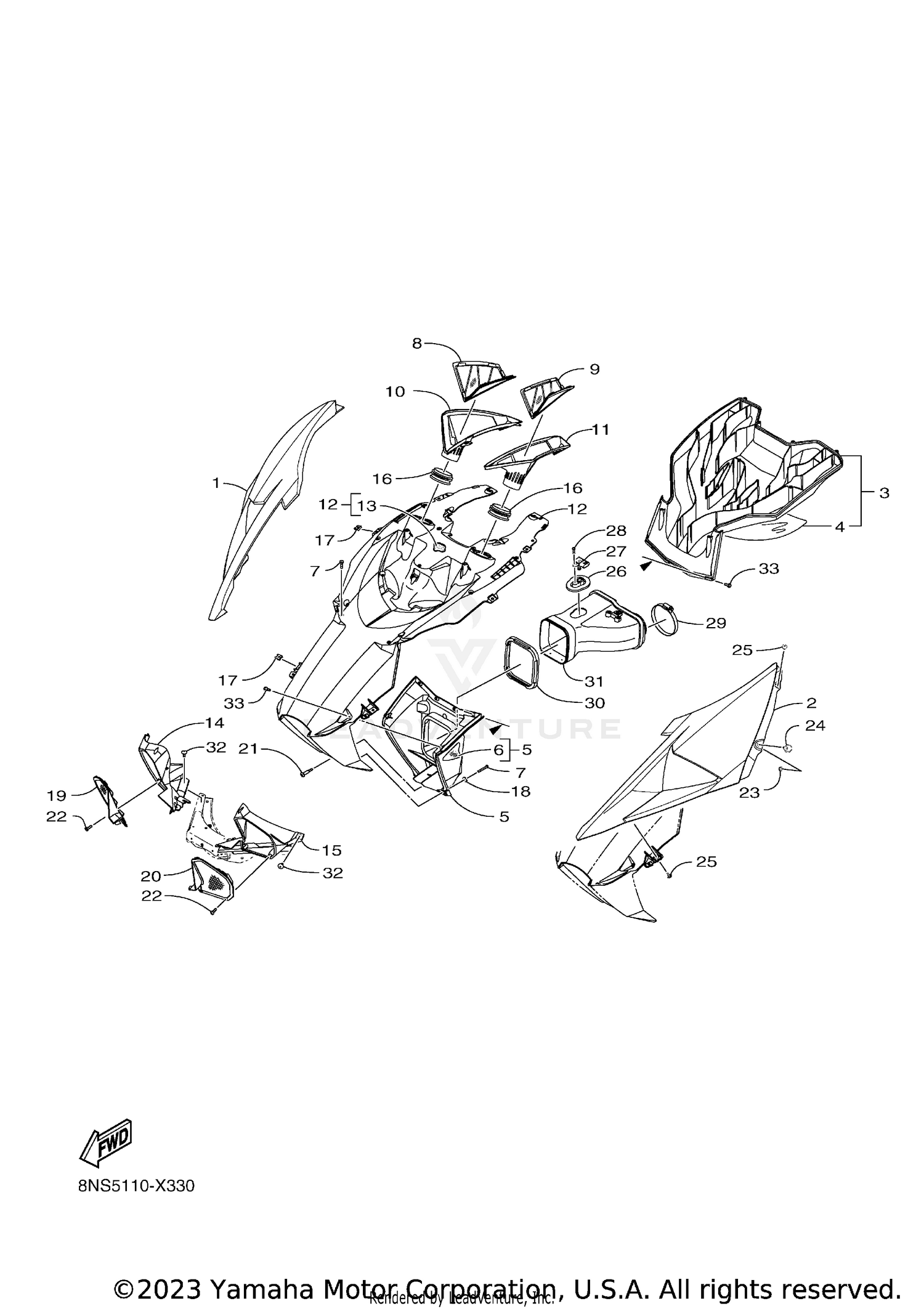

| Ref | Part Number | Description |
|---|
| 1 |
8NS-K7122-20-00 |
HOOD 4 Price: $392.99 |
| 2 |
8NS-K7121-20-00 |
HOOD 3 Price: $372.99 |
| 3 |
8ND-K715B-00-00 |
INTAKE, LOWER Price: $219.99 |
| 4 |
8ND-K7561-00-00 |
PROTECTOR, SIDE 1 Price: $11.49 |
| 5 |
8ND-R1311-30-00 |
DUCT, INTAKE Price: $116.99 |
| 6 |
8JP-H5133-00-00 |
TAPE, REFLECTOR Price: $18.49 |
| 7 |
8JP-RA276-00-00 |
SCREW, TAPPING This part replaces 8JP-RA2A1-00-00. Price: $0.85 |
| 8 |
8KC-K715E-00-00 |
SCREEN, INTAKE DUCT 2 Price: $29.99 |
| 9 |
8KC-K715D-00-00 |
SCREEN, INTAKE DUCT 1 Price: $25.99 |
| 10 |
8KC-K715G-10-00 |
DUCT, INTAKE 2 Price: $21.99 |
| 11 |
8KC-K715F-10-00 |
DUCT, INTAKE 1 Price: $23.99 |
| 12 |
8ND-K715C-10-00 |
INTAKE, UPPER Price: $253.99 |
| 14 |
8ND-K715J-00-00 |
VENT, FRONT 2 Price: $34.99 |
| 15 |
8ND-K715H-00-00 |
VENT, FRONT 1 Price: $31.99 |
| 16 |
8KC-K715R-00-00 |
SEAL, INTAKE Price: $4.80 |
| 17 |
8JP-RA352-00-00 |
NUT, CLIP 10 Price: $1.85 |
| 18 |
8JP-RA441-00-00 |
WASHER, 1/4X0.625X0.065 Price: $0.30 |
| 19 |
8KC-K715M-00-00 |
BEZEL, VENT 2 Price: $36.99 |
| 20 |
8KC-K715L-00-00 |
BEZEL, VENT 1 Price: $34.99 |
| 21 |
8ND-RA211-00-00 |
SCREW Price: $25.99 |
| 22 |
8KC-RA238-00-00 |
SCREW, 4 Price: $1.85 |
| 23 |
8JP-RA345-00-00 |
NUT, 1 Price: $6.49 |
| 24 |
8JP-RAK02-00-00 |
PIN, 2 Price: $29.99 |
| 25 |
8JP-RA202-00-00 |
SCREW, TAPPING 1/4-20X0.5 Price: $1.70 |
| 26 |
8ND-R1325-00-00 |
BOOT Price: $87.99 |
| 27 |
8ND-H2380-00-00 |
SENSOR, PRESSURE Price: $290.99 |
| 28 |
8ND-RA201-00-00 |
SCREW, TAPPING Price: $3.60 |
| 29 |
8ND-RAB14-00-00 |
CLAMP, 12 Price: $11.49 |
| 30 |
8ND-E4454-00-00 |
JOINT Price: $19.49 |
| 31 |
8ND-E4437-00-00 |
DUCT Price: $126.99 |
| 32 |
8KC-RA202-00-00 |
SCREW, TAPPING 1/4-20X0.5 Price: $1.75 |
