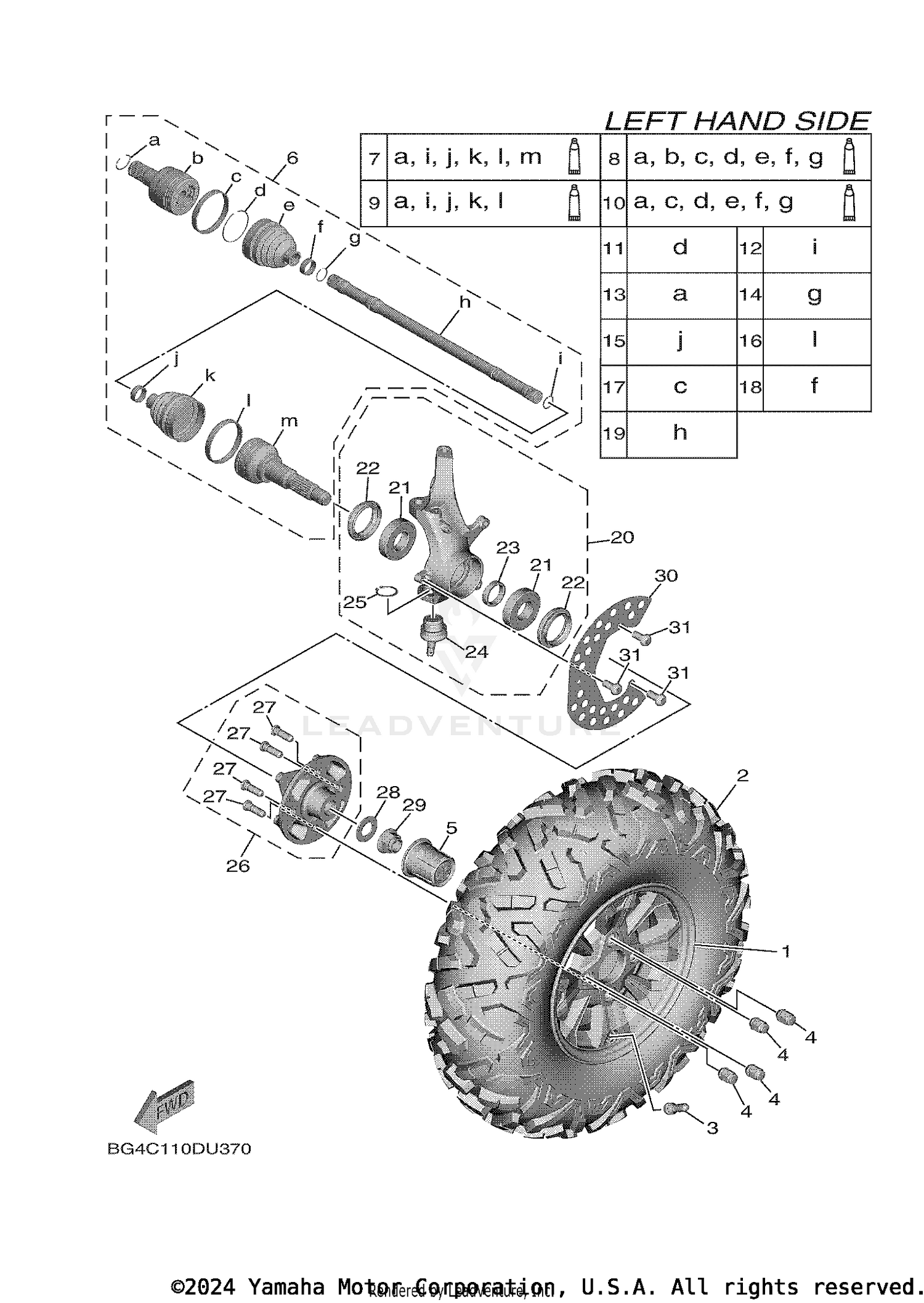

FRONT WHEEL
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BG4-F5168-00-00 | CAST WHEEL, FRONT Price: $264.99 |
| 4 | 90176-12800-00 | NUT, CROWN Price: $3.95 |
| 5 | 2MB-F512A-00-00 | CAP, WHEEL Price: $2.85 |
| 6 | BG4-2518F-02-00 | DRIVE SHAFT ASSY This part replaces BG4-2518F-00-00. Price: $209.99 |
| 9 | BG4-2510G-02-00 | BOOT SET (BALL JOI This part replaces BG4-2510G-00-00. Price: $50.99 |
| 11 | BG4-25182-00-00 | CIRCLIP Price: $5.49 |
| 12 | 2HC-2512H-00-00 | CIRCLIP Price: $4.85 |
| 13 | 16B-2536E-00-00 | CLIP, SPRING Price: $5.49 |
| 14 | 16B-2512J-00-00 | SNAP RING Price: $4.50 |
| 15 | 2HC-2510U-00-00 | BOOT BAND (BALL JOINT) Price: $7.49 |
| 16 | BG4-2512G-00-00 | BOOT BAND (SMALL) Price: $6.49 |
| 17 | BG4-2511H-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $9.49 |
| 18 | BG4-2511G-00-00 | BOOT BAND (BALL JOINT) Price: $6.49 |
| 19 | BG4-2518E-00-00 | SHAFT Price: $100.99 |
| 20 | 1XD-F3501-00-00 | STEERING KNUCKLE ASSY (LEFT) Price: $260.99 |
| 21 | 93306-20725-00 | BEARING Price: $42.99 |
| 22 | 93106-50002-00 | OIL SEAL Price: $17.49 |
| 23 | 90387-35007-00 | COLLAR Price: $16.49 |
| 24 | 1XD-23579-00-00 | BALL JOINT 2 Price: $83.99 |
| 25 | 93410-32075-00 | CIRCLIP This part replaces 99009-32400-00. Price: $10.49 |
| 26 | 2MB-F510D-04-00 | HUB ASSY 2 This part replaces 2MB-F510D-02-00. Price: $100.99 |
| 27 | 90114-12005-00 | BOLT, SERRATION Price: $3.20 |
| 28 | 90201-25023-00 | WASHER, PLATE Price: $11.49 |
| 29 | 90179-24006-00 | NUT This part replaces 90179-24801-00. Price: $15.49 |
| 30 | 1XD-F514A-01-00 | RING, WHEEL 1 Price: $8.49 |
