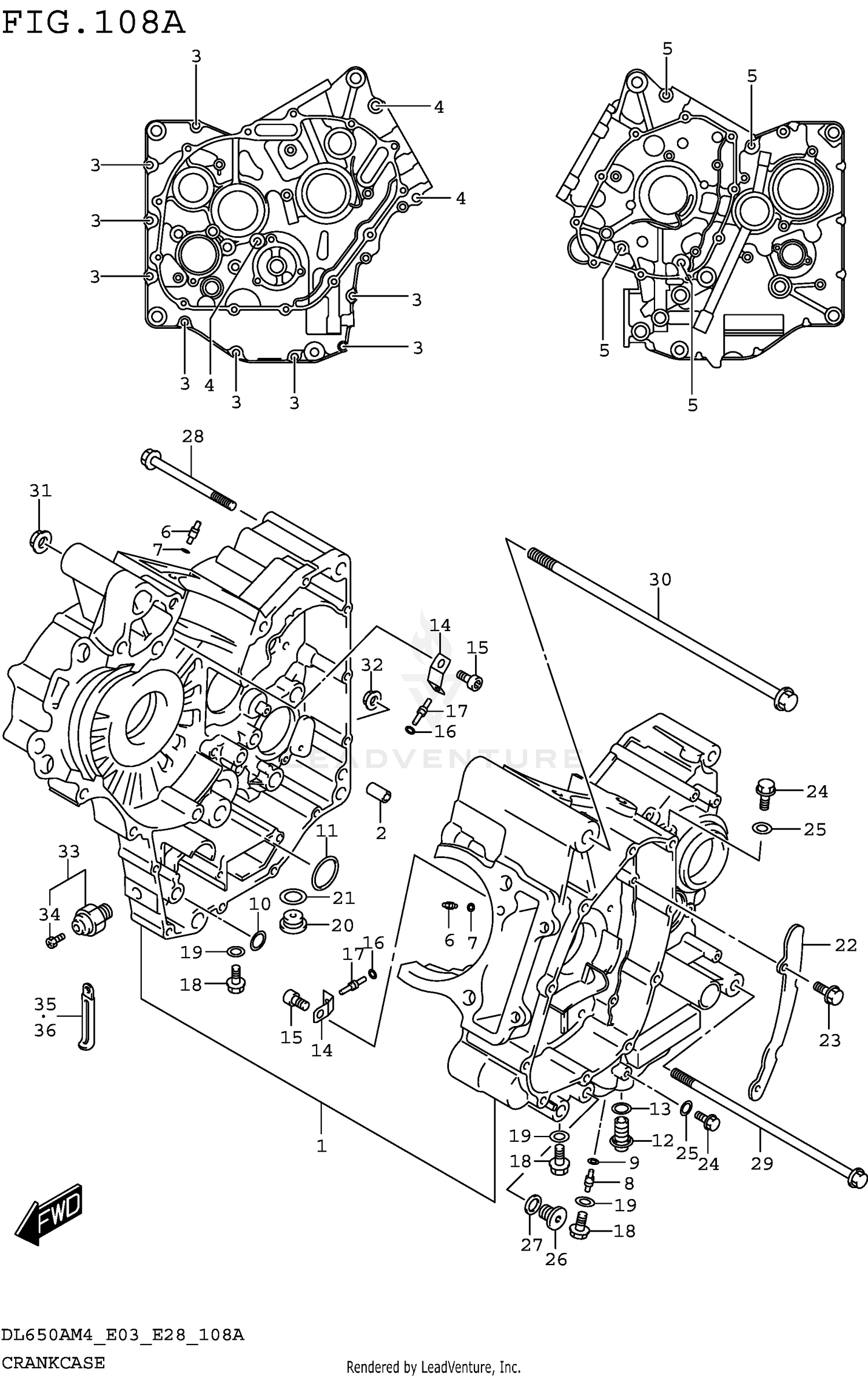

CRANKCASE
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11301-27890 | CRANKCASE SET Price: $1,701.96 |
| 3 | 01547-0650A | BOLT Price: $2.83 |
| 6 | 09493-28010 | JET AIR (14) Price: $17.40 |
| 7 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 8 | 09493-36004 | JET (18) Price: $17.72 |
| 9 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 10 | 09280-12009 | O RING (D:1.9,ID:12.6) This part replaces 09280-13007. Price: $3.87 |
| 11 | 09280-15007 | O RING (D:2.4,ID:15.8) Price: $2.07 |
| 13 | 09168-12002 | GASKET (12.1X16.2X3.7) Price: $1.92 |
| 14 | 16438-19F00 | PLATE,PISTON COOLING JET Price: $2.12 |
| 15 | 09106-06075 | BOLT (6X12) Price: $3.02 |
| 16 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 17 | 09493-26007 | JET (13) Price: $14.37 |
| 18 | 01550-0812A | BOLT Price: $2.79 |
| 19 | 09168-08016 | GASKET (8.2X14X1) Price: $1.99 |
| 20 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 21 | 09168-16002 | GASKET (16X22X2) Price: $2.30 |
| 22 | 11323-19F00 | PLATE,OIL SEPARATOR Price: $2.57 |
| 23 | 01547-0612A | BOLT Price: $2.45 |
| 24 | 01547-0610A | BOLT Price: $2.58 |
| 25 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 26 | 09247-12006 | PLUG (12X10) Price: $3.28 |
| 27 | 09168-12002 | GASKET (12.1X16.2X3.7) Price: $1.92 |
| 28 | 09103-10205 | BOLT (10X225) Price: $20.50 |
| 29 | 09103-10347 | BOLT (10X275) Price: $22.93 |
| 30 | 09103-12054 | BOLT (12X310) Price: $26.95 |
| 31 | 09159-12056 | NUT Price: $8.98 |
| 32 | 08319-3110A | NUT Price: $3.28 |
| 33 | 37820-33D11 | SWITCH ASSY,OIL PRESSURE Price: $26.40 |
| 35 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
