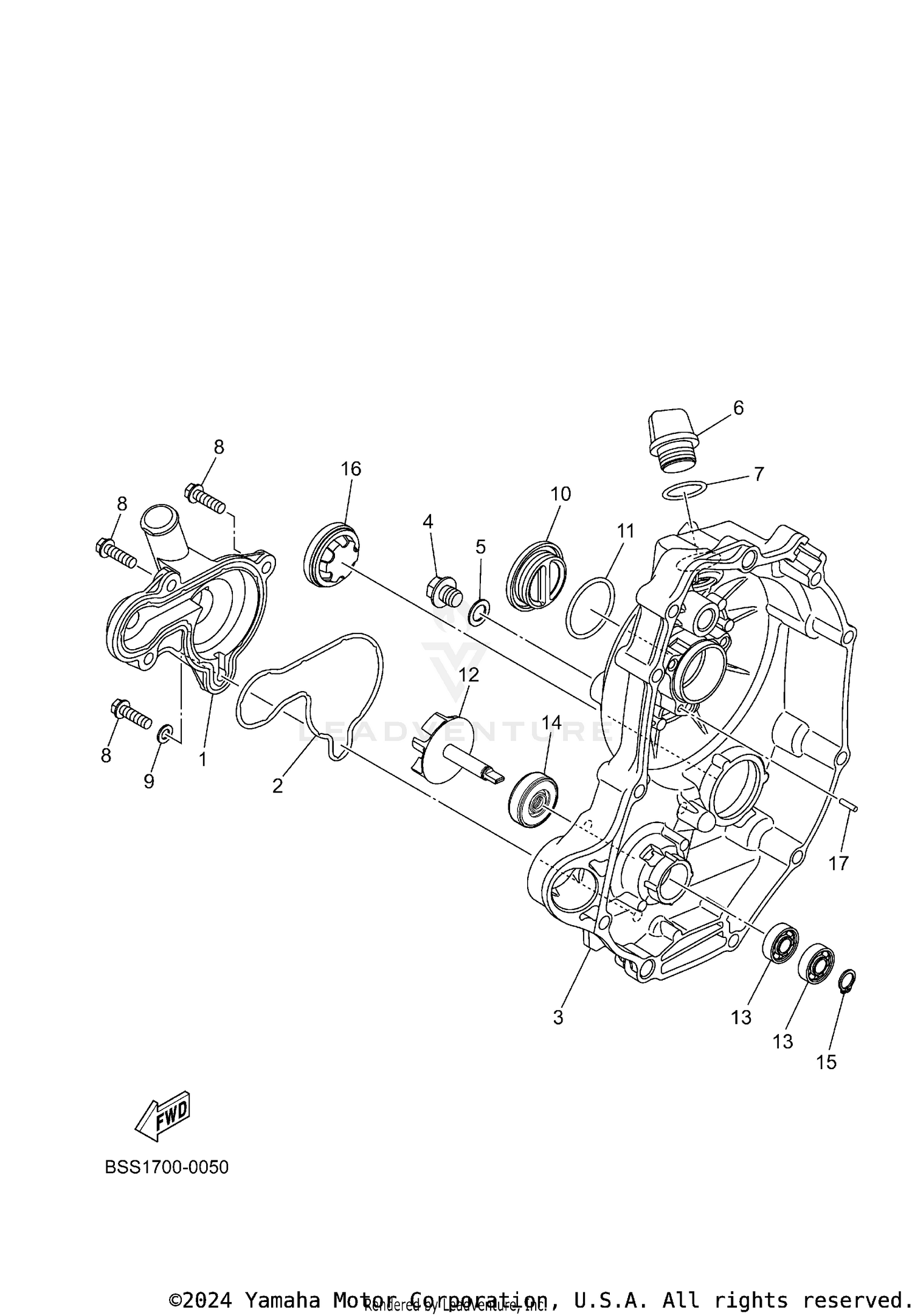

WATER PUMP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B74-E2422-00-00 | COVER, HOUSING Price: $45.99 |
| 2 | B74-E2439-00-00 | O-RING Price: $11.49 |
| 3 | BSS-E5417-00-00 | COVER, CAP Price: $83.99 |
| 4 | B74-E2157-02-00 | BOLT Price: $1.75 |
| 5 | 90430-10806-00 | GASKET Price: $0.60 |
| 6 | 5BP-E5363-10-00 | PLUG, OIL Price: $2.90 |
| 7 | 93210-19123-00 | O-RING This part replaces 93210-198J0-00. Price: $8.99 |
| 8 | 95E37-06020-00 | BOLT, FLANGE DEEP RECESS Price: $1.30 |
| 10 | 90340-32805-00 | PLUG, STRAIGHT SCREW Price: $1.00 |
| 11 | 93210-32816-00 | O-RING Price: $3.50 |
| 12 | BSS-E2450-00-00 | IMPELLER SHAFT ASS Price: $29.99 |
| 15 | 99009-08400-00 | CIRCLIP Price: $1.75 |
| 16 | 5PW-15361-00-00 | GAUGE, LEVEL Price: $43.99 |
