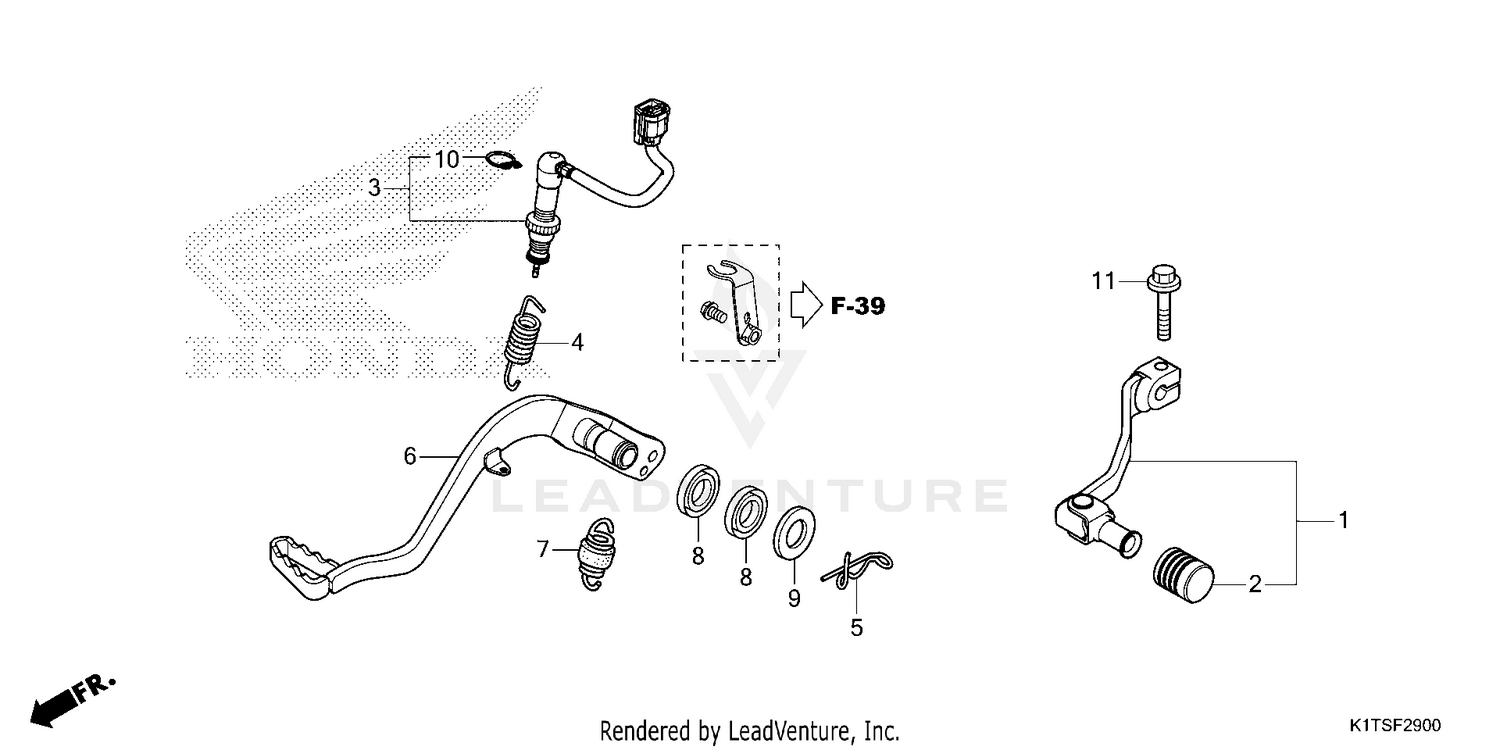

PEDAL
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 24700-K1T-EM0 | PEDAL ASSY., CHANGE Price: $20.91 |
| 2 | 24781-KZZ-J00 | RUBBER, CHANGE PEDAL Price: $3.95 |
| 3 | 35350-K1T-E11 | SWITCH ASSY., RR. STOP Price: $25.04 |
| 4 | 35357-KZZ-900 | SPRING, STOP SWITCH Price: $1.73 |
| 5 | 43950-KZZ-900 | PIN, SNAP Price: $5.89 |
| 6 | 46500-K1T-EM0 | PEDAL, RR. BRAKE Price: $19.87 |
| 7 | 46511-KZ4-J00 | SPRING ASSY., RR. BRAKE RETURN Price: $9.38 |
| 8 | 46525-KK0-003 | DUST SEAL (17X20X2.5) Price: $6.35 |
| 9 | 90439-463-000 | WASHER, PLAIN (16MM) Price: $1.80 |
| 10 | 90601-KAF-003 | CLIP, SWITCH COVER Price: $3.05 |
