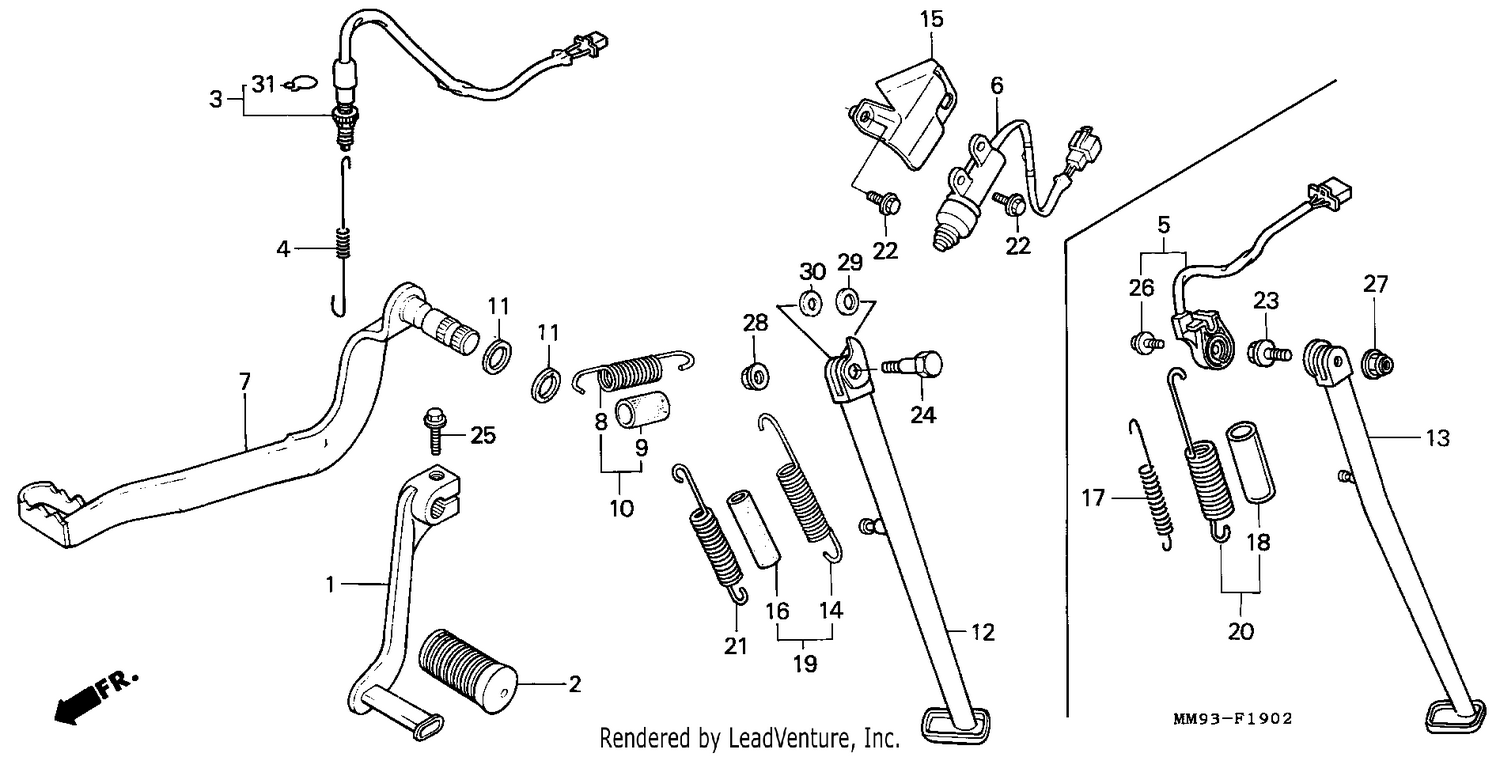

| Ref | Part Number | Description |
|---|
| 1 |
24701MM9000 |
PEDAL, GEAR CHANGE Price: Call Us |
| 2 |
24781419000 |
RUBBER, GEAR CHANGE PEDAL Price: Call Us |
| 3 |
35350MT4000 |
SWITCH ASSY., RR. STOP Price: Call Us |
| 4 |
35357KB4000 |
SPRING, STOP SWITCH Price: Call Us |
| 6 |
35710MM9831 |
SWITCH ASSY., SIDE STAND Price: Call Us |
| 7 |
46510MS6920 |
PEDAL COMP., BRAKE Price: Call Us |
| 8 |
46514KN5670 |
SPRING, BRAKE PEDAL Price: Call Us |
| 9 |
46515KS6700 |
TUBE, BRAKE PEDAL SPRING Price: Call Us |
| 11 |
46525KK0003 |
DUST SEAL, 17X20X2.5 Price: Call Us |
| 12 |
50530MM9830 |
BAR COMP., SIDE STAND Price: Call Us |
| 14 |
50535ML6670 |
SPRING, SIDE STAND Price: Call Us |
| 15 |
50535MM9830 |
COVER, SIDE STAND SWITCH Price: Call Us |
| 16 |
50536MM9670 |
TUBE Price: Call Us |
| 22 |
90103MM9830 |
BOLT, FLANGE, 6X16 Price: Call Us |
| 24 |
90108MM9670 |
SCREW, SIDE STAND PIVOT Price: Call Us |
| 25 |
90118KAZ000 |
BOLT, FLANGE, 6X20 Price: Call Us |
| 28 |
90304VM0770 |
NUT, U, 10MM Price: Call Us |
| 29 |
90501MF9710 |
WASHER, THRUST, 24X13 Price: Call Us |
| 30 |
90502MF9710 |
WASHER, THRUST, 24X10 Price: Call Us |
