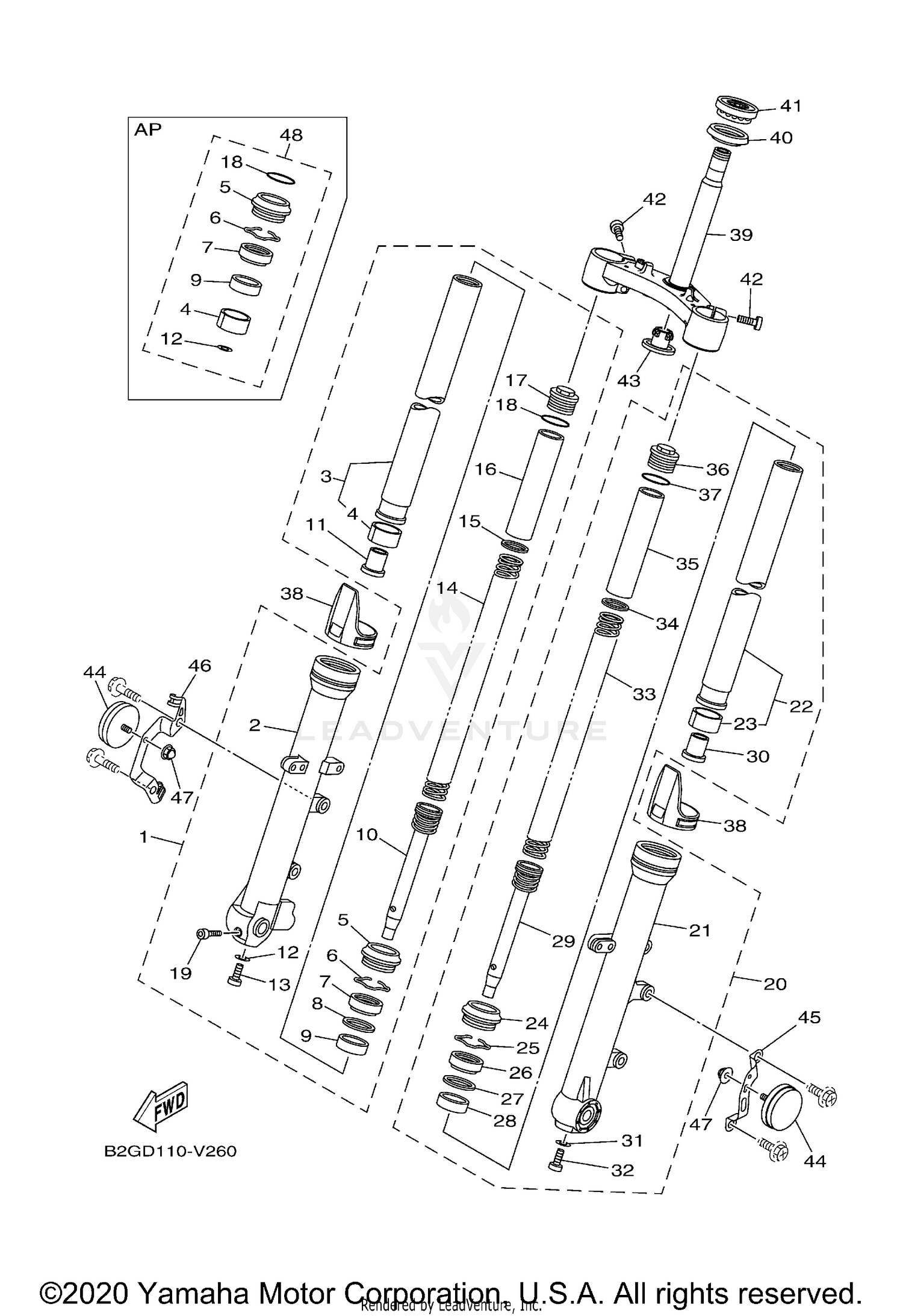

| Ref | Part Number | Description |
|---|
| 1 |
1XB-23103-03-00 |
FRONT FORK ASSY (R Price: $297.98 |
| 2 |
1XB-23136-01-00 |
TUBE, OUTER 2 Price: $313.99 |
| 3 |
1WS-23110-00-00 |
INNER TUBE COMP. 1 Price: $222.99 |
| 4 |
5BN-23171-00-00 |
PISTON, FRONT FORK Price: $24.99 |
| 5 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 6 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 7 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 8 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 9 |
4FM-23125-40-00 |
METAL, SLIDE 1 Price: $36.99 |
| 10 |
1WS-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $127.99 |
| 13 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 15 |
3EN-23149-50-00 |
WASHER, SPRING UPPER Price: $4.00 |
| 16 |
3FW-23118-00-00 |
SPACER Price: $22.99 |
| 17 |
1D0-23111-00-00 |
BOLT, CAP Price: $51.99 |
| 18 |
43F-23188-11-00 |
O-RING Price: $4.35 |
| 19 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 20 |
1WS-23102-03-00 |
FRONT FORK ASSY (L Price: $491.99 |
| 21 |
1WS-23126-01-00 |
TUBE, OUTER (L.H) Price: $362.99 |
| 22 |
1WS-23110-00-00 |
INNER TUBE COMP. 1 Price: $222.99 |
| 23 |
5BN-23171-00-00 |
PISTON, FRONT FORK Price: $24.99 |
| 24 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 25 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 26 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 27 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 28 |
4FM-23125-40-00 |
METAL, SLIDE 1 Price: $36.99 |
| 29 |
1WS-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $127.99 |
| 32 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 33 |
1WS-23141-00-00 |
SPRING, FRONT FORK Price: $42.99 |
| 34 |
3EN-23149-50-00 |
WASHER, SPRING UPPER Price: $4.00 |
| 35 |
3FW-23118-00-00 |
SPACER Price: $22.99 |
| 36 |
1D0-23111-00-00 |
BOLT, CAP Price: $51.99 |
| 37 |
43F-23188-11-00 |
O-RING Price: $4.35 |
| 38 |
1WS-2331G-00-00 |
COVER Price: $10.99 |
| 39 |
B34-23340-00-00 |
UNDER BRACKET COMP. Price: $395.99 |
| 40 |
3FV-23462-00-00 |
SEAL, STEERING Price: $26.99 |
| 41 |
93399-99932-00 |
BEARING Price: $69.99 |
| 42 |
91314-08030-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.55 |
| 43 |
4KM-23123-01-00 |
COVER, LOWER 1 Price: $15.49 |
| 44 |
4AG-85111-00-00 |
REFLECTOR, FRONT 1 Price: $16.49 |
| 45 |
1WS-85112-00-00 |
BRACKET, REFLECTOR 1 Price: $39.99 |
| 46 |
1XB-85122-00-00 |
BRACKET, REFLECTOR 2 Price: $75.99 |
| 47 |
90176-06014-00 |
NUT, CROWN Price: $8.49 |
