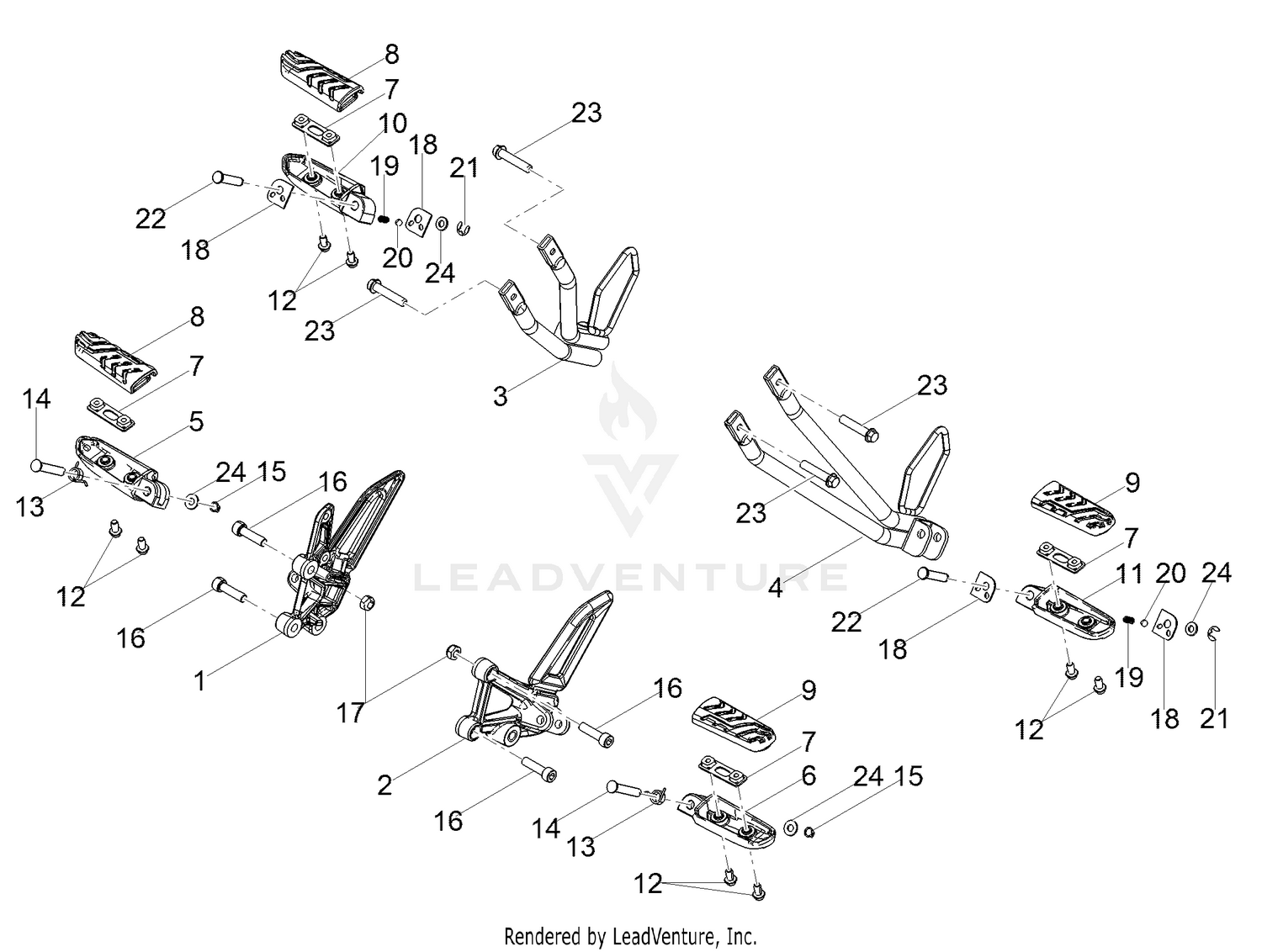

Foot rests
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2B003600 | RH foot rest support Price: $49.08 |
| 2 | 2B003601 | LH footrest support Price: $48.77 |
| 3 | 2B003991 | RH footrest support Price: $57.53 |
| 4 | 2B003990 | LH footrest support Price: $57.53 |
| 5 | AP8145034 | RH Foot rests Price: Call Us |
| 6 | AP8145035 | LH Foot rests Price: Call Us |
| 7 | GU32441210 | Plate Price: $1.73 |
| 8 | GU32443210 | Support rubber part Price: $9.09 |
| 9 | GU32443211 | Support rubber part Price: $9.09 |
| 10 | AP8145008 | Rear footrest, RH Price: $50.57 |
| 11 | AP8145009 | Rear footrest, LH Price: $50.57 |
| 12 | AP8152277 | Flanged hexagon screw Price: $0.18 |
| 13 | AP8221277 | Footrest return spring Price: $0.67 |
| 14 | AP8121567 | Pin Price: $4.18 |
| 15 | AP8152409 | Stop ring Price: $2.70 |
| 16 | AP8150107 | Hex socket screw Price: $2.70 |
| 17 | AP8150431 | Low nut Price: $0.25 |
| 18 | AP8134451 | Footrest plate Price: $1.87 |
| 19 | AP8121133 | Coil compress. spring Price: $0.39 |
| 20 | AP8101861 | Ball Price: $0.05 |
| 21 | AP8120573 | Stop ring Price: $2.70 |
| 22 | CM228401 | Footrest pin Price: $3.85 |
| 23 | AP8152290 | Screw w/ flange Price: $2.70 |
