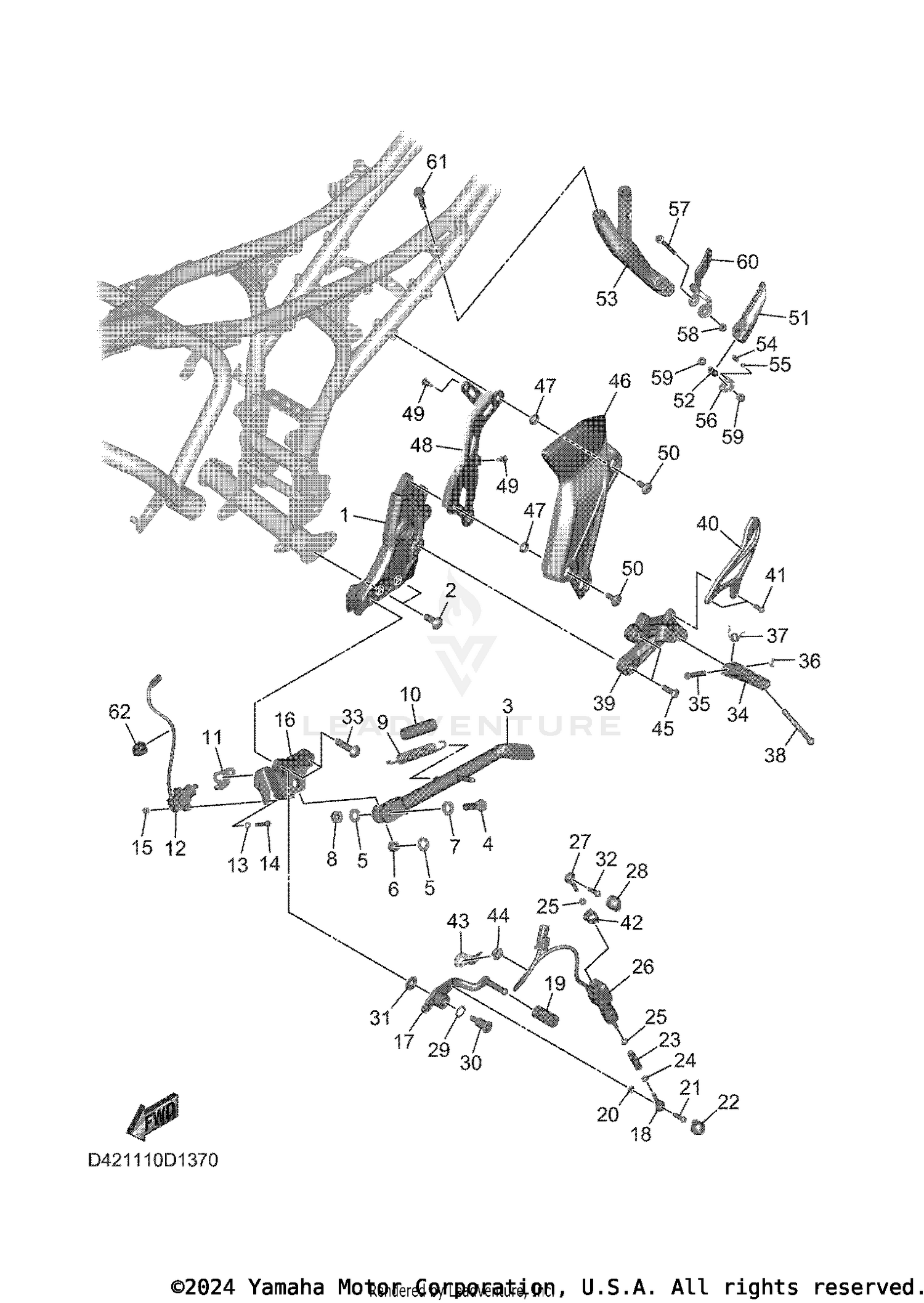

| Ref | Part Number | Description |
|---|
| 1 |
BEB-274A3-00-00 |
BRACKET, ADAPTER 1 Price: $138.99 |
| 2 |
90111-10006-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-10060-00. Price: $5.99 |
| 3 |
D42-27311-00-00 |
STAND, SIDE Price: Call Us |
| 4 |
90101-10034-00 |
BOLT Price: $9.49 |
| 5 |
90201-10075-00 |
WASHER, PLATE Price: $3.55 |
| 6 |
90387-10020-00 |
COLLAR Price: $19.49 |
| 7 |
90201-101J1-00 |
WASHER, PLATE Price: $9.49 |
| 8 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 9 |
90506-26014-00 |
SPRING TENSION Price: $9.49 |
| 10 |
90445-197J2-00 |
HOSE (L60) Price: $4.95 |
| 11 |
BEB-27315-00-00 |
LINK, SIDE STAND Price: $4.50 |
| 12 |
D42-82566-00-00 |
SWITCH, SIDE STAND Price: Call Us |
| 13 |
92907-05600-00 |
WASHER, PLATE Price: $1.00 |
| 14 |
90110-05071-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.85 |
| 15 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 16 |
D42-27321-00-00 |
BRACKET, SIDE STAND Price: $93.99 |
| 17 |
D42-18111-00-00 |
PEDAL, SHIFT Price: $61.99 |
| 18 |
5LV-18117-00-00 |
JOINT, ROD 2 Price: $36.99 |
| 19 |
5EB-18113-00-00 |
COVER, SHIFT PEDAL Price: $8.99 |
| 20 |
90387-06322-00 |
COLLAR Price: $8.49 |
| 21 |
92012-06020-00 |
BOLT, BUTTON HEAD This part replaces 90111-06098-00. Price: $9.49 |
| 22 |
4XV-18154-00-00 |
COVER, DUST Price: $8.49 |
| 23 |
D42-18115-00-00 |
ROD, SHIFT Price: Call Us |
| 24 |
90170-06228-00 |
NUT (COUNTER CLOCKWISE) Price: $10.49 |
| 25 |
95380-06700-00 |
NUT This part replaces 95304-06700-00. Price: $9.49 |
| 26 |
BLG-82480-01-00 |
SHIFT SENSOR ASSY. Price: $280.99 |
| 27 |
5LV-18116-00-00 |
JOINT, ROD 1 Price: $62.99 |
| 28 |
4XV-18154-00-00 |
COVER, DUST Price: $8.49 |
| 29 |
90206-14086-00 |
WASHER, WAVE Price: $9.49 |
| 30 |
4C8-27434-10-00 |
BOLT This part replaces 4C8-27434-01-00. Price: $24.99 |
| 31 |
90201-08053-00 |
WASHER, PLATE Price: $6.49 |
| 32 |
92012-06020-00 |
BOLT, BUTTON HEAD This part replaces 90111-06098-00. Price: $9.49 |
| 33 |
90111-10064-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $6.69 |
| 34 |
1KB-27451-00-00 |
FOOTREST Price: $86.99 |
| 35 |
91702-08040-00 |
PIN, CLEVIS This part replaces 91701-08040-00. Price: $4.85 |
| 36 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 37 |
90508-18134-00 |
SPRING, TORSION Price: $9.49 |
| 38 |
90109-08269-00 |
BOLT This part replaces 90109-08268-00. Price: $6.49 |
| 39 |
D42-27442-00-00 |
BRACKET 2 Price: $90.99 |
| 40 |
D42-27445-00-00 |
PLATE 1 Price: Call Us |
| 41 |
92017-06014-00 |
BOLT, BUTTON HEAD Price: $4.60 |
| 42 |
90464-14010-00 |
CLAMP Price: $3.65 |
| 43 |
D42-21149-00-00 |
BRACKET, BATTERY BOX Price: $7.99 |
| 44 |
90464-25009-00 |
CLAMP Price: $9.49 |
| 45 |
90109-084F7-00 |
BOLT Price: $10.49 |
| 46 |
D42-27453-00-00 |
COVER 1 Price: $50.99 |
| 47 |
90387-11012-00 |
COLLAR Price: $2.69 |
| 48 |
D42-21141-00-00 |
REINF. Price: Call Us |
| 49 |
90269-06821-00 |
RIVET Price: $2.15 |
| 50 |
90111-08095-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $3.49 |
| 51 |
B3L-27431-00-00 |
FOOTREST, REAR 1 Price: $16.49 |
| 52 |
90387-06697-00 |
COLLAR Price: $18.49 |
| 53 |
2CR-2741L-01-00 |
BRACKET 4 Price: $71.99 |
| 54 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 55 |
93501-04011-00 |
BALL Price: $9.49 |
| 56 |
D42-27437-00-00 |
WASHER, SPECIAL Price: Call Us |
| 57 |
90110-06442-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.69 |
| 58 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95607-06200-00. Price: $2.95 |
| 59 |
90387-06358-00 |
COLLAR Price: $3.90 |
| 60 |
BEB-27214-00-00 |
STOPPER Price: $34.99 |
| 61 |
95817-08035-00 |
BOLT, FLANGE This part replaces 95812-08035-00. Price: $10.49 |
