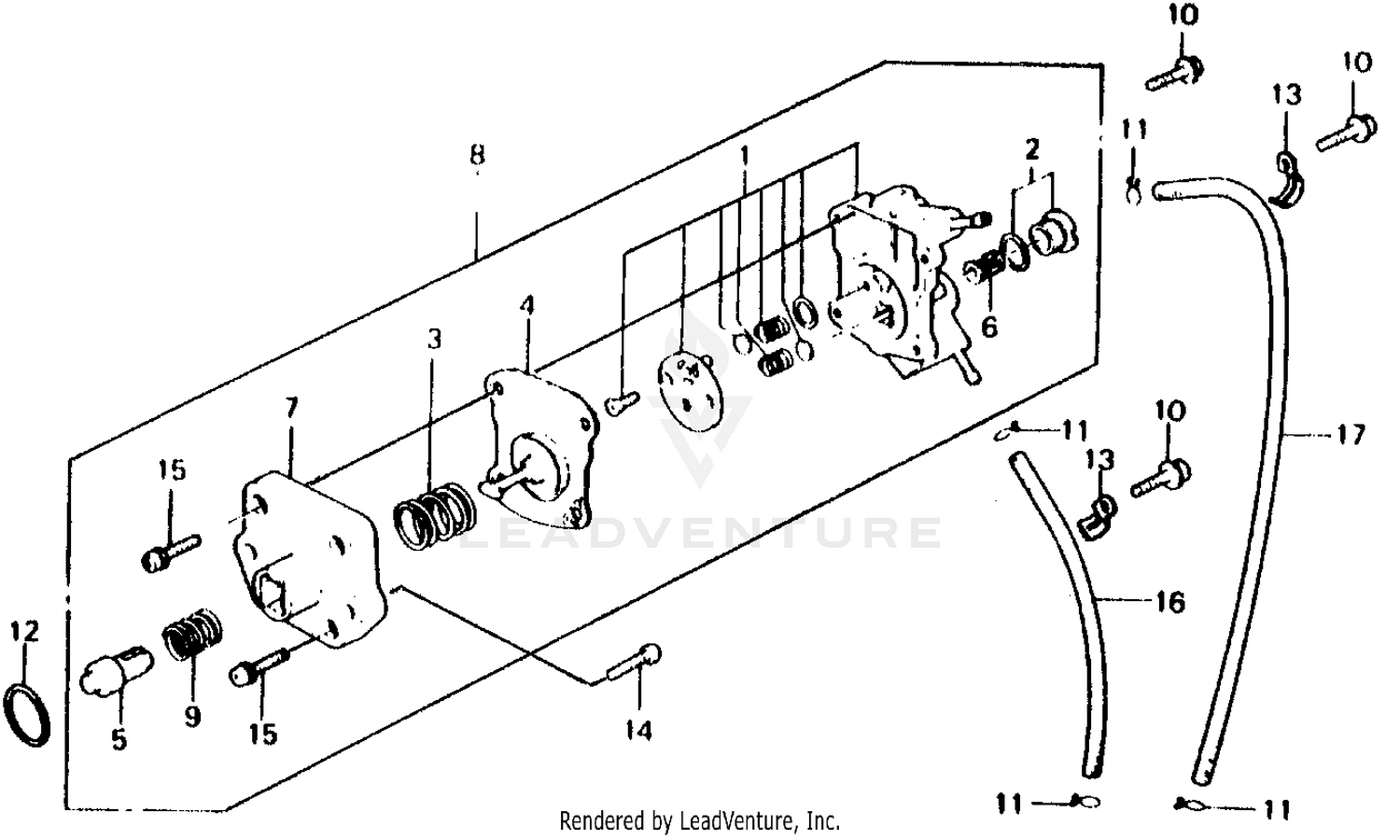

| Ref | Part Number | Description |
|---|
| 1 |
16015-935-034 |
SEE PART DETAILS - PRI; BODY SET, PUMP This part replaces 16015-935-024. Price: $60.52 |
| 2 |
16016-935-004 |
BOLT SET, HOLDING Price: $24.14 |
| 3 |
16050-935-024 |
SPRING, DIAPHRAGM Price: $4.76 |
| 4 |
16181-935-024 |
DIAPHRAGM Price: $22.84 |
| 5 |
16182-935-014 |
SEE PART DETAILS - PRI; ROD, PUSH Price: $22.20 |
| 6 |
16194-935-004 |
SCREEN, FUEL STRAINER Price: $9.46 |
| 7 |
16195-935-014 |
BODY (LOWER) Price: $36.04 |
| 8 |
16700-935-024 |
PUMP ASSY., FUEL (MSDS) Price: $127.58 |
| 9 |
16707-882-601 |
SPRING, PUSH ROD Price: $3.62 |
| 10 |
90123-881-000 |
BOLT, FLANGE (6X28) Price: $1.74 |
| 11 |
90602-921-000 |
CLIP, TUBE (B8) Price: $1.90 |
| 12 |
91351-MG7-003 |
SEE PART DETAILS - PRI; O-RING (20.8X2.4) Price: $3.42 |
| 13 |
91403-881-000 |
CLIP B, CORD Price: $7.06 |
| 14 |
93500-06020-0H |
SEE PART DETAILS - PRI; SCREW, PAN (6X20) Price: $1.24 |
| 15 |
93892-04016-08 |
SEE PART DETAILS - PRI; SCREW-WASHER (4X16) Price: $0.92 |
| 16 |
95001-45003-60M |
BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140) Price: $53.32 |
