Parts Catalog

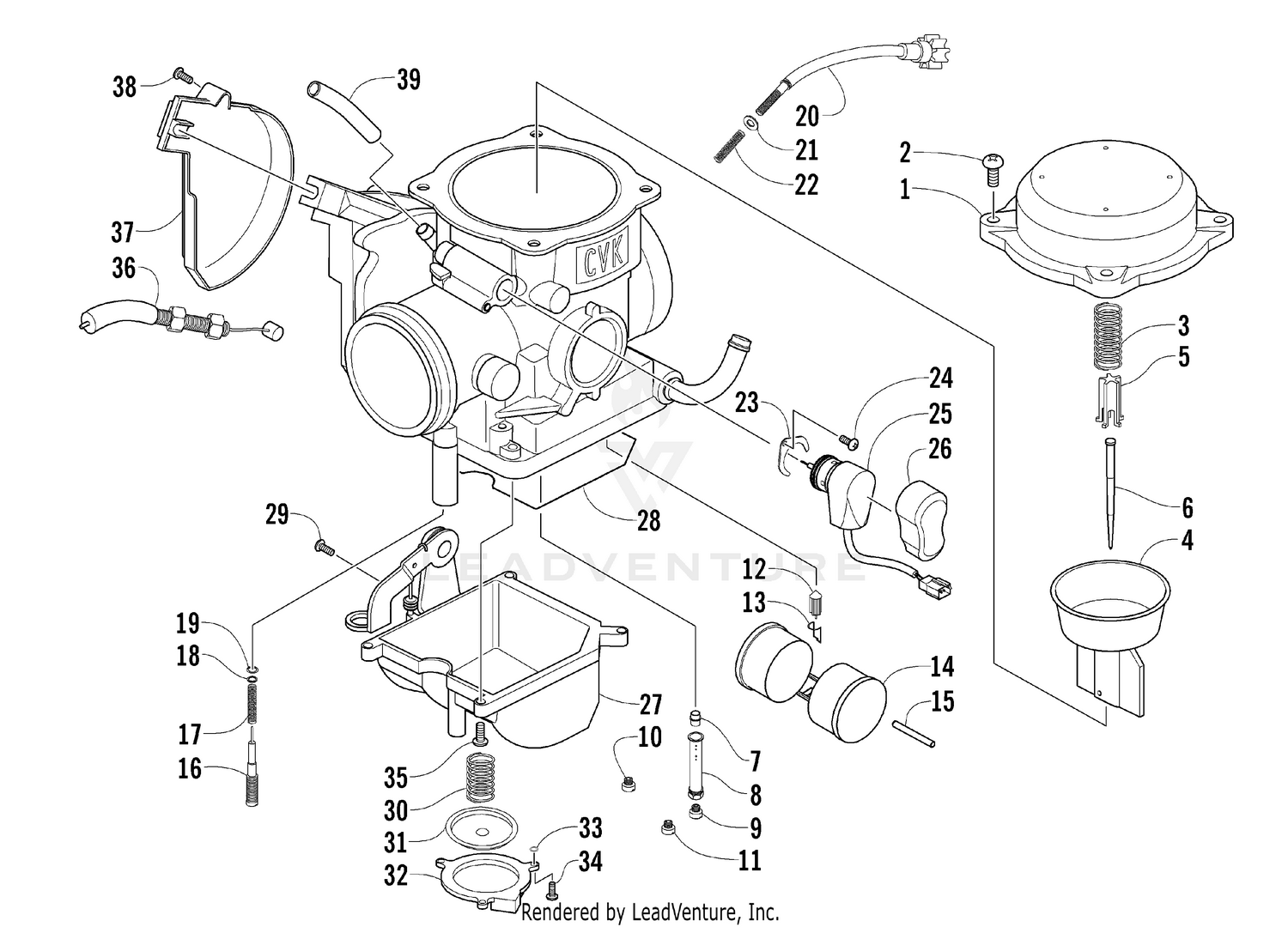

CARBURETOR [90800]

Parts (29)

Ref	Part Number	Description
1	5507-001	COVER, TOP Price: $77.95
2	5507-002	SCREW, TOP COVER Price: $0.41
3	5507-066	SPRING Price: $6.71
4	5507-099	PISTON,VACUUM Price: $143.95
5	5507-005	SPRING SEAT Price: $3.29
6	5507-236	JET NEEDLE Price: $21.47
7	5507-237	NEEDLE JET Price: $30.95
8	5507-047	HOLDER, NEEDLE- JET Price: $26.95
9	5507-043	MAIN JET 142 Price: $17.09
10	5507-070	JET, SLOW #40 Price: $21.39
11	5507-112	STARTER/MAIN JET 85 Price: $21.39
20	5507-027	STOP SCREW COMP. Price: $140.95
21	5507-028	WASHER Price: $0.41
22	5507-029	SPRING Price: $6.13
23	5507-115	PLATE Price: $18.52
24	5507-117	SCREW Price: $1.27
25	5507-204	AUTO BY-ST-ASS'Y Price: $300.95
26	5507-114	COVER Price: $70.95
28	5507-067	O-RING, FLOAT CHAMBER Price: $17.09
29	5507-050	SCREW, DRAIN Price: $3.14
30	5507-211	SPRING Price: $7.70
31	5507-197	Diaphragm Price: $45.95
32	5507-198	PUMP HOUSING Price: $24.20
33	5507-034	U RING Price: $3.14
34	5507-035	SCREW Price: $1.27
35	5507-017	SCREW Price: $8.27
36	0487-049	CABLE,THROTTLE Price: $72.95
37	5507-228	COVER Price: $10.95
38	5507-037	SCREW(TOP COVER) Price: $0.98
