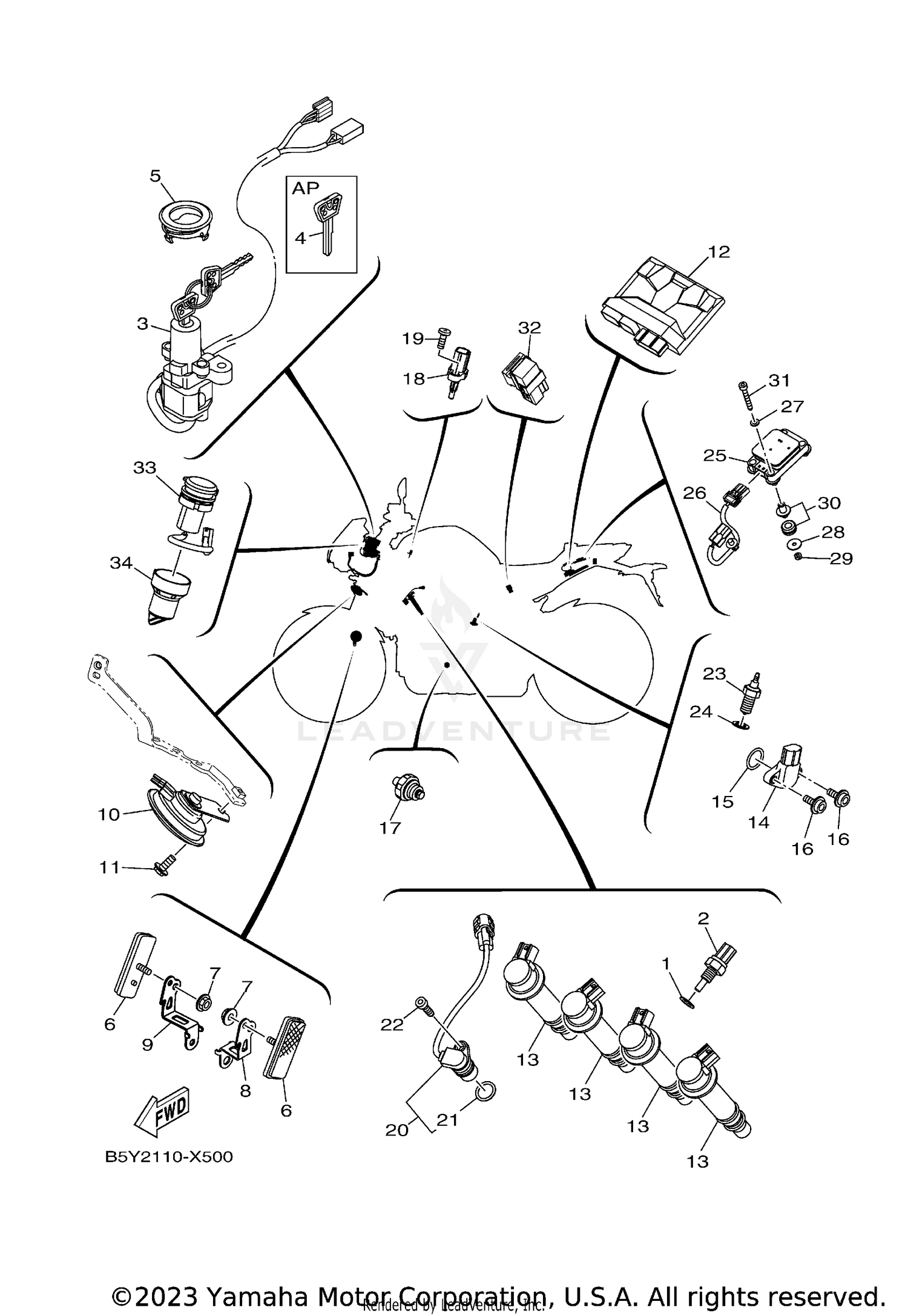

| Ref | Part Number | Description |
|---|
| 1 |
90430-10004-00 |
GASKET Price: $7.49 |
| 2 |
52B-H3591-00-00 |
THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 3 |
B5Y-82501-11-00 |
MAIN SWITCH STEERING LOCK This part replaces B5Y-82501-10-00. Price: $215.99 |
| 5 |
36P-82552-00-00 |
CAP, SWITCH Price: $16.49 |
| 6 |
11H-85110-01-00 |
REFLECTOR ASSY Price: $30.99 |
| 7 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 8 |
2CR-85112-00-00 |
BRACKET, REFLECTOR 1 Price: $24.99 |
| 9 |
2CR-85122-00-00 |
BRACKET, REFLECTOR 2 Price: $28.99 |
| 10 |
B67-83371-00-00 |
HORN Price: $76.99 |
| 11 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95812-06012-00. Price: $1.95 |
| 12 |
B5Y-8591A-11-00 |
ENGINE CONTROL UNIT ASSY This part replaces B5Y-8591A-10-00. Price: $1,030.99 |
| 13 |
B67-82310-00-00 |
IGNITION COIL ASSY Price: $146.99 |
| 14 |
2CR-85899-10-00 |
SENSOR, GEAR POSITION Price: $123.99 |
| 15 |
93210-17008-00 |
O-RING Price: $2.65 |
| 16 |
90110-05038-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 17 |
1WS-82504-01-00 |
OIL PRESSURE SWITCH ASSY This part replaces 1WS-82504-00-00. Price: $76.99 |
| 18 |
5YU-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $37.99 |
| 19 |
98902-05014-00 |
SCREW, BIND Price: $1.85 |
| 20 |
B3L-85896-01-00 |
SENSOR, CAM POSITION Price: $170.99 |
| 21 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 22 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 23 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 24 |
90430-10148-00 |
GASKET Price: $5.99 |
| 25 |
B5Y-8593A-00-00 |
INERTIAL MEASURE, UNIT ASSY Price: $477.99 |
| 26 |
B5Y-82509-00-00 |
WIRE, SUB LEAD Price: $42.99 |
| 27 |
92990-04600-00 |
WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 28 |
2CR-81162-00-00 |
WASHER, PLAIN Price: $2.25 |
| 29 |
95617-04100-00 |
NUT, U This part replaces 95602-04100-00. Price: $10.49 |
| 30 |
B7N-W8A8D-00-00 |
GROMMET AND COLLAR SET Price: $23.99 |
| 31 |
91312-04030-00 |
BOLT Price: $2.85 |
| 32 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 33 |
BD5-8254B-00-00 |
TERMINAL COMP. Price: $55.99 |
