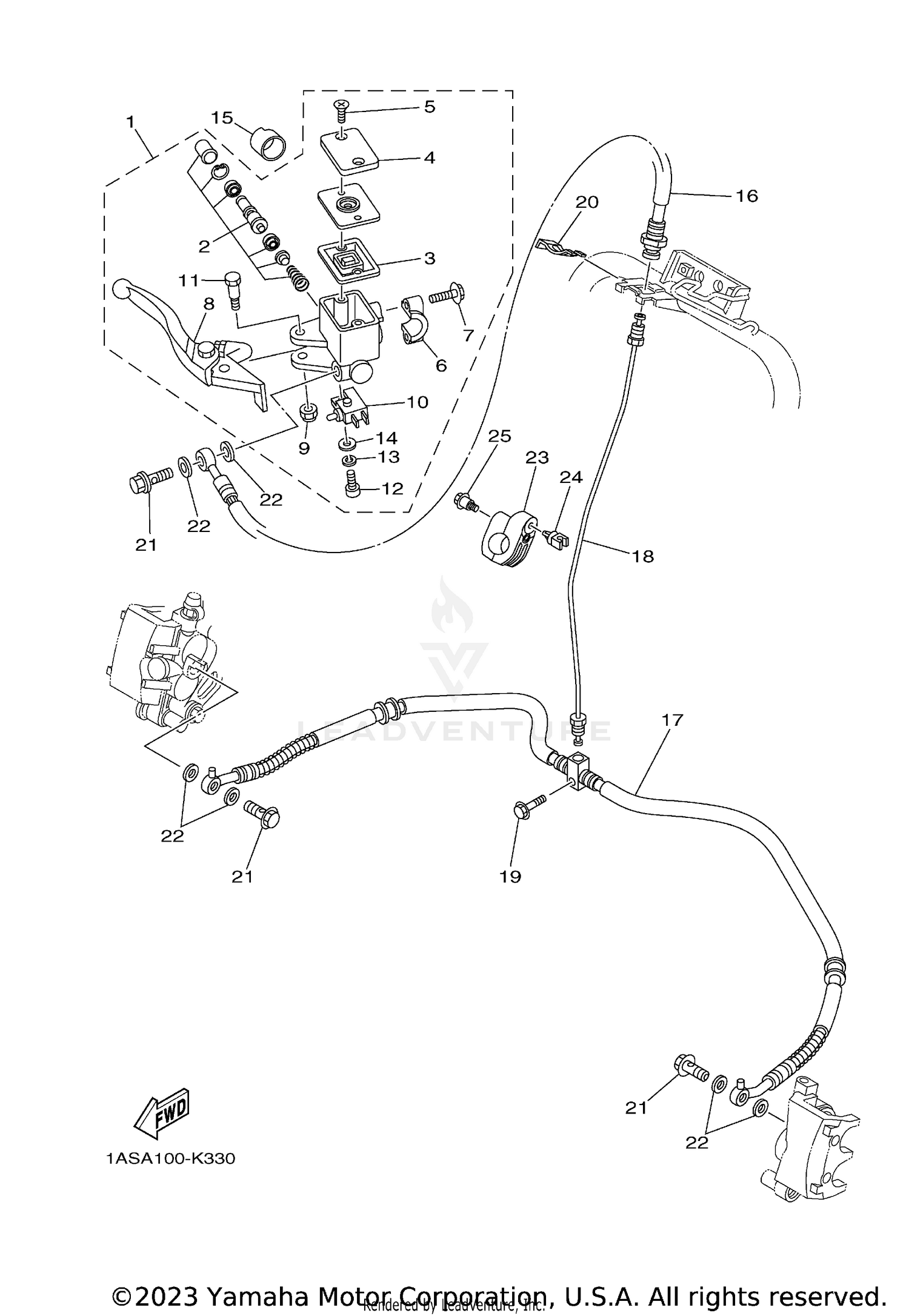

| Ref | Part Number | Description |
|---|
| 1 |
5D3-2583T-02-00 |
MASTER CYLINDER ASSY Price: $348.99 |
| 2 |
5HH-W0041-00-00 |
CYLINDER KIT, MASTER This part replaces 5D3-W0041-00-00. Price: $45.99 |
| 3 |
4TT-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $19.99 |
| 4 |
5YU-25852-00-00 |
CAP, RESERVOIR Price: $39.99 |
| 5 |
98707-04012-00 |
SCREW, FLAT HEAD This part replaces 98702-04012-00. Price: $1.85 |
| 6 |
5MV-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $22.99 |
| 7 |
5MV-25833-00-00 |
BOLT, FITTING Price: $7.49 |
| 8 |
5D3-83922-01-00 |
LEVER 2 Price: $104.99 |
| 9 |
95780-06500-00 |
NUT, FLANGE This part replaces 95701-06500-00. Price: $2.95 |
| 10 |
5D3-83980-00-00 |
FRONT STOP SWITCH ASSY Price: $78.99 |
| 11 |
3B4-2589F-30-00 |
BOLT, LEVER Price: $14.49 |
| 12 |
98580-04014-00 |
SCREW, PAN HEAD This part replaces 98502-04014-00. Price: $3.30 |
| 13 |
92990-04100-00 |
WASHER, SPRING This part replaces 92902-04100-00. Price: $0.95 |
| 14 |
92990-04600-00 |
WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 15 |
1UY-26259-00-00 |
COLLAR Price: $21.99 |
| 16 |
1PE-F5872-01-00 |
HOSE, BRAKE 1 This part replaces 1PE-F5872-00-00. Price: $21.99 |
| 17 |
5TG-25873-21-00 |
HOSE, BRAKE 2 This part replaces 5TG-25873-20-00. Price: $143.99 |
| 18 |
1PE-F5871-00-00 |
PIPE, BRAKE Price: $15.49 |
| 19 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95822-06025-00. Price: $1.75 |
| 20 |
2GU-25866-00-00 |
CIRCLIP Price: $10.99 |
| 21 |
90401-10015-00 |
BOLT, UNION Price: $12.49 |
| 22 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 23 |
1AS-25522-01-00 |
HOLDER This part replaces 1AS-25522-00-00. Price: $7.49 |
| 24 |
5KM-81677-00-00 |
CLAMP 1 Price: $7.49 |
